Driver Memory Seat Module C341c
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

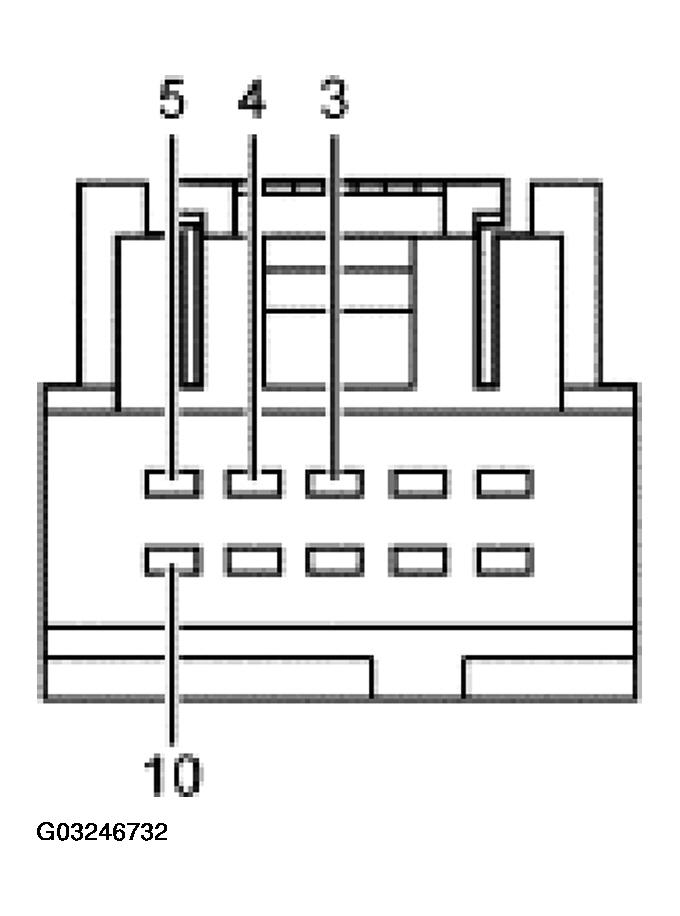

DRIVER MEMORY SEAT MODULE C341C PIN CIRCUIT REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 3 | CKT 268 (BK/OG) Position 2 input circuit from memory set switch | Continuity to memory set switch, less than 5 ohms. |
| 4 | CKT 267 (BN/LG) Position 1 input circuit from memory set switch | Continuity to memory set switch, less than 5 ohms. |
| 5 | CKT 270 (BN/OG) Memory set input circuit from memory set switch | Continuity to memory set switch, less than 5 ohms. |
| 10 | CKT 272 (WH/OG) Illumination output circuit from driver seat module (DSM) to memory set switch | Voltage from DSM to memory set switch |
