Ignition switch (11572)

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

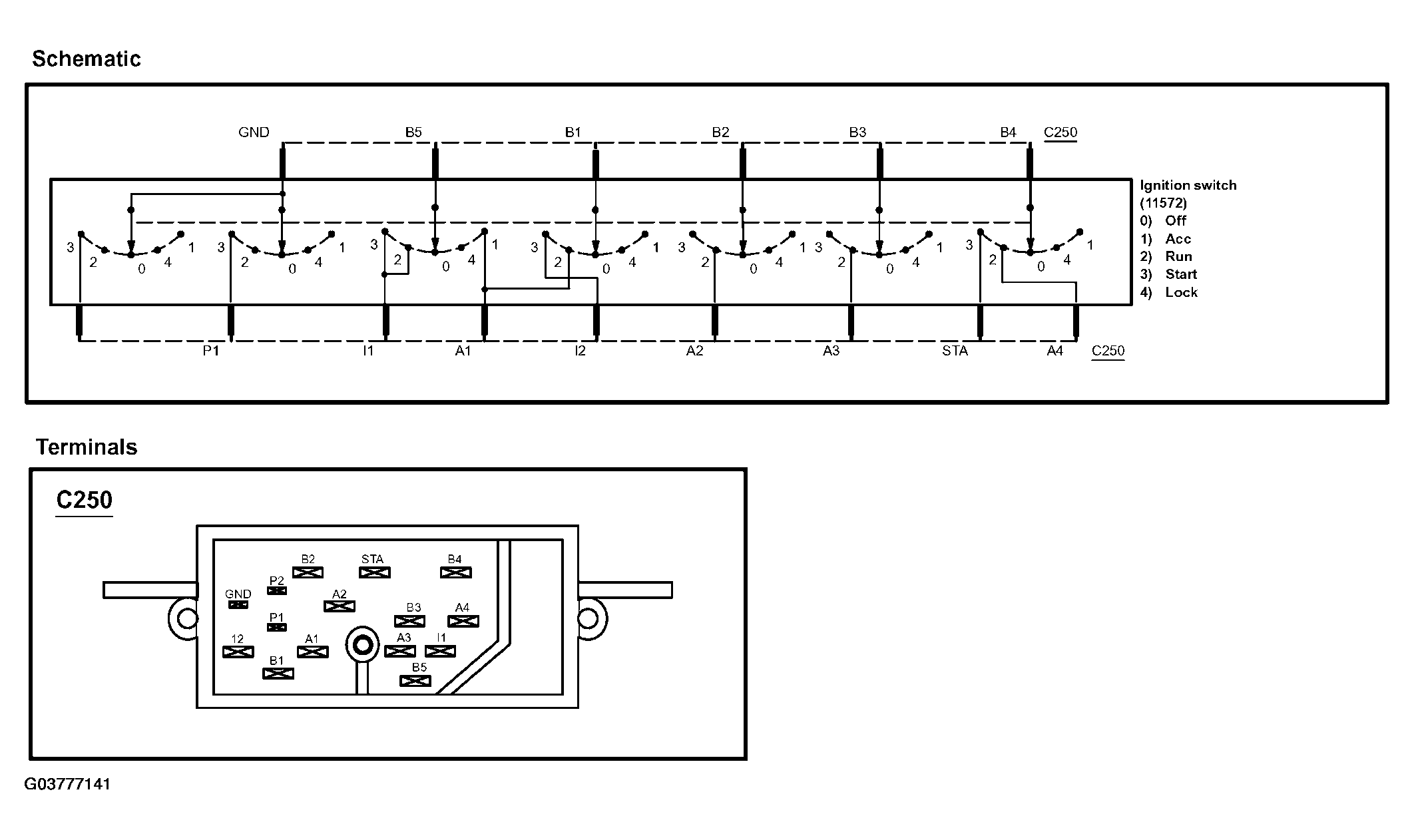

Fig 1: Testing Ignition Switch (1 Of 2)

Courtesy of FORD MOTOR CO.

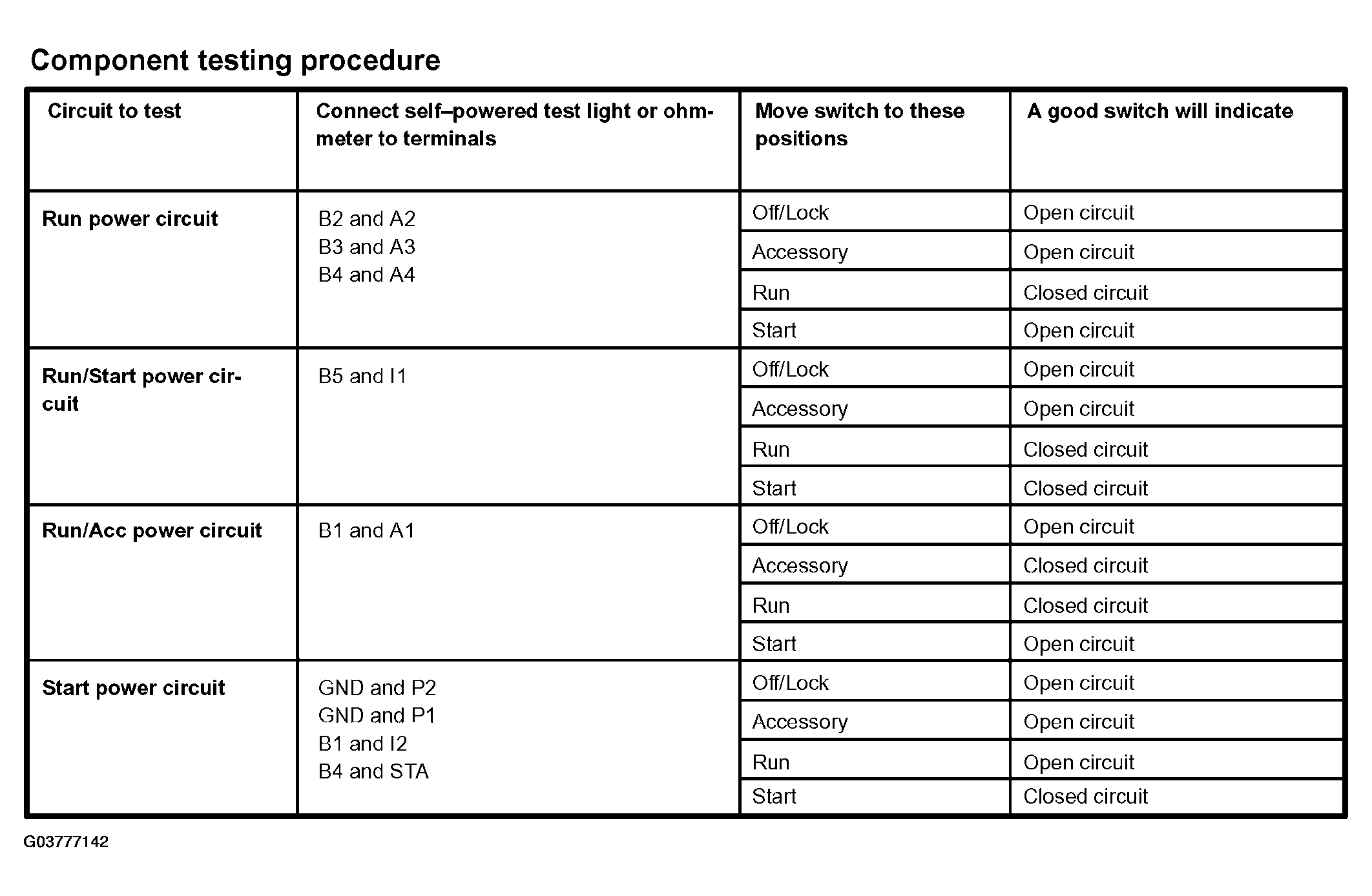

Fig 2: Testing Ignition Switch (2 Of 2)

Courtesy of FORD MOTOR CO.
