Engine Support Insulators: Installation

  1. To install, reverse the removal procedure.

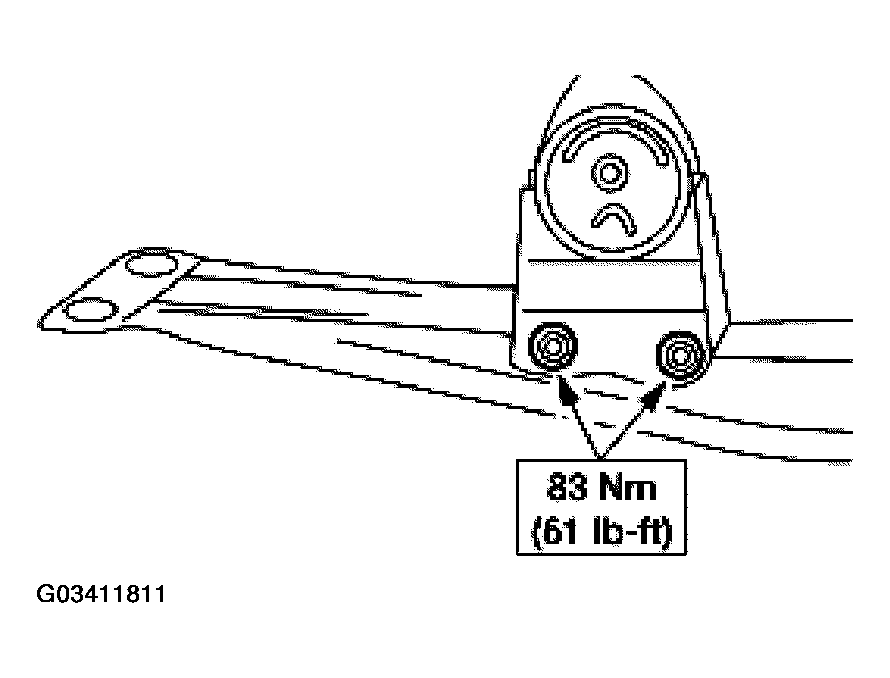

    Fig 1: Installing LH Engine Support Insulator
    G03411811Courtesy of FORD MOTOR CO.

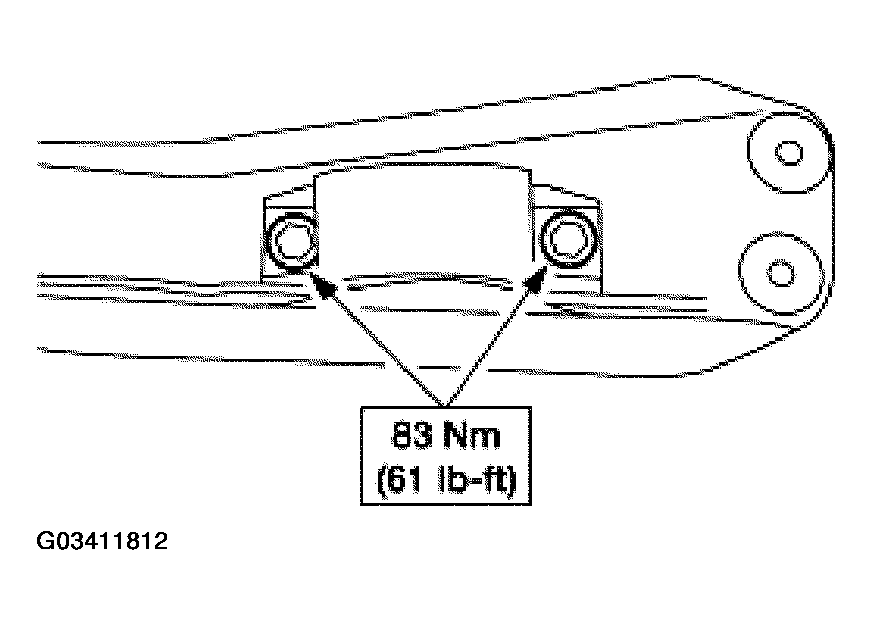

    Fig 2: Identifying Bolt
    G03411812Courtesy of FORD MOTOR CO.

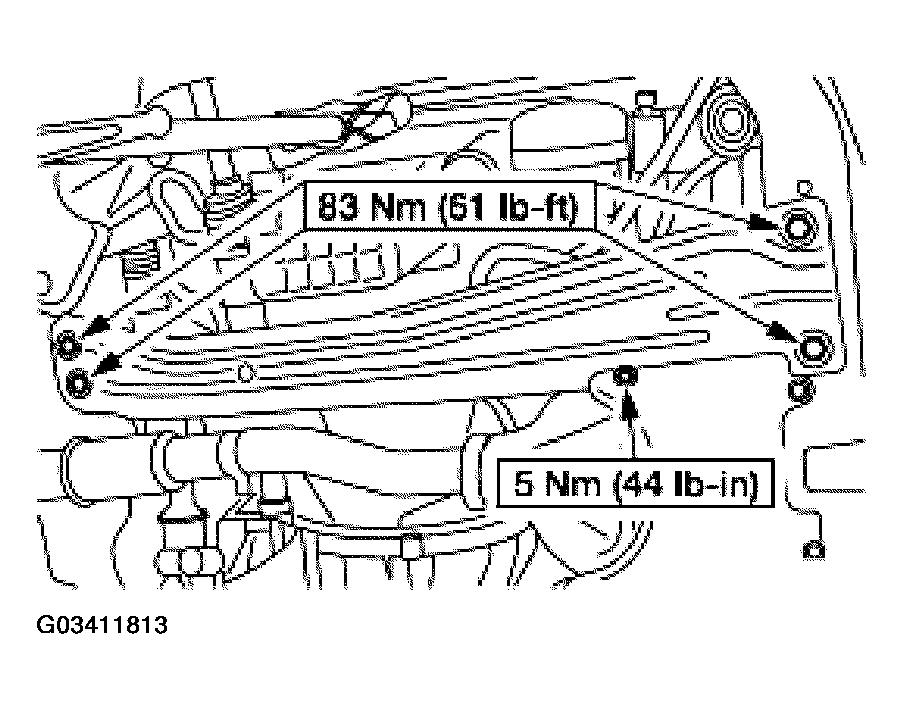

    Fig 3: Installing Transverse Member
    G03411813Courtesy of FORD MOTOR CO.

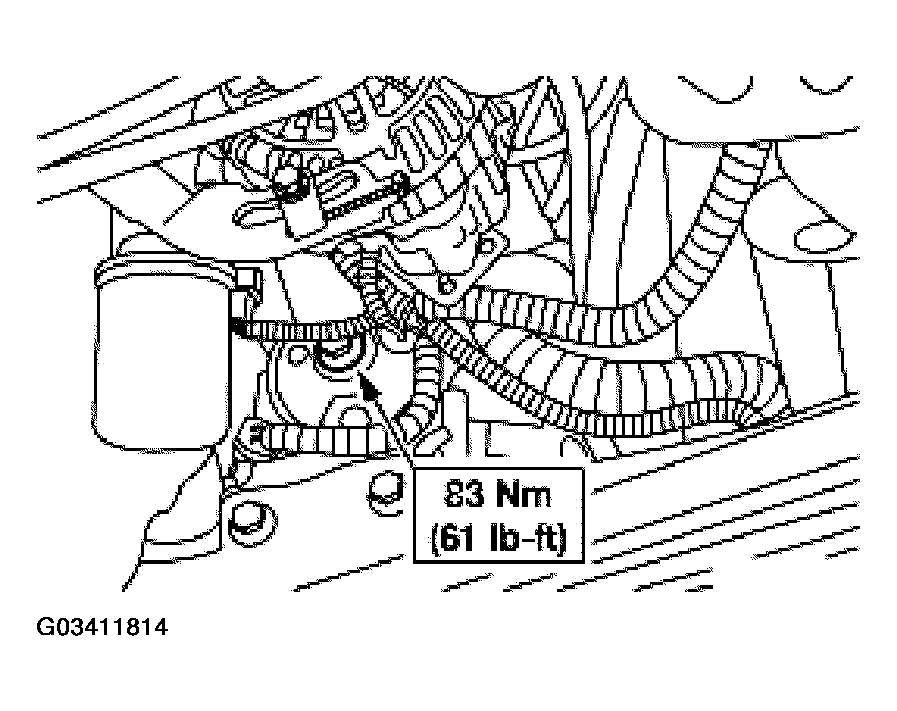

    Fig 4: Installing LH Engine Support Insulator
    G03411814Courtesy of FORD MOTOR CO.

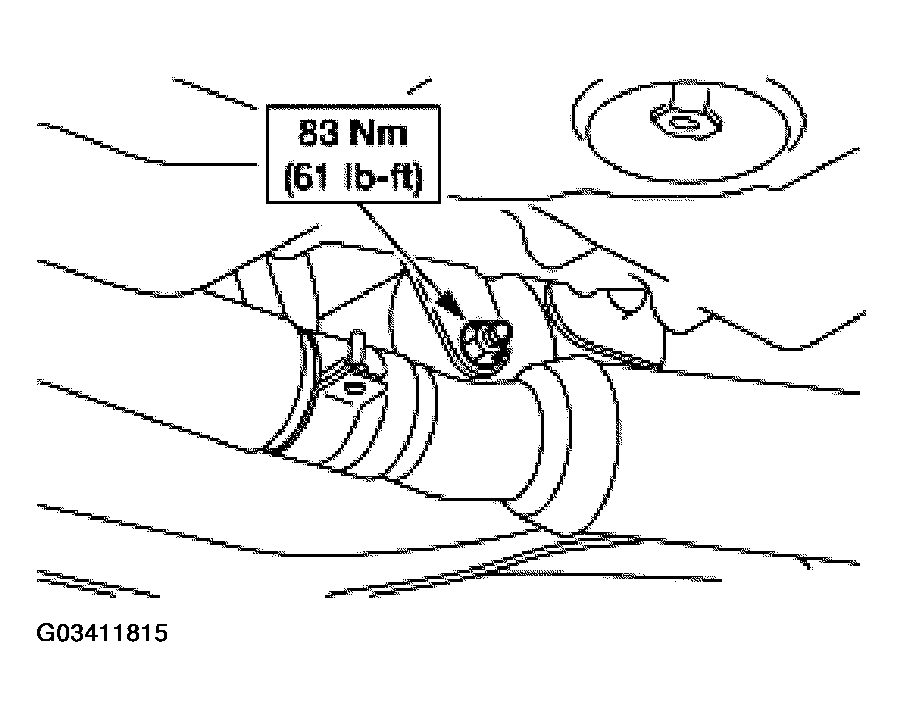

    Fig 5: Installing RH Engine Support Insulator
    G03411815Courtesy of FORD MOTOR CO.
