Pinpoint Test Pc: Check Communications With The All Modules

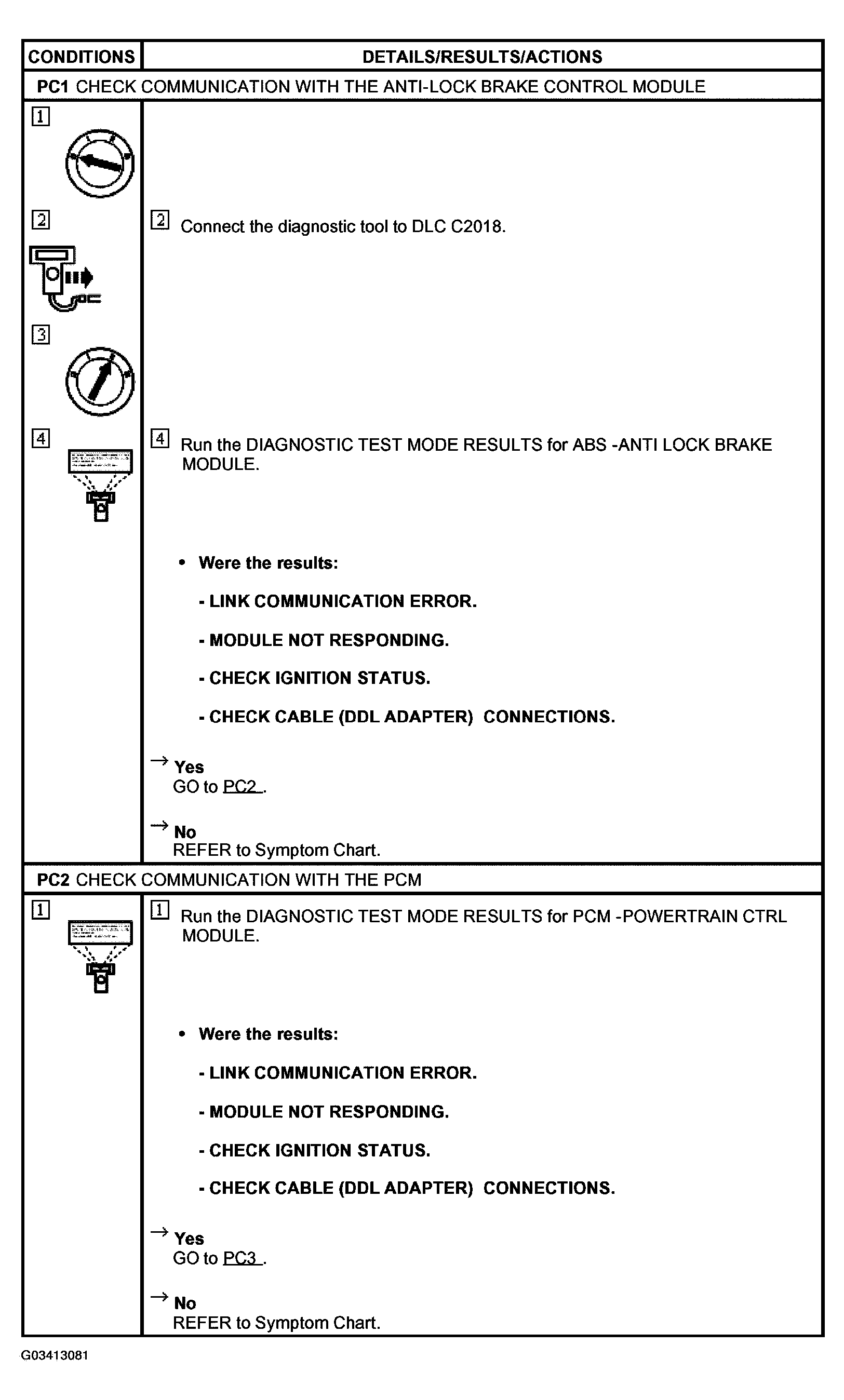

Fig 1: Pinpoint Test PC: Check Communications With All Modules (PC1-PC2)

Courtesy of FORD MOTOR CO.

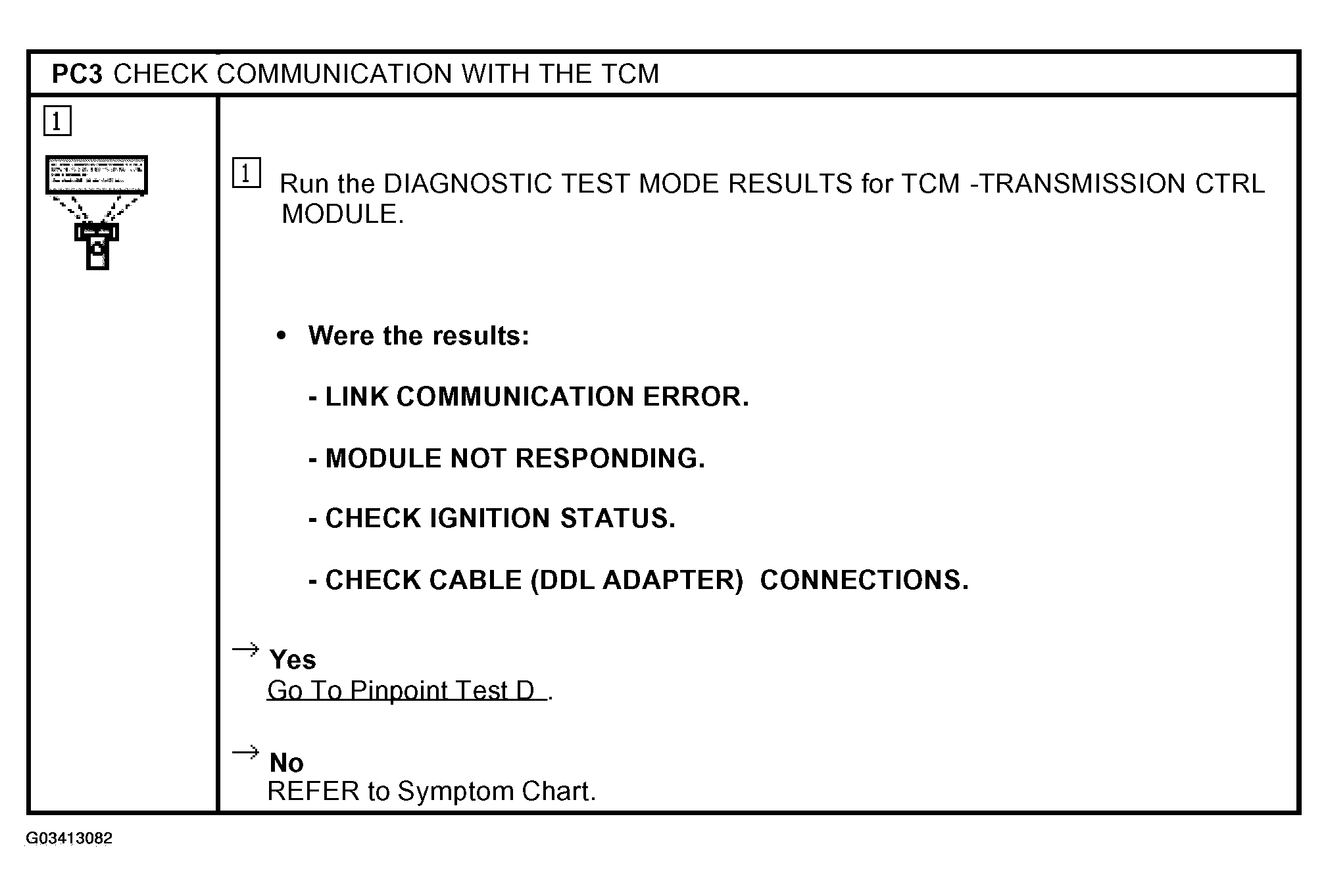

Fig 2: Pinpoint Test PC: Check Communications With All Modules (PC3)

Courtesy of FORD MOTOR CO.
