Seat-Cushion, Front Bucket: Disassembly

  1. Remove the front bucket seat cushion. For additional information, refer to SEAT-CUSHION, FRONT BUCKET .
  2. Remove the hog rings.

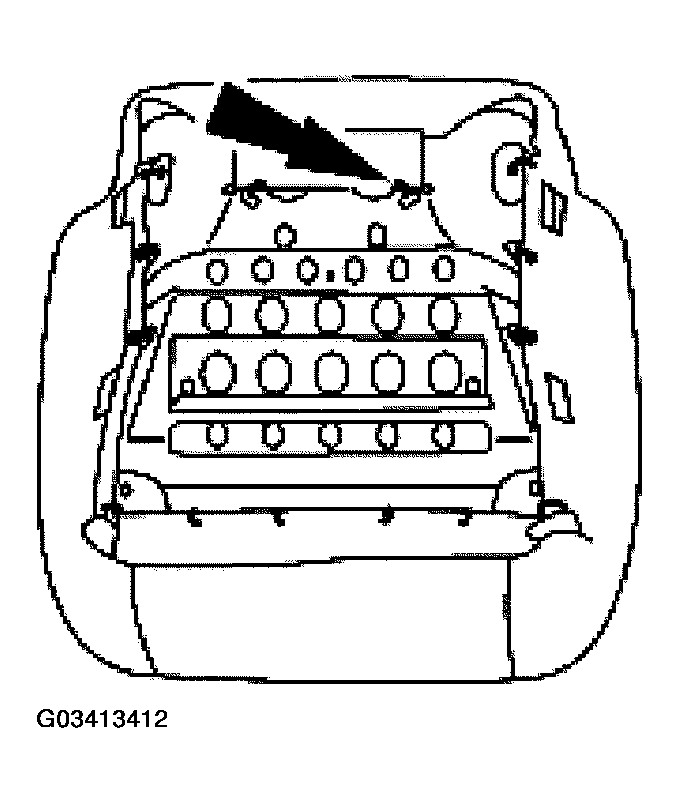

    Fig 1: Removing Hog Rings
    G03413412Courtesy of FORD MOTOR CO.
  3. Remove the seat cushion frame from the seat cushion and foam.
    4. CAUTION: Use care when separating the seat cushion trim cover from the hook and loop strips, or the hook and loop strips may be torn from the seat cushion foam.
  4. On leather seats, pull back the trim cover to the hog rings.
    • Disconnect the seat cushion trim cover from the hook and loop strips.
  5. On leather seats, remove the trim cover.
    • Remove the hog rings.
