Seat Backrest-Front Bucket: Removal

Remove the front bucket seat. For additional information, refer to SEAT-FRONT BUCKET .
Unhook the armrest trim cover.

Fig 1: Unhooking Armrest Trim Cover
Courtesy of FORD MOTOR CO.
Remove the armrest.
1. Remove the E-clip.
2. Remove the armrest.

  Fig 2: Removing Armrest
  Courtesy of FORD MOTOR CO.
Remove the cable tie.

Fig 3: Removing Cable Tie
Courtesy of FORD MOTOR CO.
Remove the lumbar support adjuster.
1. Remove the screws.
2. Remove the lumbar support adjuster.

  Fig 4: Removing Lumbar Support Adjuster
  Courtesy of FORD MOTOR CO.
Unhook the trim cover J-clip.

Fig 5: Unhooking Trim Cover J-Clip
Courtesy of FORD MOTOR CO.
Position the trim cover to expose the bolts.

Fig 6: Identifying Position Of Trim Cover To Expose Bolts
Courtesy of FORD MOTOR CO.

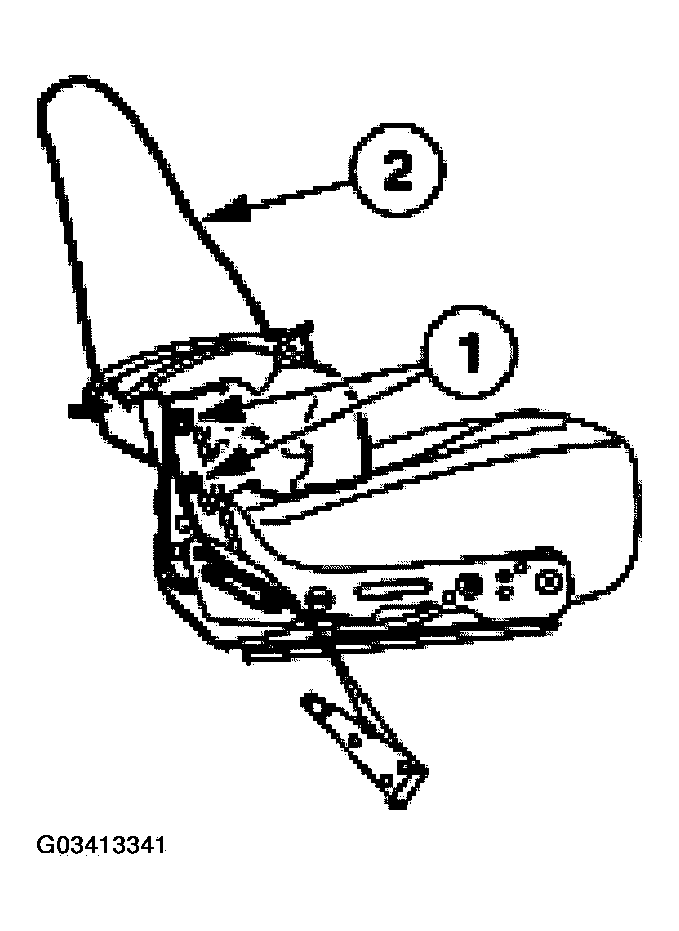

Remove the seat back.
1. Remove the bolts.
2. Remove the seat back.

  Fig 7: Removing Seat Back
  Courtesy of FORD MOTOR CO.
