Seat Backrest-Second Row Bench: Removal

Remove the second row bench seat. For additional information, refer to SEAT-SECOND ROW .
Open the armrest trim cover.

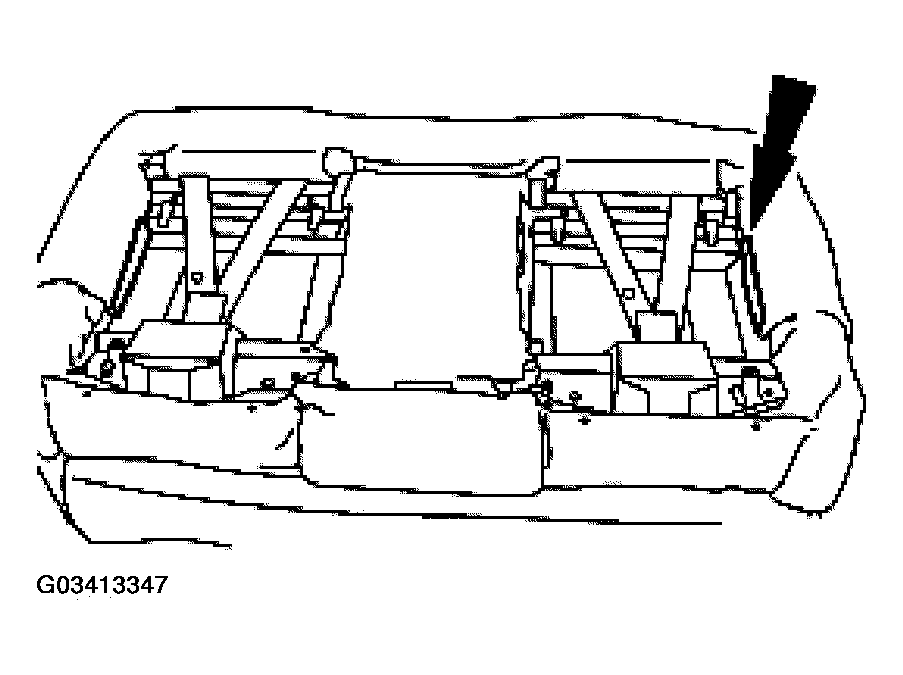

Fig 1: Removing Armrest Trim Cover
Courtesy of FORD MOTOR CO.
Remove the armrest.
1. Remove the E-clip.
2. Remove the armrest.

  Fig 2: Removing Armrest
  Courtesy of FORD MOTOR CO.
Remove the pin-type retainers on the bottom of the seat back trim panel.

Fig 3: Removing Pin-Type Retainers On Bottom Of Seat Back Trim Panel
Courtesy of FORD MOTOR CO.
Remove the seat back trim panel.
1. Remove the pin-type retainers.
2. Remove the seat back trim panel.

  Fig 4: Removing Seat Back Trim Panel
  Courtesy of FORD MOTOR CO.
Unhook the seat back trim cover J-clip.

Fig 5: Unhooking Seat Back Trim Cover J-Clip
Courtesy of FORD MOTOR CO.
Remove the seat back.
1. Remove the four bolts.
2. Remove the seat back.

  Fig 6: Removing Seat Back
  Courtesy of FORD MOTOR CO.
