Seat Backrest-Third Row Bench: Removal

Remove the third row bench. For additional information, refer to SEAT-THIRD ROW BENCH .
Remove the seat back trim panel.
1. Remove the pin-type retainers.
2. Remove the seat back trim panel.

  Fig 1: Removing Seat Back Trim Panel
  Courtesy of FORD MOTOR CO.

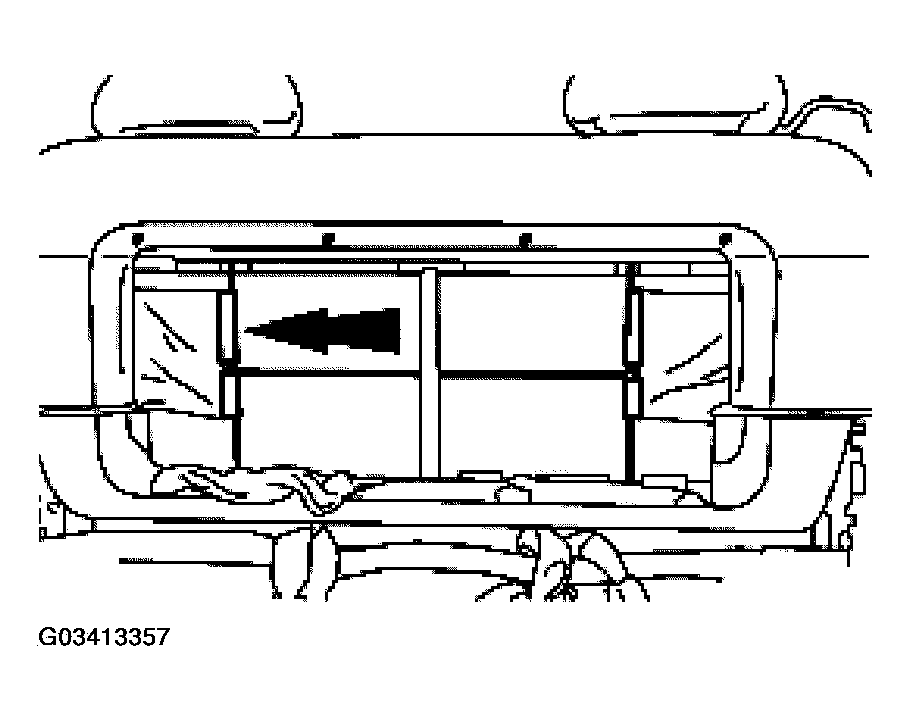

Unhook the trim cover J-clips for the upper side flaps.

Fig 2: Unhooking Trim Cover J-Clips For Upper Side Flaps
Courtesy of FORD MOTOR CO.

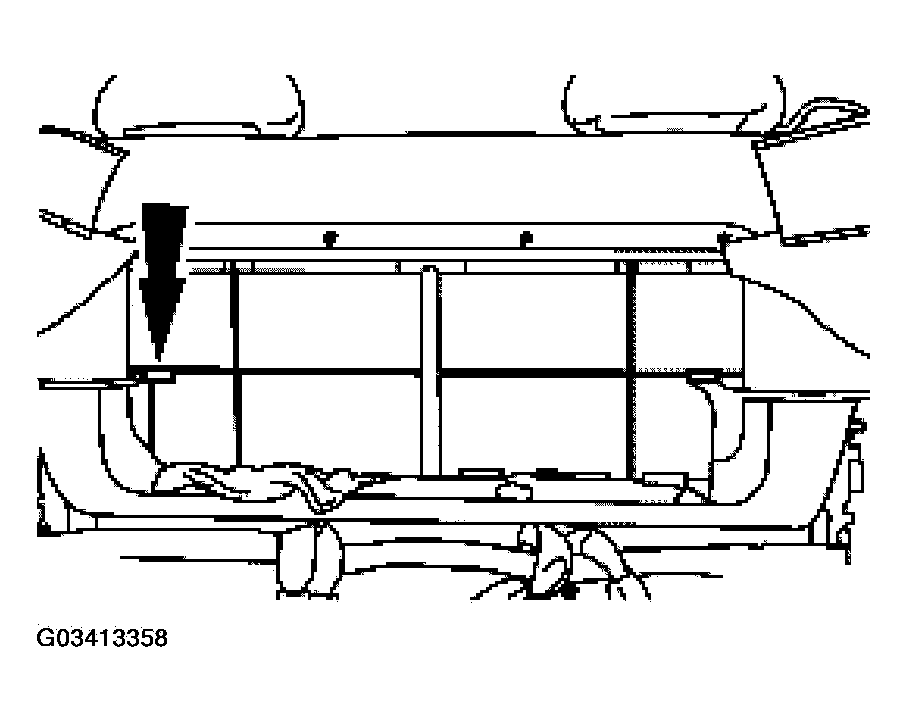

Unhook the trim cover J-clips for the lower side flaps.

Fig 3: Unhooking Trim Cover J-Clips For Lower Side Flaps
Courtesy of FORD MOTOR CO.

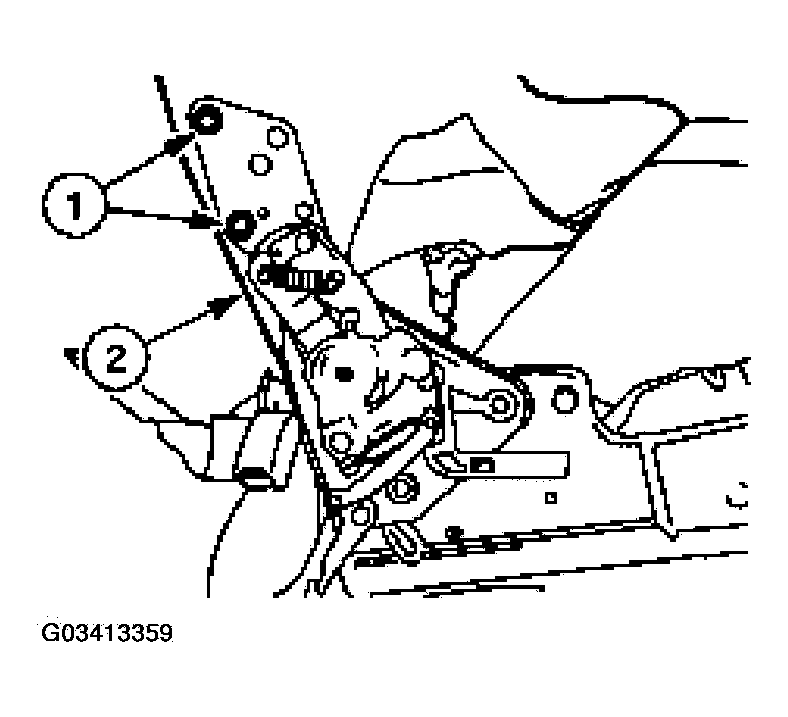

Remove the seat back.
1. Remove the four bolts.
2. Remove the seat back.

  Fig 4: Removing Seat Back
  Courtesy of FORD MOTOR CO.
