Seat-Front Bucket: Removal

  1. Remove the outboard front bucket seat riser trim panel.
    1. Remove the four pin-type connectors.
    2. Remove the seat riser trim cover.
      Fig 1: Removing Seat Riser Trim Cover
      G03413361Courtesy of FORD MOTOR CO.
    3. Remove the safety belt buckle bolt cover.

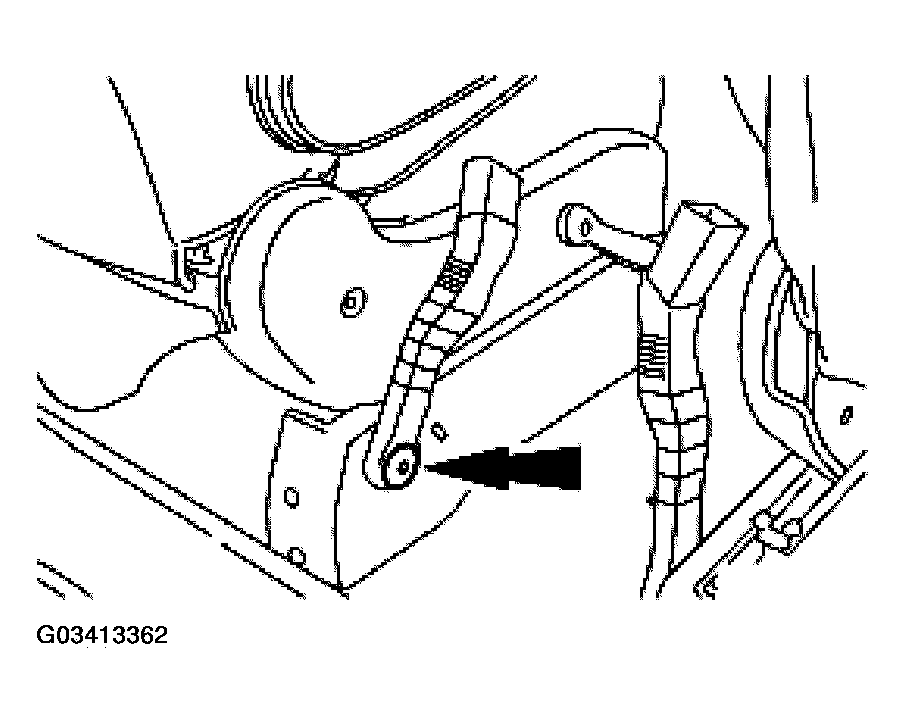

      Fig 2: Removing Safety Belt Buckle Bolt Cover
      G03413362Courtesy of FORD MOTOR CO.
    4. Position the safety belt buckle aside.
      1. Remove the bolt.
      2. Position the safety belt buckle aside.

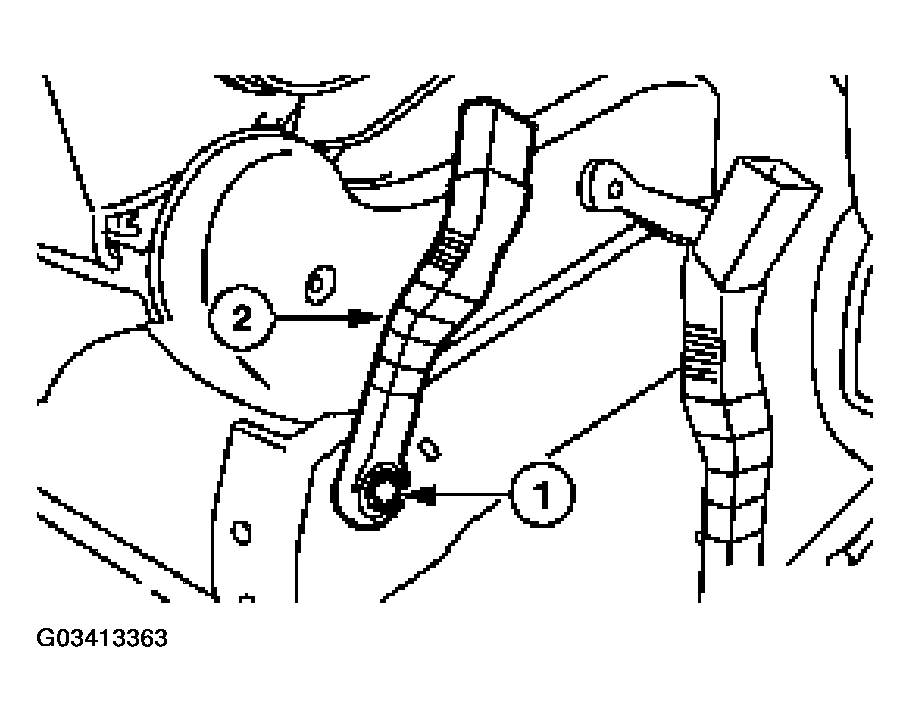

        Fig 3: Identifying Position Of Safety Belt Buckle
        G03413363Courtesy of FORD MOTOR CO.
      5. NOTE: If equipped, it may be necessary to reposition the lumbar support adjuster handle.
      Fig 4: Removing Inboard Trim Cover
      G03413364Courtesy of FORD MOTOR CO.
    5. Remove the inboard front bucket seat riser trim cover.
      1. Remove the four pin-type connectors.
      2. Remove the inboard trim cover.
  2. Position the seat forward.
  3. Remove the seat track rear bolts.
    Fig 5: Removing Seat Track Rear Bolts
    G03413365Courtesy of FORD MOTOR CO.
  4. Position the seat rearward.
  5. If equipped with power seats, disconnect the battery ground cable.
  6. If equipped, disconnect the power seat module to seat electrical connector.

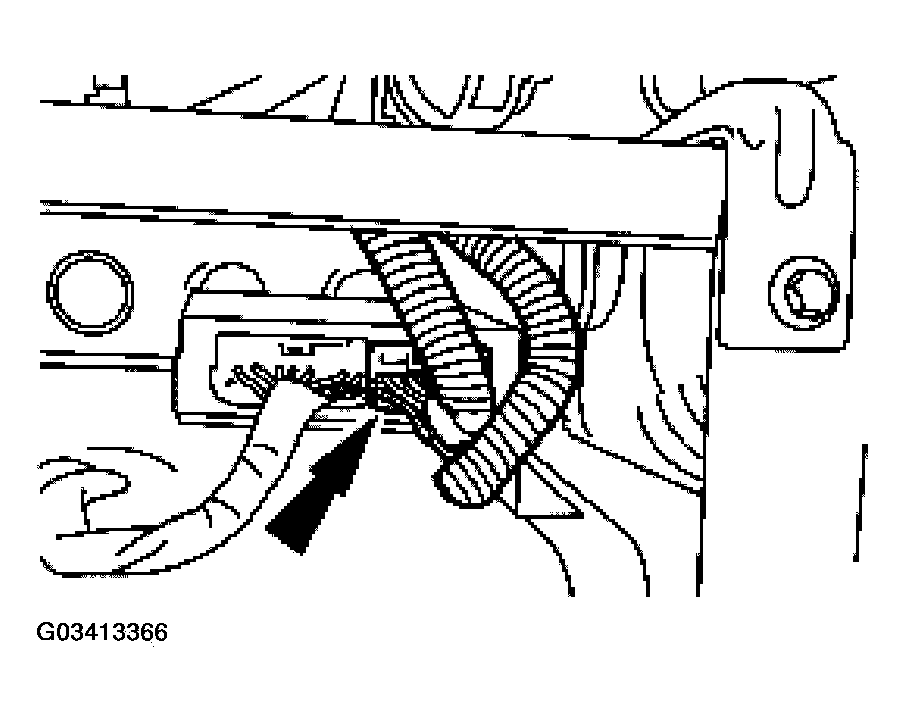

    Fig 6: Disconnecting Power Seat Module To Seat Electrical Connector
    G03413366Courtesy of FORD MOTOR CO.
  7. Remove the front bucket seat.
    1. Remove the seat track front bolts.
    2. Remove the front bucket seat.

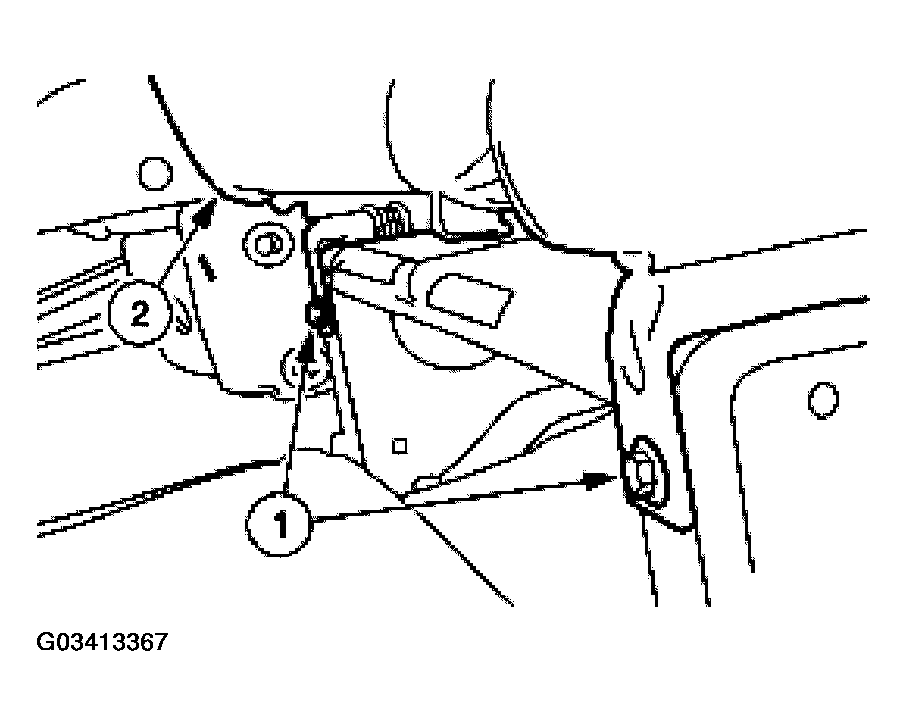

      Fig 7: Removing Front Bucket Seat
      G03413367Courtesy of FORD MOTOR CO.
