Module -Wiper/Washer Amplifier Assembly: Removal

    CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.
  1. Disconnect the battery ground cable.
  2. Remove the wiper/washer amplifier assembly.
    1. Disconnect the electrical connectors.
    2. Remove the bolts.

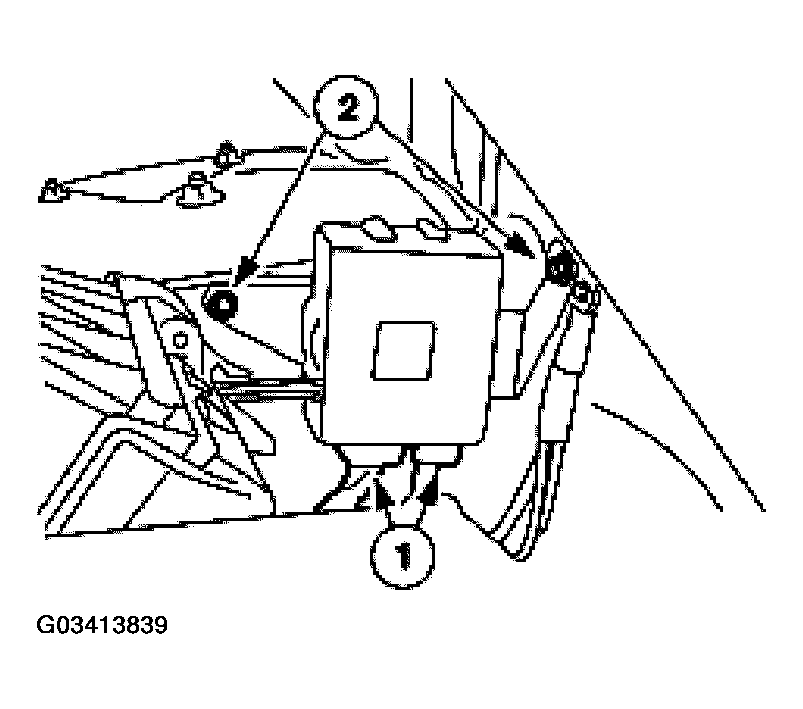

      Fig 1: Disconnecting Electrical Connectors
      G03413839Courtesy of FORD MOTOR CO.
