Pivot Arm -Rear: Removal

  1. Remove the rear pivot arm.
    1. Disconnect the rear washer hose.
    2. Depress the locking clip on the base of the rear pivot arm.
    3. Pull up and remove the rear pivot arm.

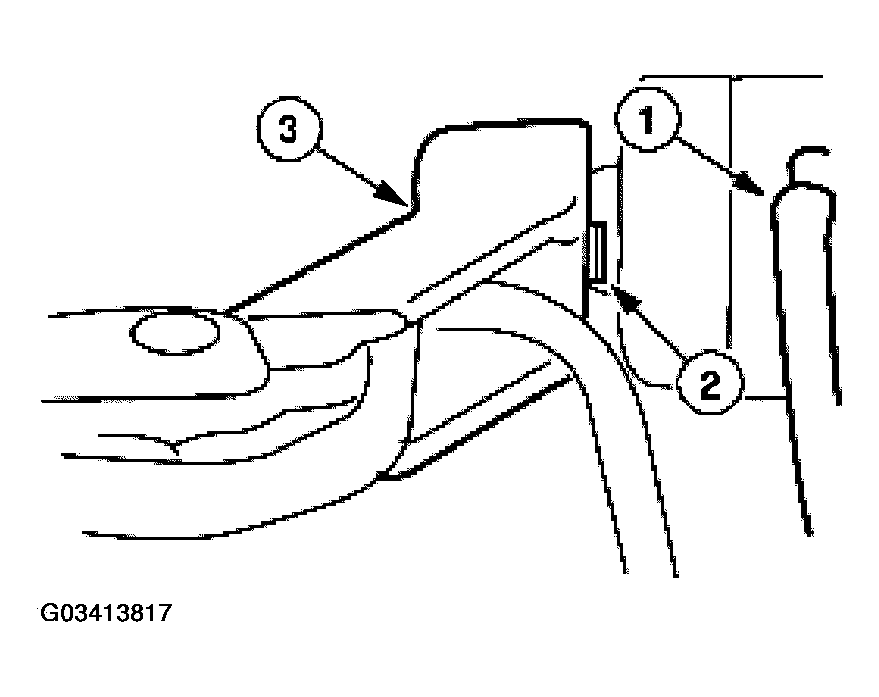

      Fig 1: Removing Rear Pivot Arm
      G03413817Courtesy of FORD MOTOR CO.
