Sensor Indicator -Front: Installation

  1. Using the special tool, install the anti-lock brake sensor indicator ring.
    Fig 1: Installing Anti-Lock Brake Sensor Indicator Ring Using Special Tool
    G03411012Courtesy of FORD MOTOR CO.
  2. Using the special tool, install the anti-lock brake sensor indicator ring dust shield.

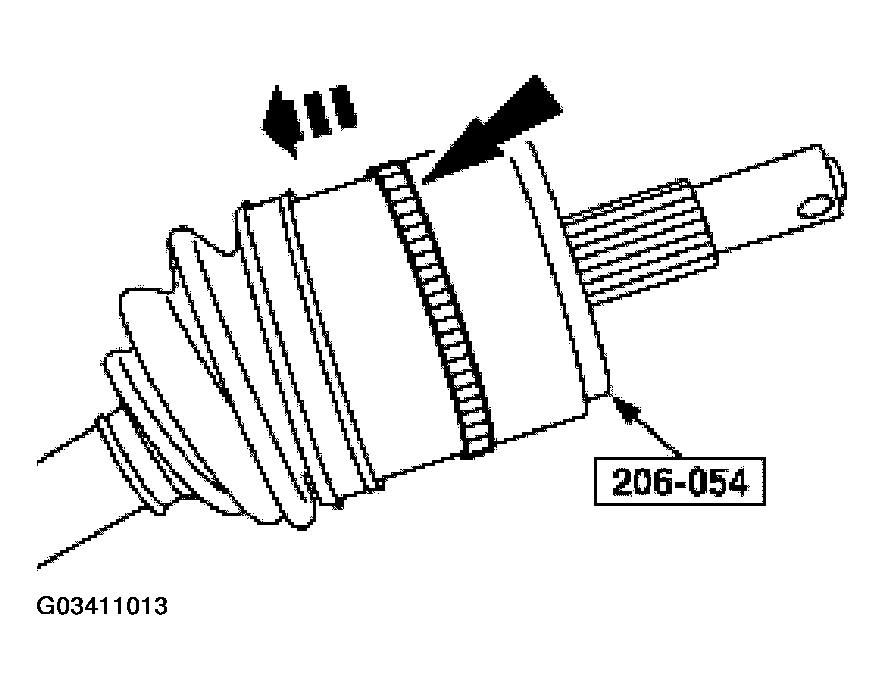

    Fig 2: Installing Anti-Lock Brake Sensor Indicator Ring Dust Shield Using Special Tool
    G03411013Courtesy of FORD MOTOR CO.
