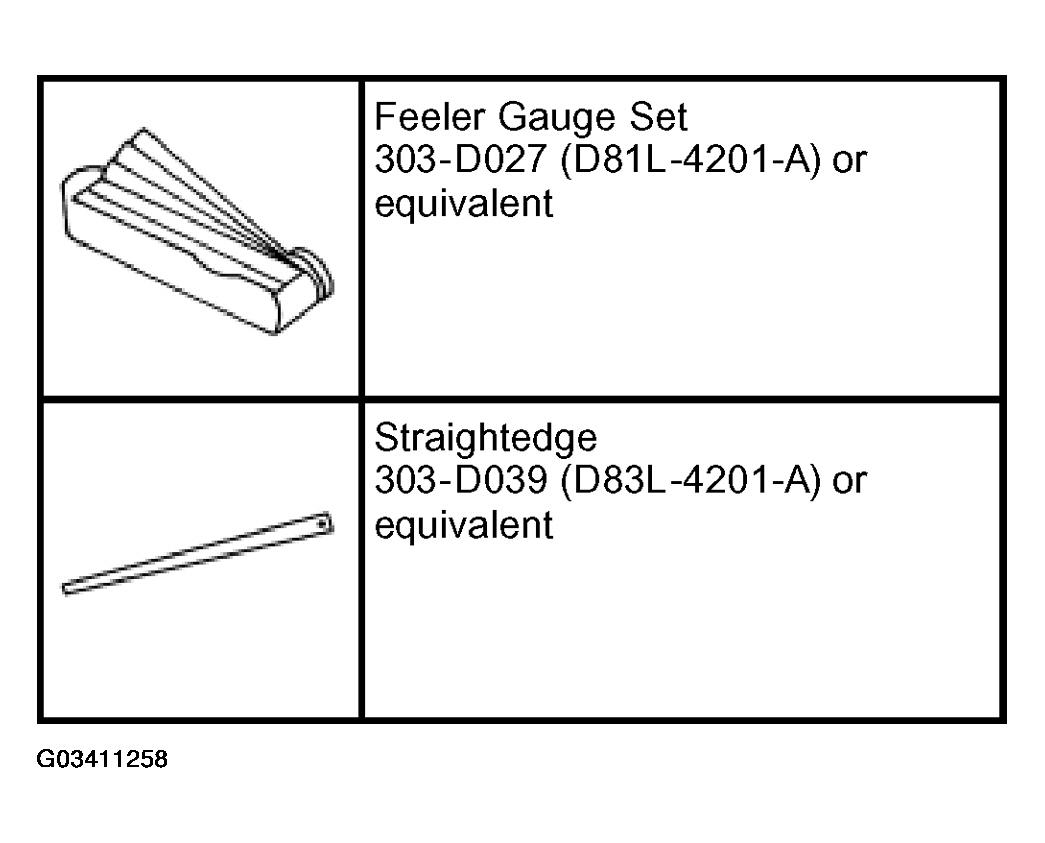

Fig 1: Identifying Cylinder Block Distortion Special Tool
Courtesy of FORD MOTOR CO.
Use a straightedge and a feeler gauge to inspect the cylinder block for flatness. If the cylinder block is distorted, resurface the cylinder block within specification.

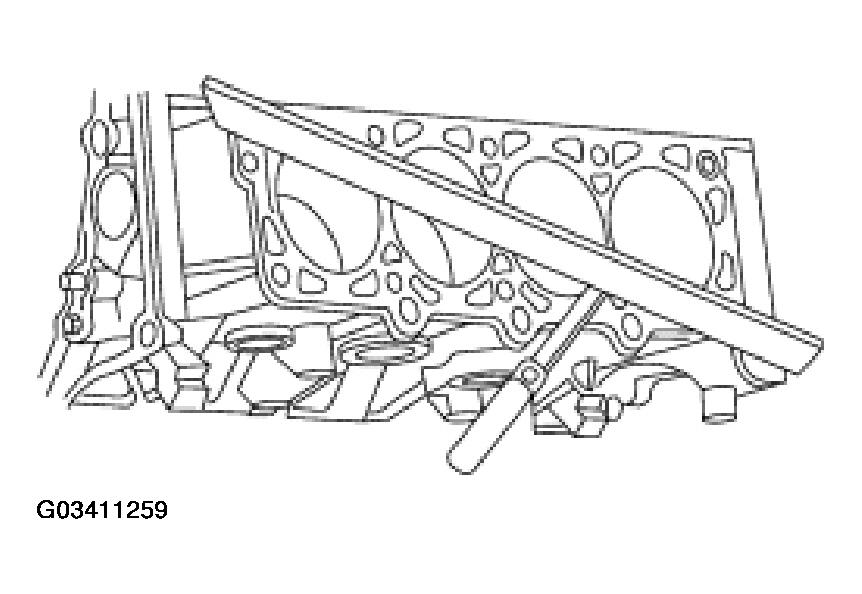

Fig 2: Inspecting Cylinder Block For Flatness Using Feeler Gauge
