Mode 6 - 2002 Ford - Except Diesel
›
Air System Monitor
Air System Monitor

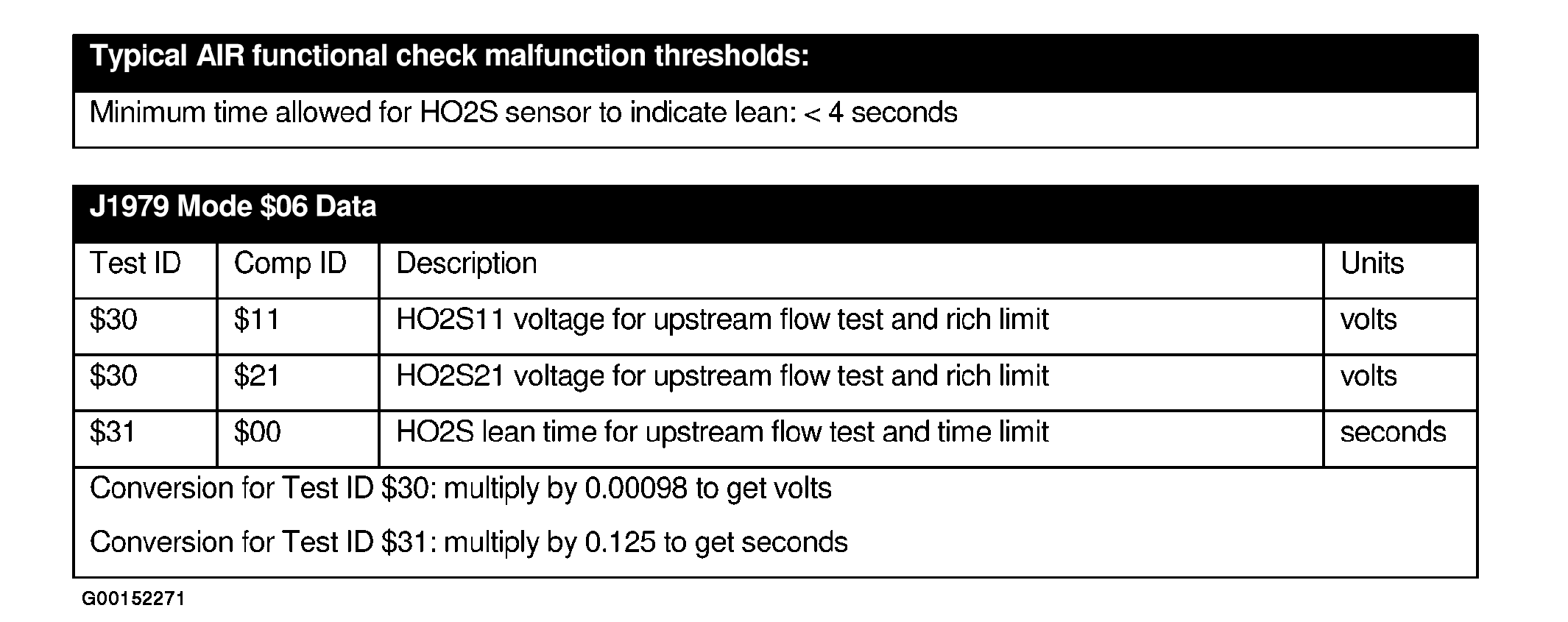

Fig 1: Mode $06 Data For AIR System Monitor
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
