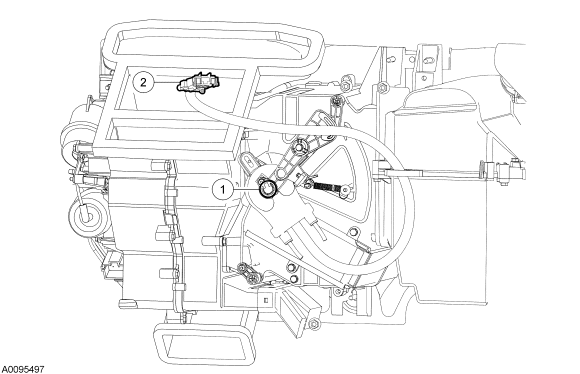

Fig 1: Temperature Blend Door Actuator
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
-
Temperature blend door cable to blend door connection
2
-
Temperature blend door actuator cable to temperature selector gear connection
