Brake System
WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

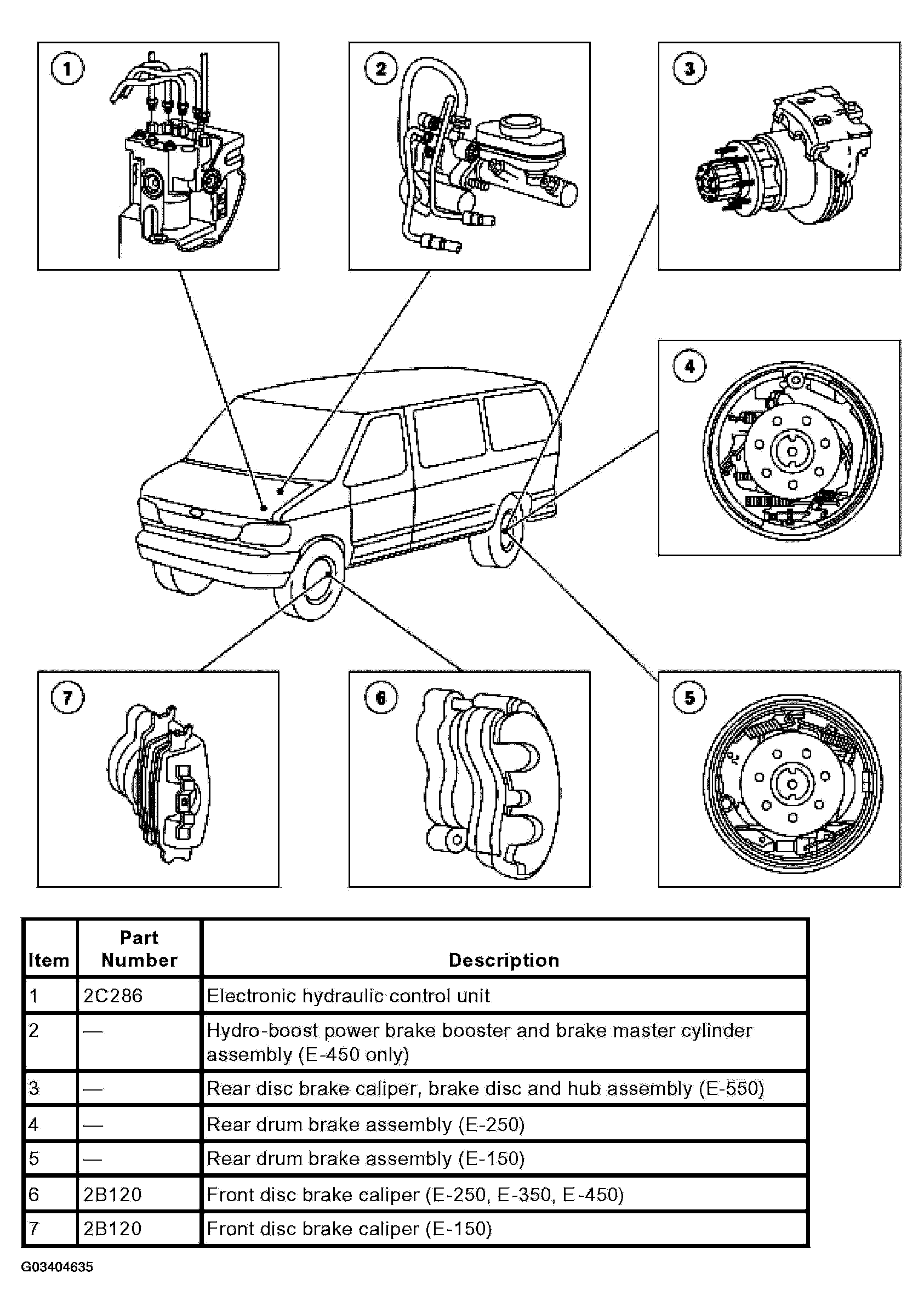

The significant features of the brake system are as follows:
- E-150, E-250 have rear drum brakes. For additional information, refer to DISC & DRUM .
- E-350, E-450, E -550 is equipped with rear disc brakes. For additional information, refer to DISC & DRUM .
- All E-150 - E-450 vehicles have front disc brakes. The E-550 front wheel brakes utilize a dual piston brake caliper and disc brake system. For additional information, refer to DISC & DRUM .
- The parking brake is foot-operated and, on the E -150, E-250 uses the rear drum brake system. E -350, uses a drum-in-hat brake system. The E-450, E -550 is equipped with a transmission-mounted parking brake. For additional information, refer to DISC & DRUM .
- The brake hydraulic system is split front and rear at the brake master cylinder. For additional information on the brake hydraulic system, refer to DISC & DRUM .
- The brake power assist is vacuum-operated on the E-150, E-250 and E-350. The E -450 is equipped with a Hydro-Boost power brake booster powered by the power steering pump. The E-550 chassis is equipped with either the Hydro-Boost or the Hydro-Max type. For additional information, refer to DISC & DRUM .
- All vehicles are equipped with either a rear only (RABS) or a 4-wheel (4WABS) anti-lock brake system. The E-550 anti-lock brake system utilizes a 3 or 4 channel configuration. For additional information, refer to ANTI-LOCK CONTROL - 4-WHEEL .
