Mass Air Flow Sensor Connector - C128

WARNING: This page is about a different car, the 2010 Lincoln Town Car. However, it is still accessible from the selected car via links, so may be relevant.

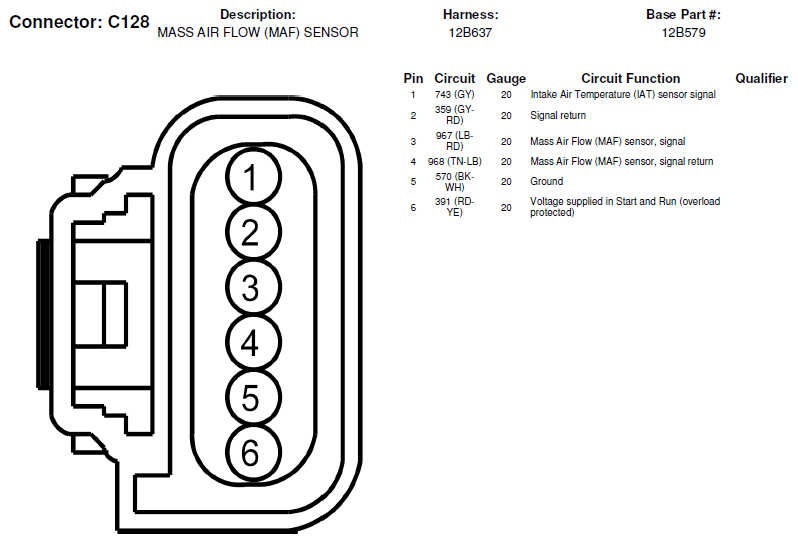

Fig 1: Mass Air Flow Sensor Connector End View (C128)
G06414097Courtesy of FORD MOTOR CO.
