Restraint Control Module (RCM) C310a

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

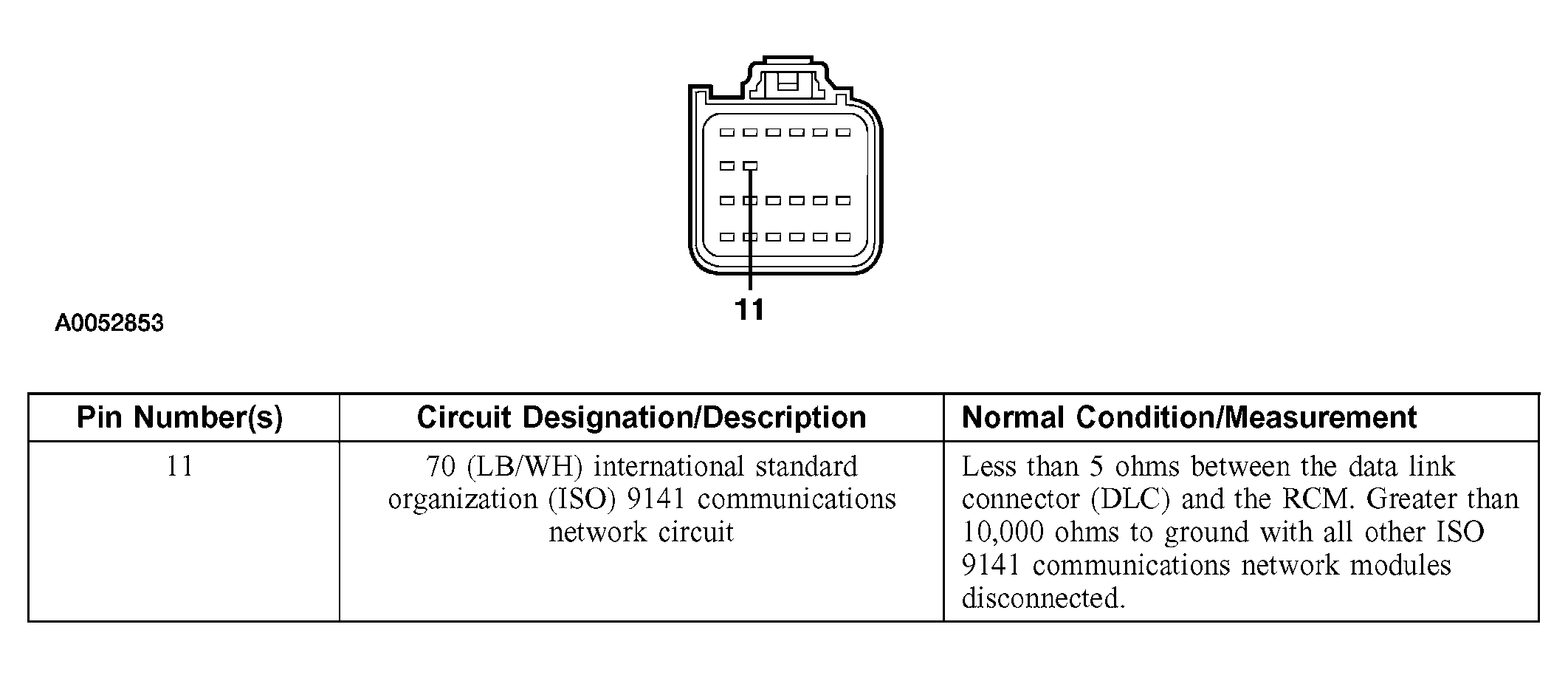

Fig 1: Identifying Restraint Control Module C310a Connector Pins
G03965849Courtesy of FORD MOTOR CO.
