Vehicle Security Module C3008b

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

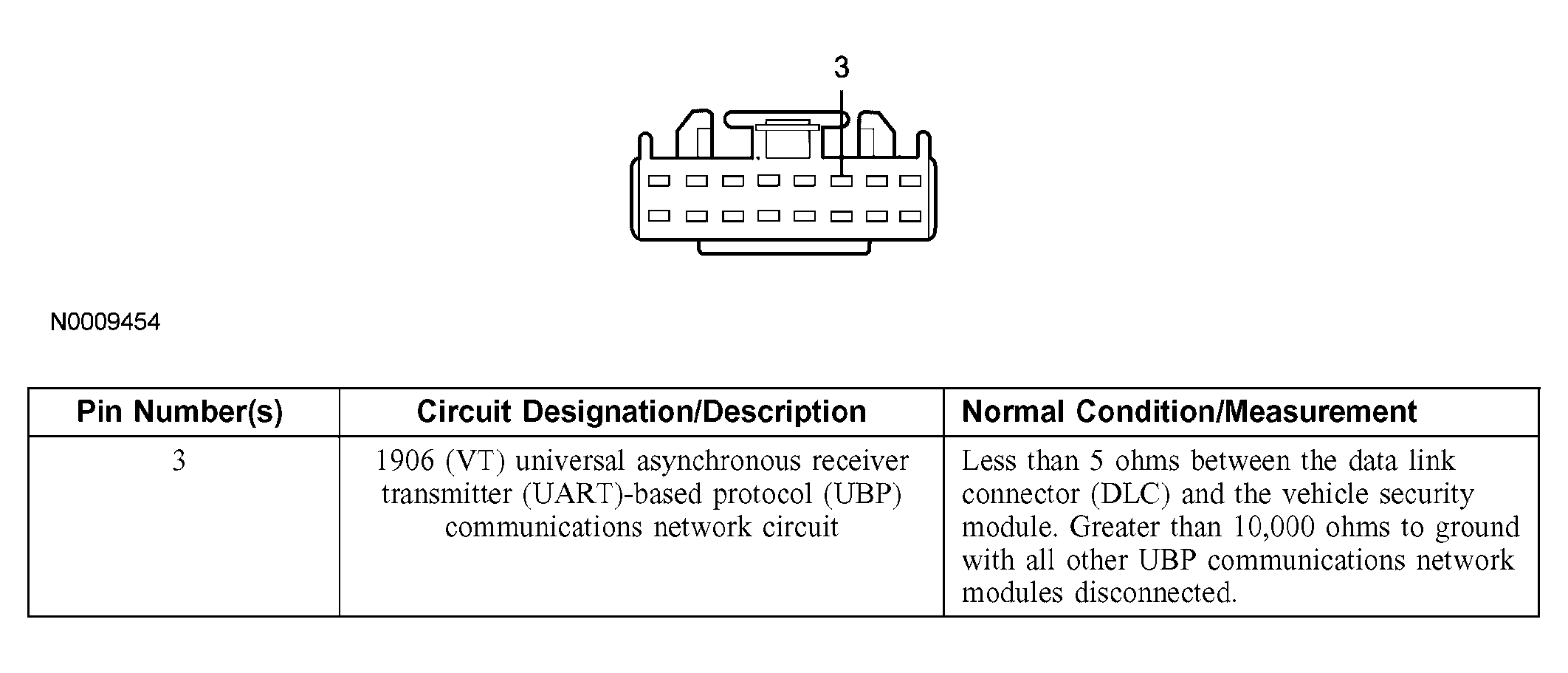

Fig 1: Identifying Vehicle Security Module C3008b Connector Pins
G03965852Courtesy of FORD MOTOR CO.
