Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Correctly

Fig 1: Identifying Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly (1 Of 2)
G03412716Courtesy of FORD MOTOR CO.

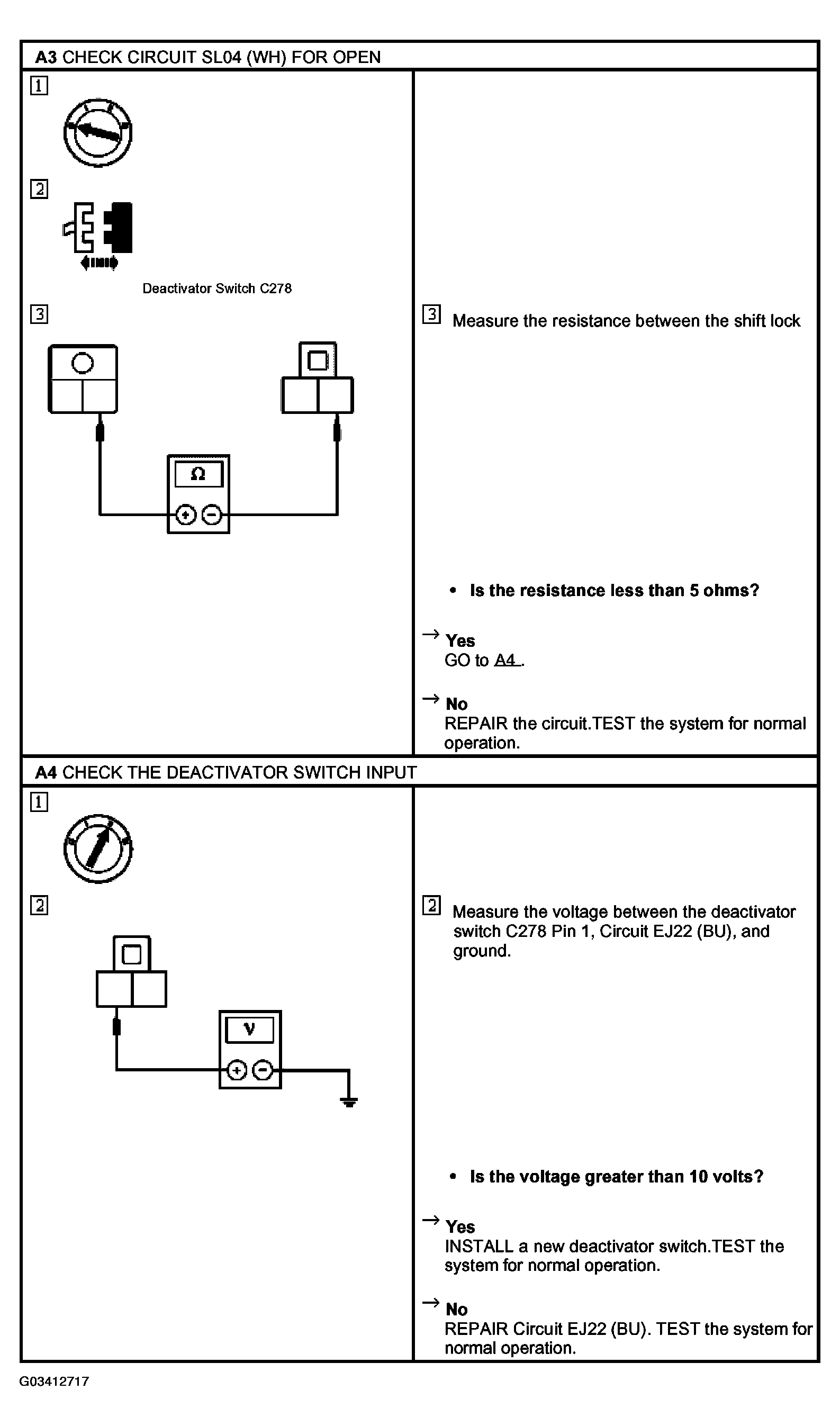

Fig 2: Identifying Pinpoint Test A: Shift Interlock System Does Not Release/Lock Correctly (2 Of 2)
G03412717Courtesy of FORD MOTOR CO.
