Pinpoint Test B: The Shift Control Is Out Of Correct Gear Relationship

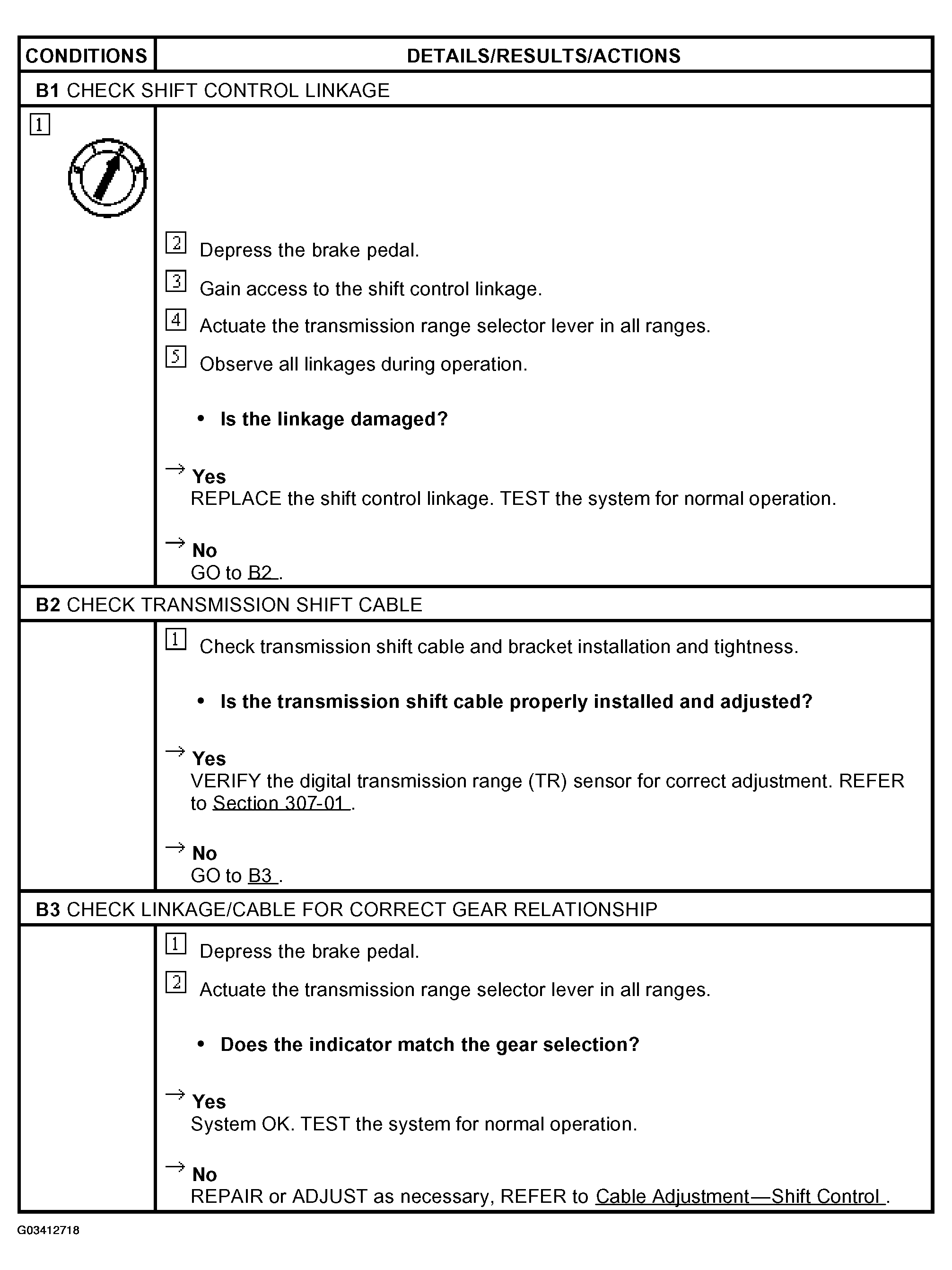

Fig 1: Identifying Pinpoint Test B: Shift Control Is Out Of Correct Gear Relationship
G03412718Courtesy of FORD MOTOR CO.
