Main Control Valve Body - Intermediate: Disassembly

  1. Remove the check balls from the valve body.

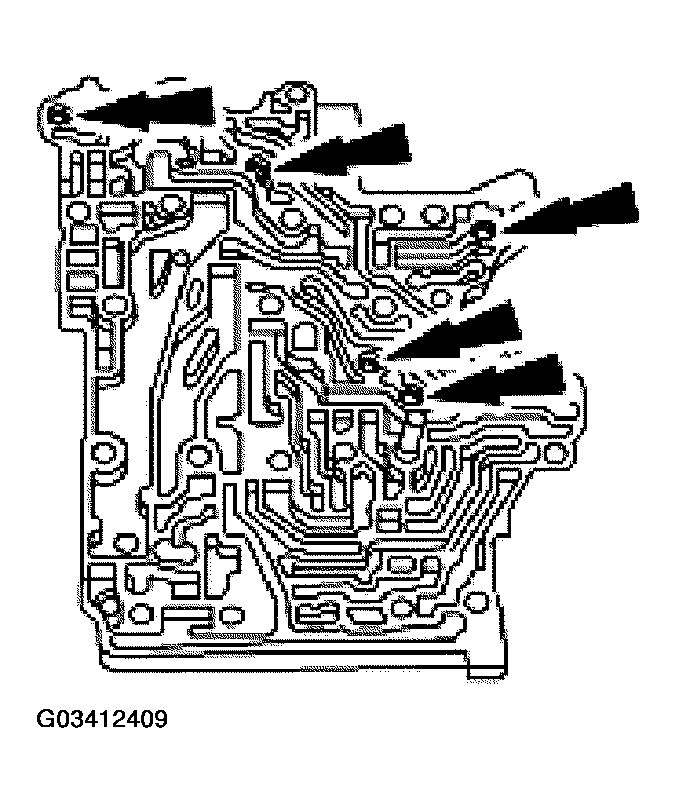

    Fig 1: Removing Check Balls From Valve Body
    G03412409Courtesy of FORD MOTOR CO.
  2. Clean and inspect the check balls.
