Pinpoint Test B: Unable To Enter Self-Test
Pinpoint Test B: Unable To Enter Self-Test

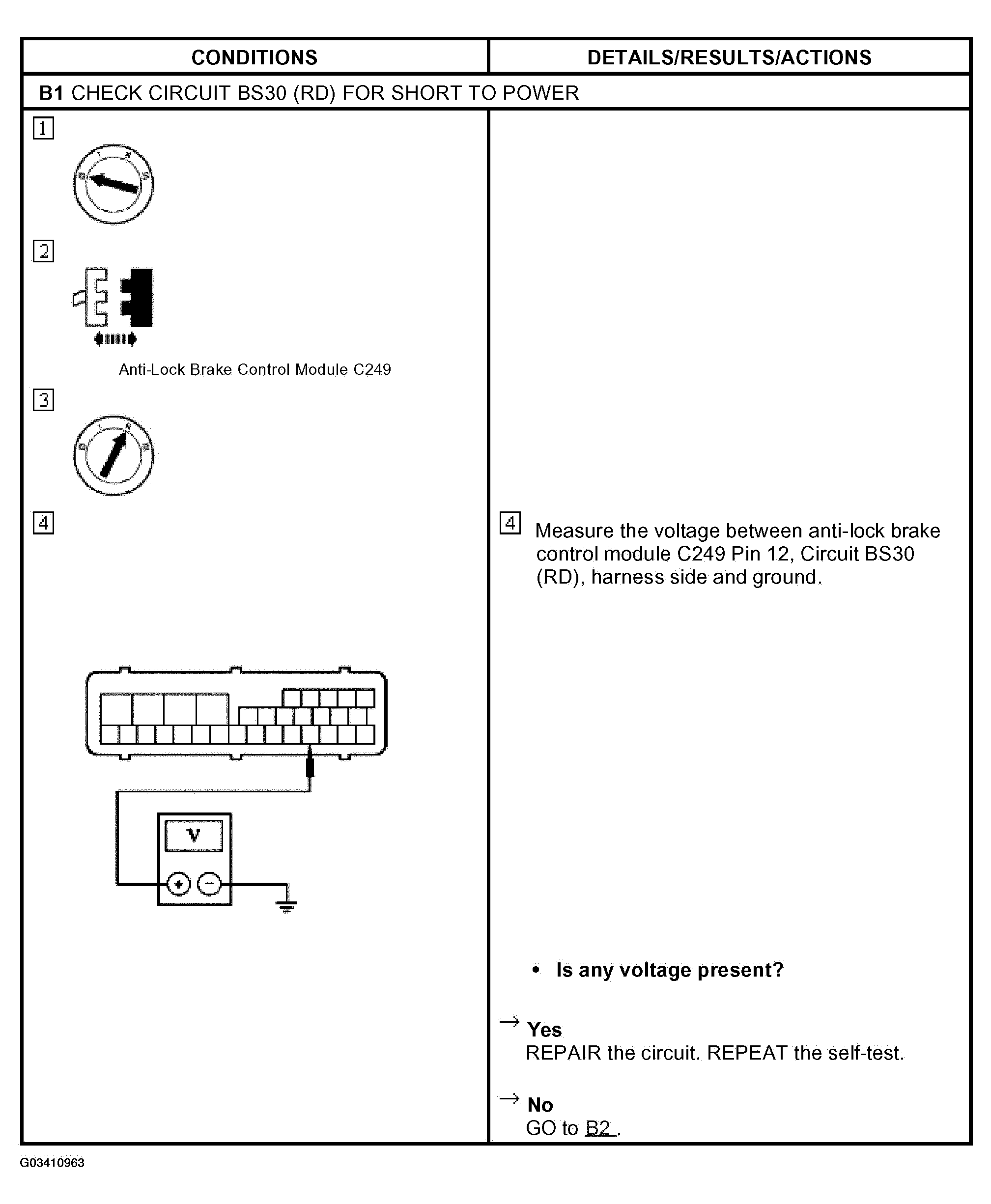

Fig 1: Pinpoint Test B: Unable To Enter Self-Test (B1)
Courtesy of FORD MOTOR CO.

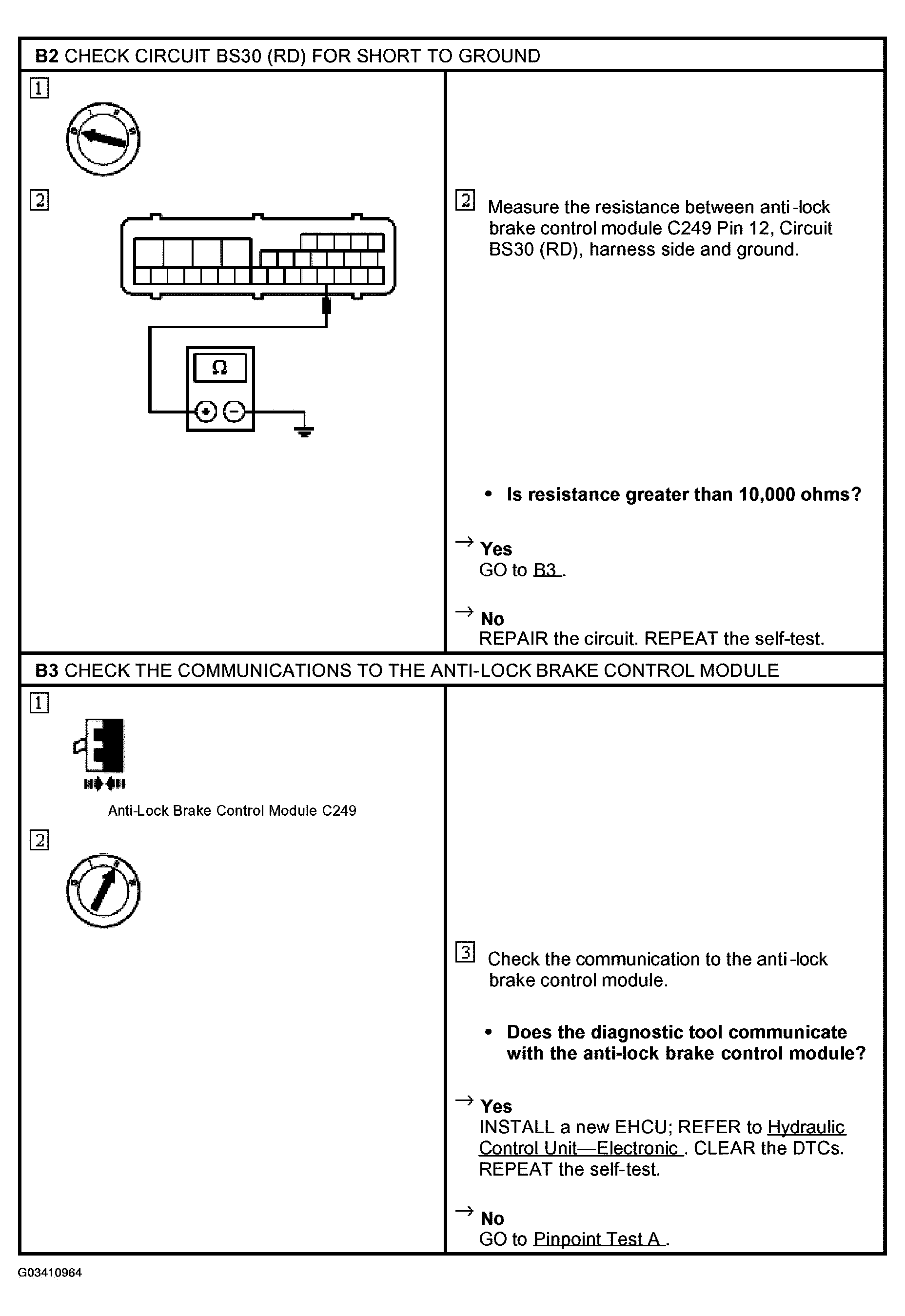

Fig 2: Pinpoint Test B: Unable To Enter Self-Test (B2-B3)
Courtesy of FORD MOTOR CO.
