Pinpoint Test G: The Powertrain Control Module (PCM) Does Not Respond To The Diagnostic Tool: Testing

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

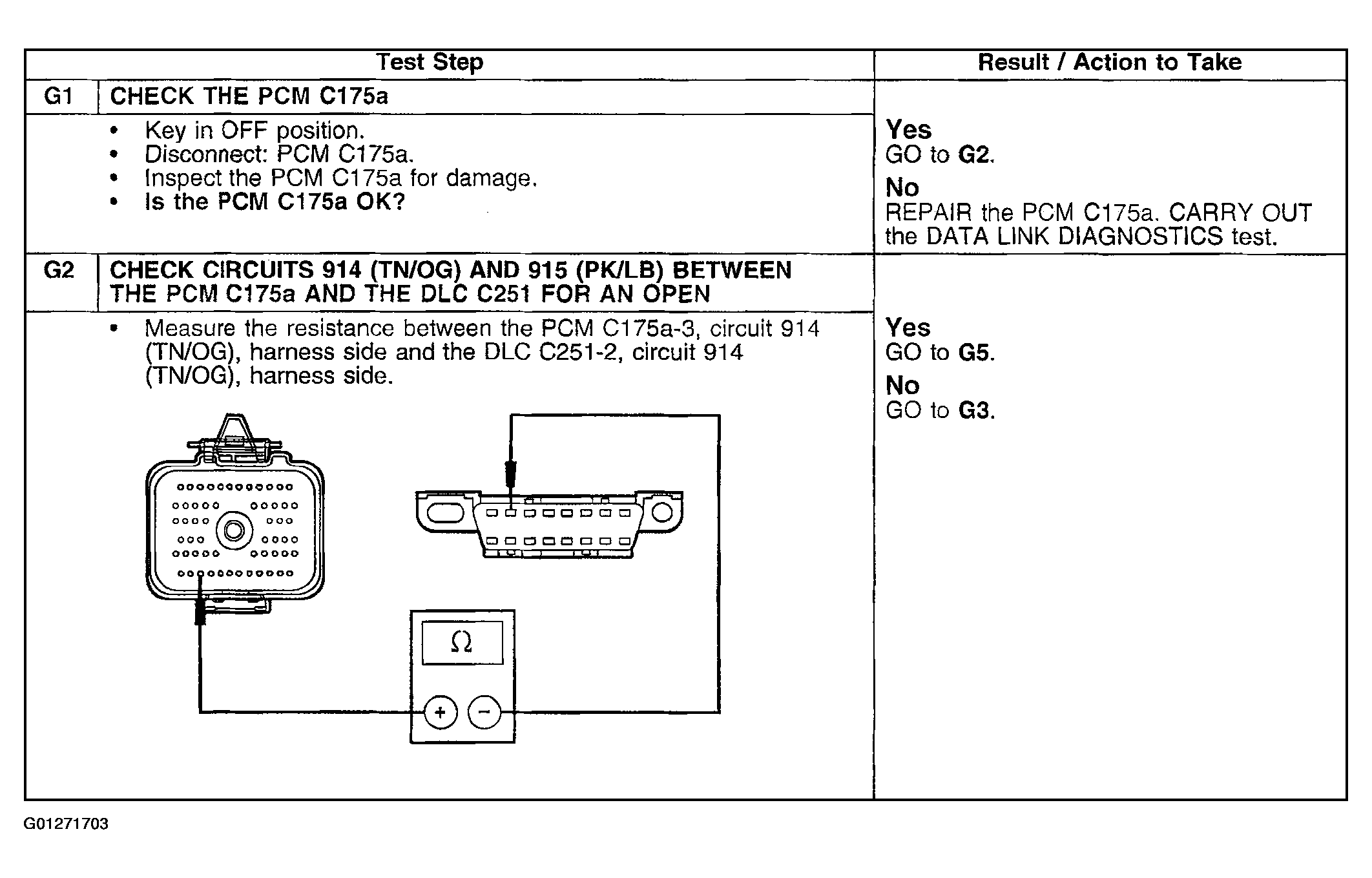

Fig 1: Pinpoint Test G Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool (G1 - G2)

Courtesy of FORD MOTOR CO.

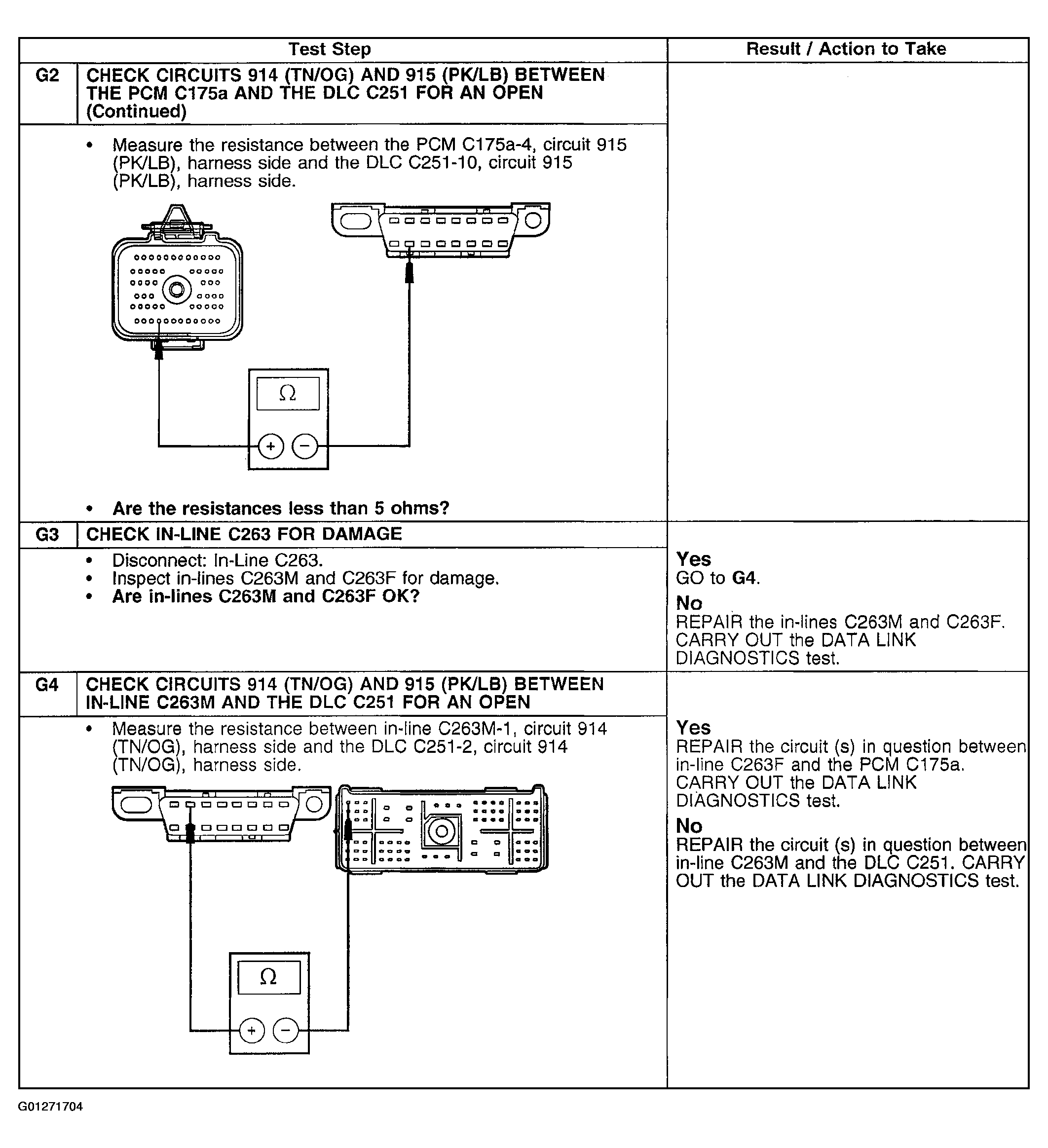

Fig 2: Pinpoint Test G Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool (G2 - G4)

Courtesy of FORD MOTOR CO.

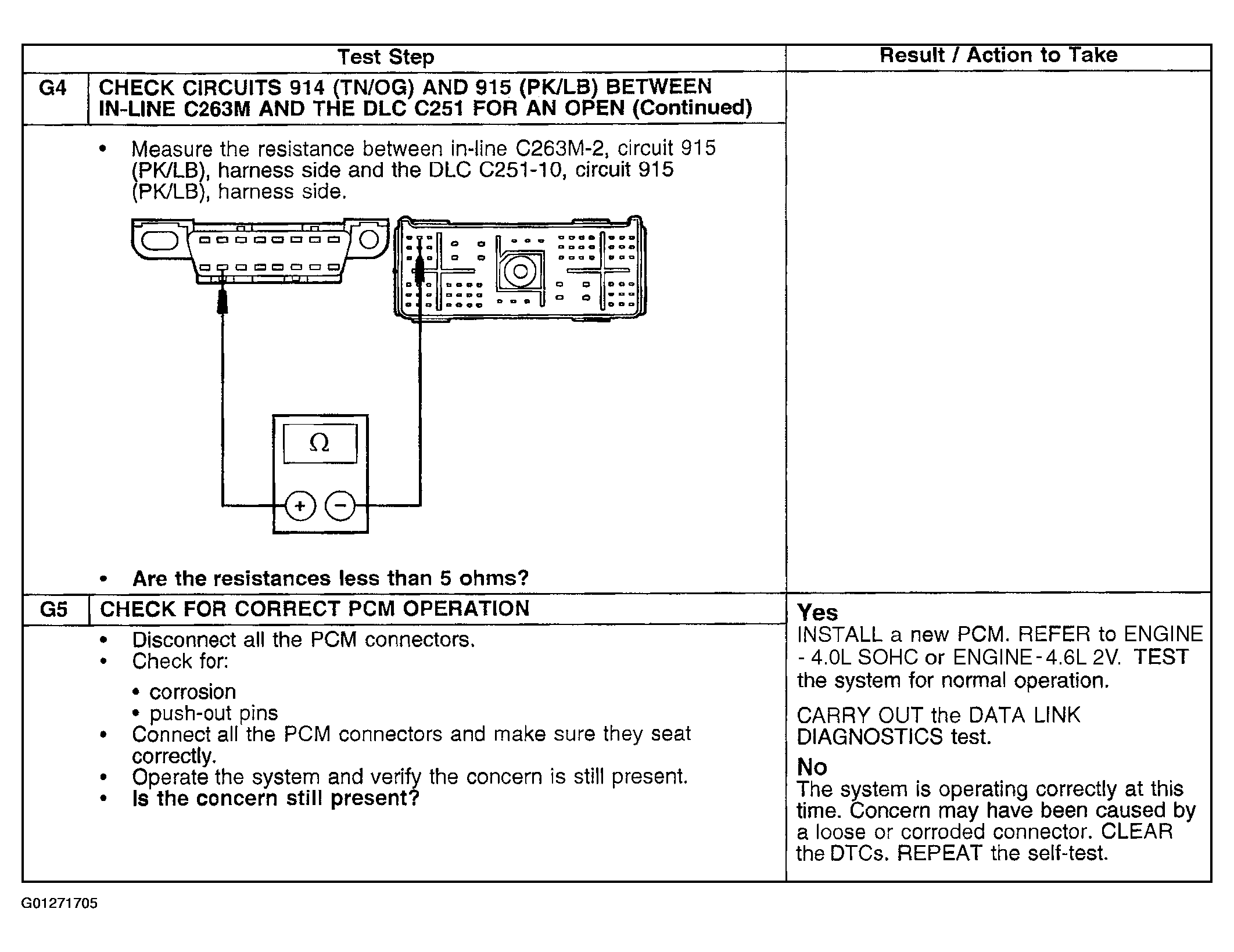

Fig 3: Pinpoint Test G Powertrain Control Module (PCM) Does Not Respond To Diagnostic Tool (G4 - G5)

Courtesy of FORD MOTOR CO.
