Pinpoint Test C: No Communication With Lighting Control Module

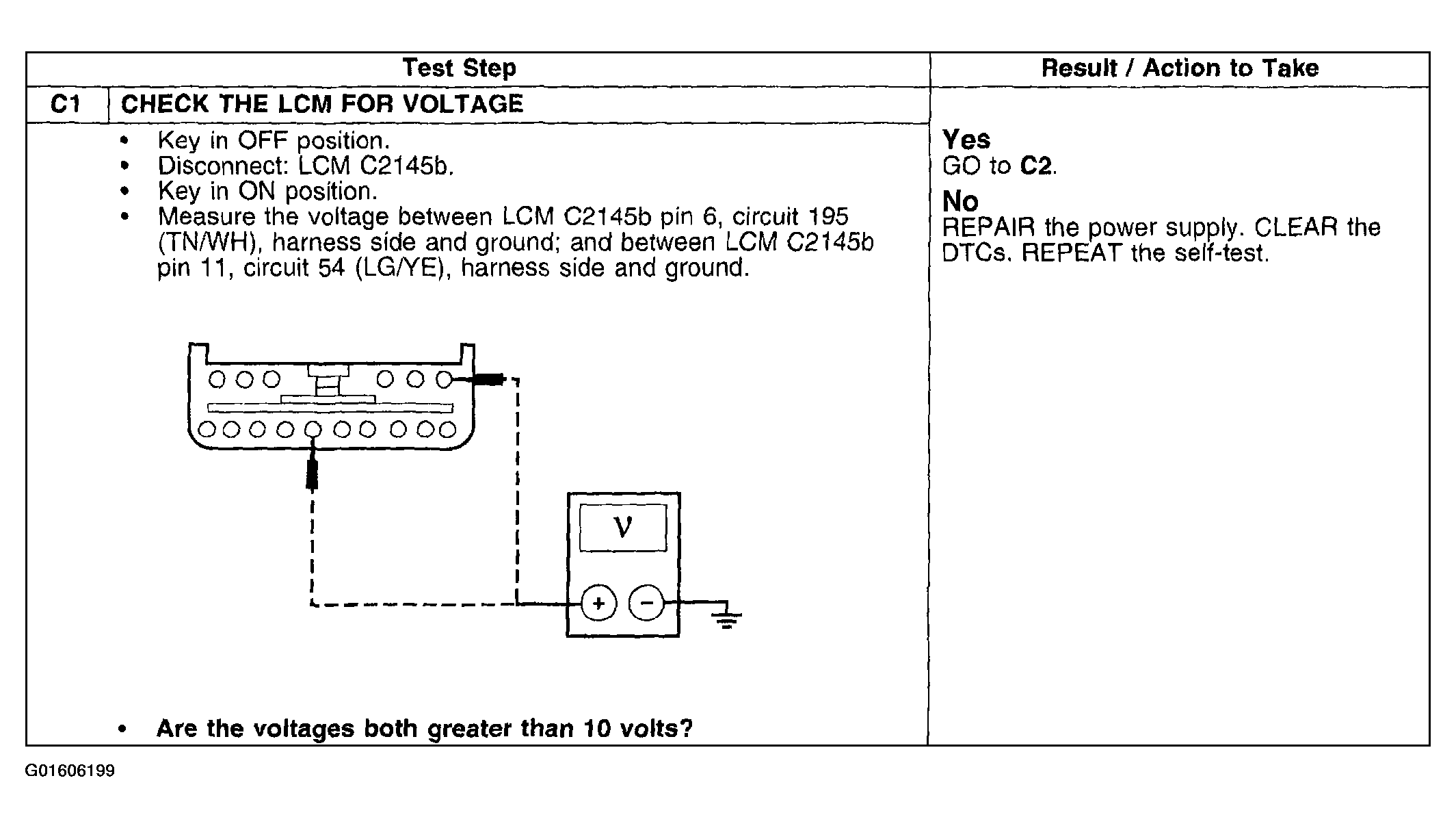

Fig 1: Pinpoint Test C: No Communication With Lighting Control Module (1 Of 2)
G01606199Courtesy of FORD MOTOR CO.

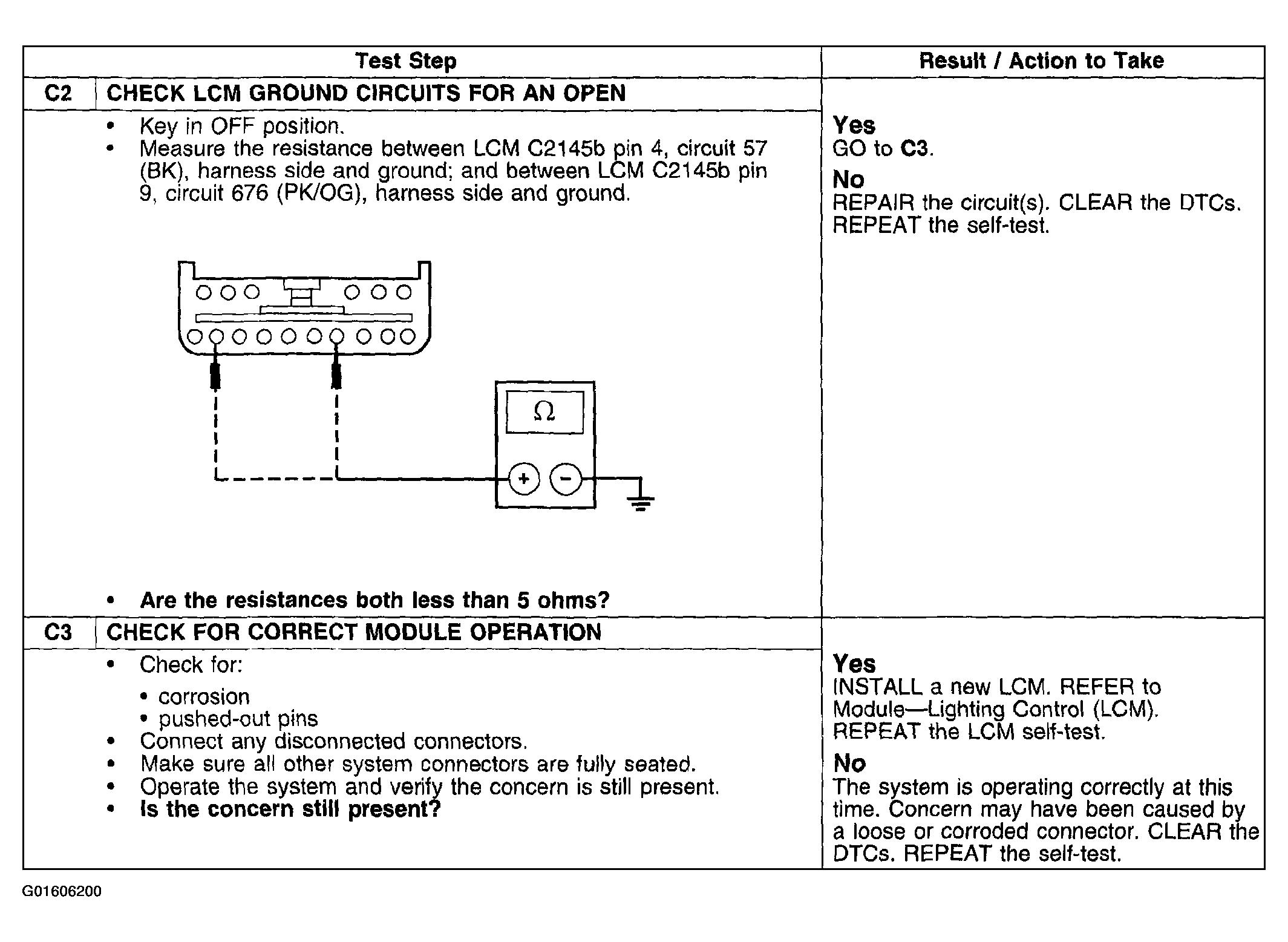

Fig 2: Pinpoint Test C: No Communication With Lighting Control Module (2 Of 2)
G01606200Courtesy of FORD MOTOR CO.
