Pinpoint Test E: Electronic Automatic Temperature Control (EATC) Module Does Not Respond To Diagnostic Tool

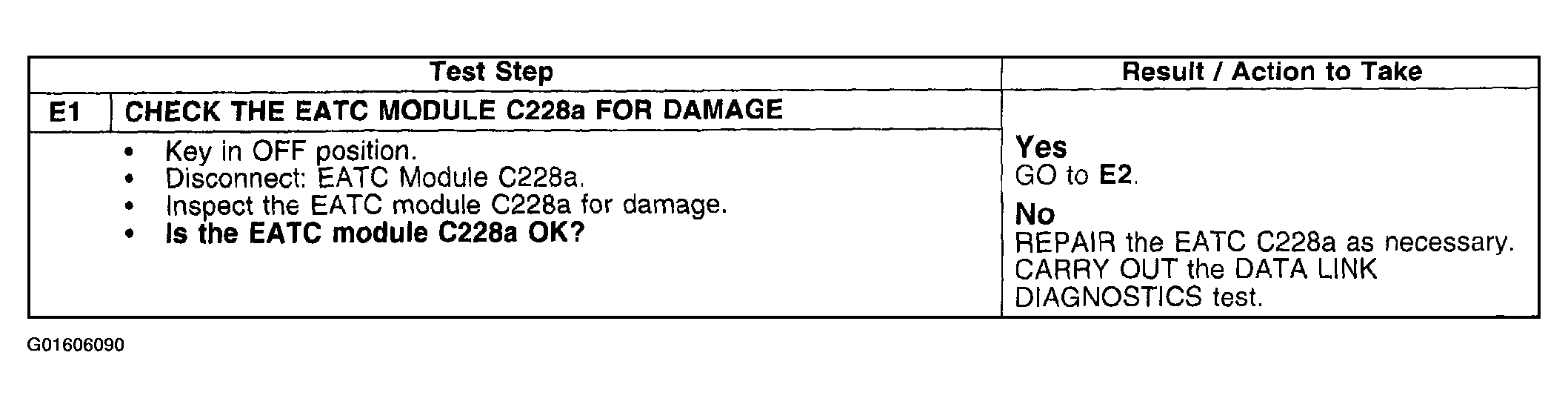

Fig 1: Pinpoint Test E: Electronic Automatic Temperature Control (EATC) Module Does Not Respond To Diagnostic Tool (E1)
G01606090Courtesy of FORD MOTOR CO.

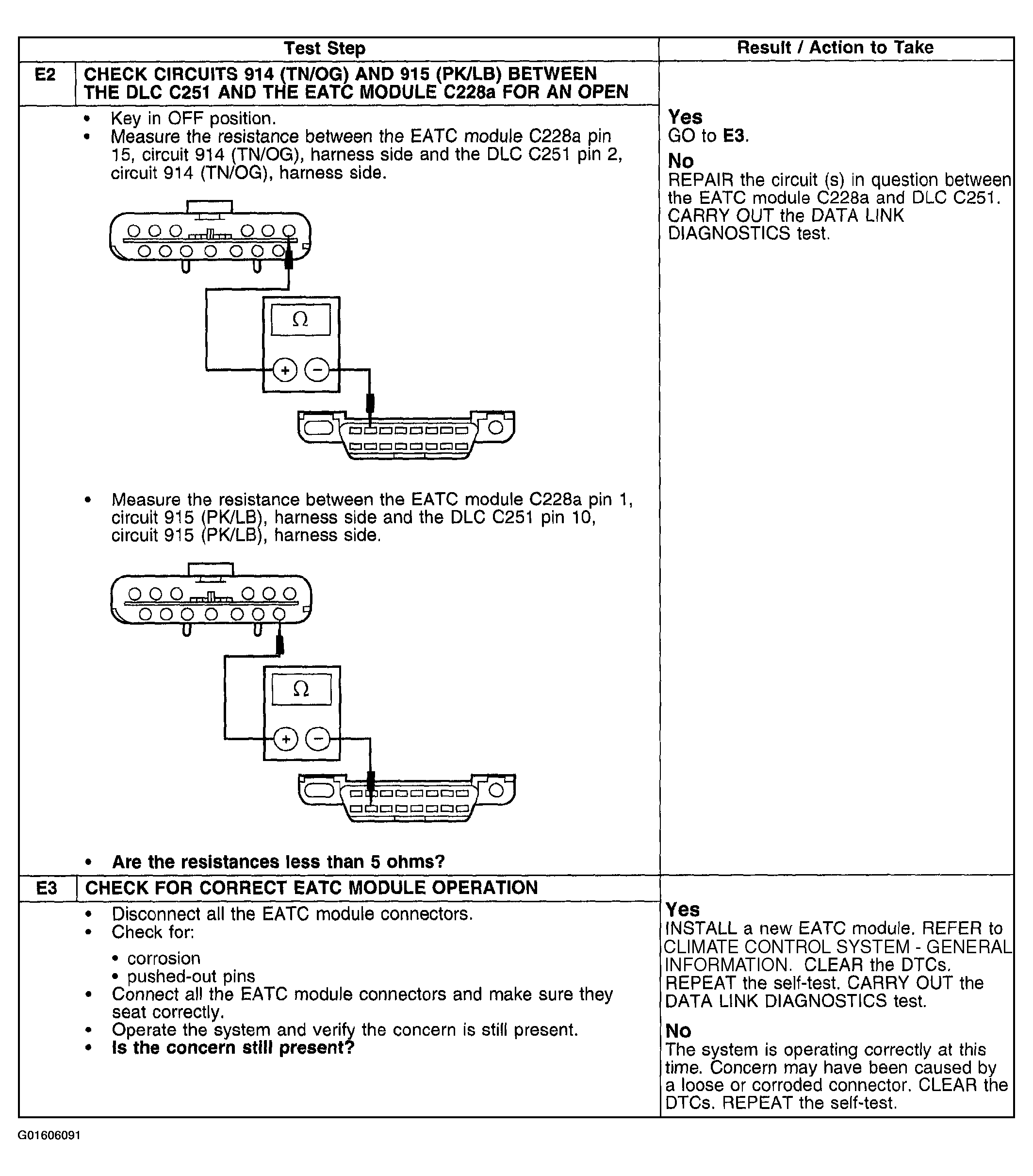

Fig 2: Pinpoint Test E: Electronic Automatic Temperature Control (EATC) Module Does Not Respond To Diagnostic Tool (E2-E3)
G01606091Courtesy of FORD MOTOR CO.
