Home › Mercury › 2003 › Marauder › Repair and Diagnosis › Brakes › Traction Control › Anti-Lock Brake System › Diagnosis And Testing › Anti-Lock Control - Anti-Wheelspin Control › Symptom Chart

Symptom Chart

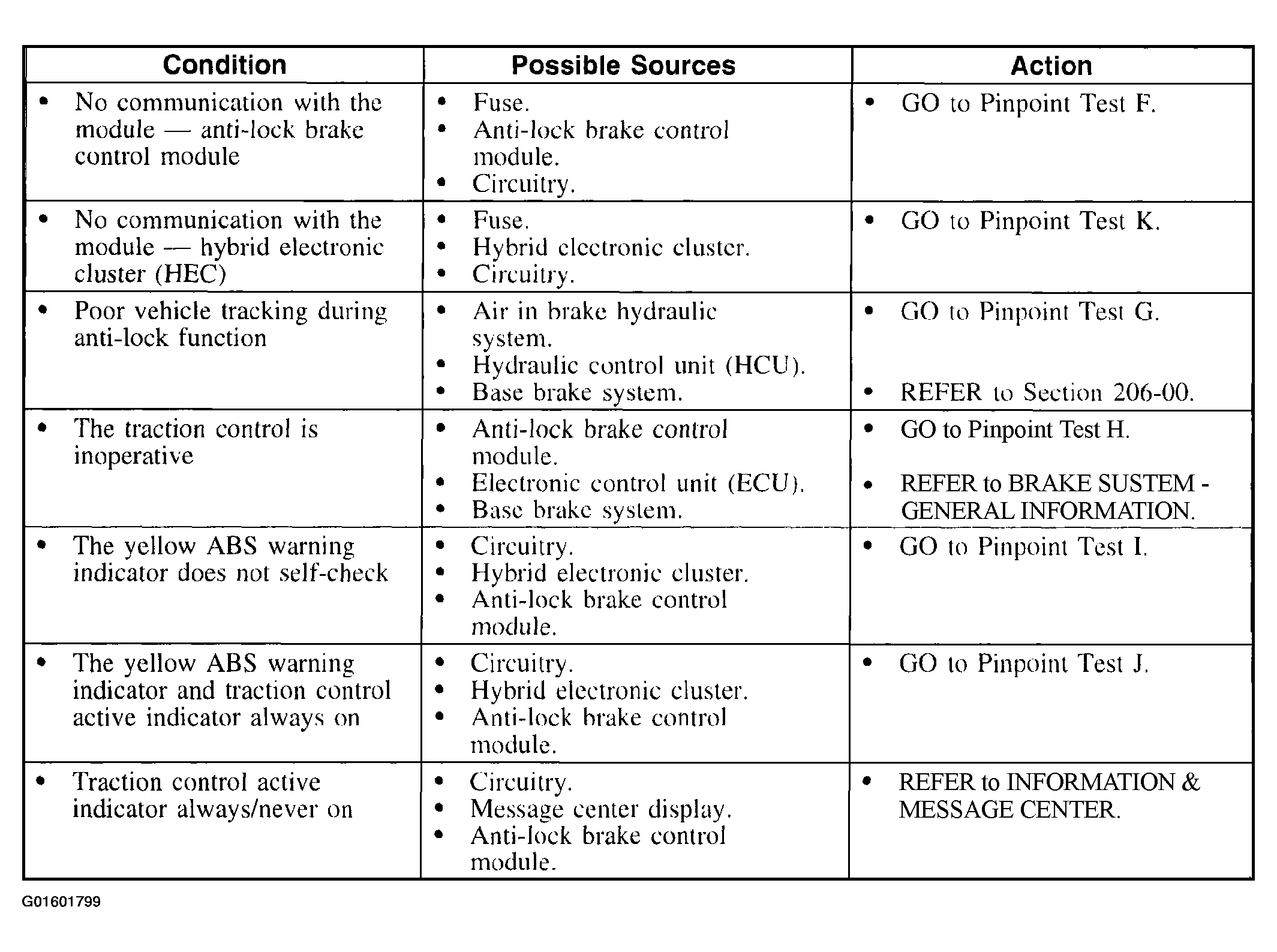

Fig 1: Symptom Chart (1 Of 2)
G01601799Courtesy of FORD MOTOR CO.

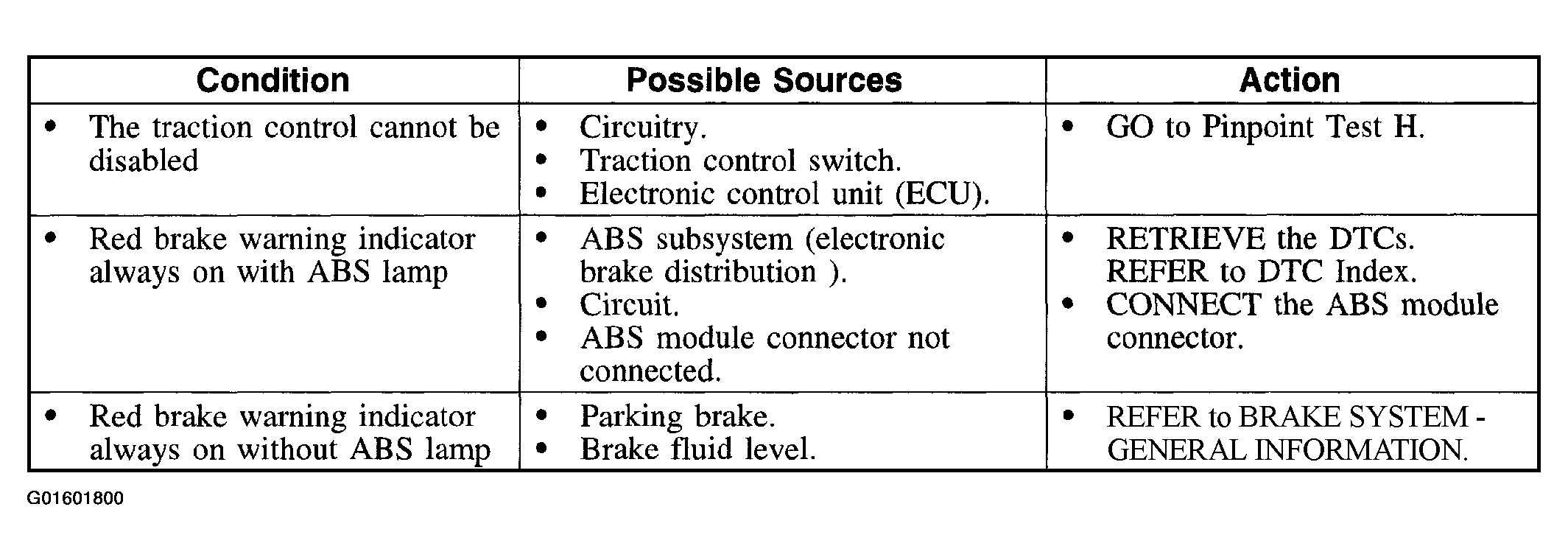

Fig 2: Symptom Chart (2 Of 2)
G01601800Courtesy of FORD MOTOR CO.
