Removal and Installation

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disengage the four retaining clips by first pulling down on the front of the overhead console and then the rear of the overhead console.
- Disconnect the electrical connectors.

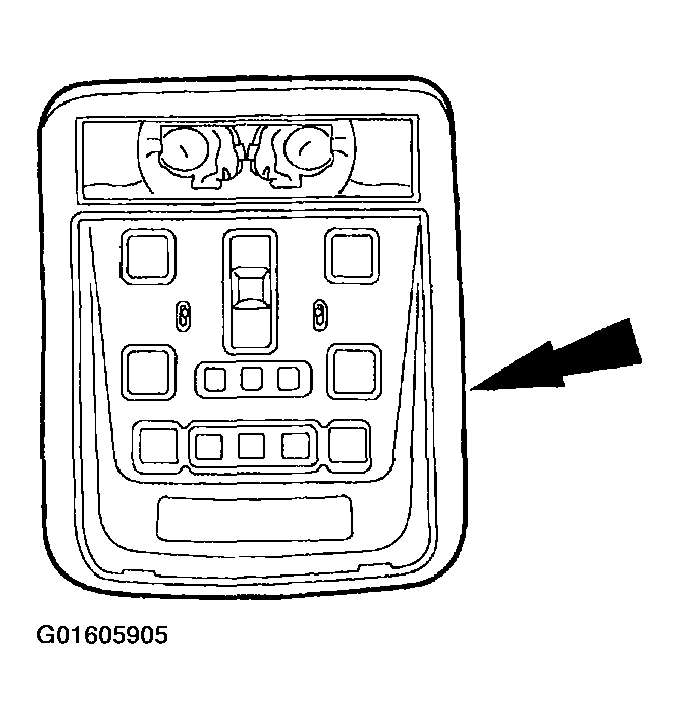

Fig 1: Pulling Down Front Of Overhead Console
Courtesy of FORD MOTOR CO.
Remove the four screws and the message center module.

Fig 2: Removing Screws Message Center Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
