Piston - Pin Connecting Rod Assembly, Floating Pin: Disassembly

  1. Remove the clips.
    Fig 1: Removing Clips
    G01604786Courtesy of FORD MOTOR CO.
  2. Remove the piston pin from the piston and connecting rod assembly.
    Fig 2: Removing Piston Pin From Piston And Connecting Rod Assembly
    G01604787Courtesy of FORD MOTOR CO.
  3. Remove the connecting rod from the piston.

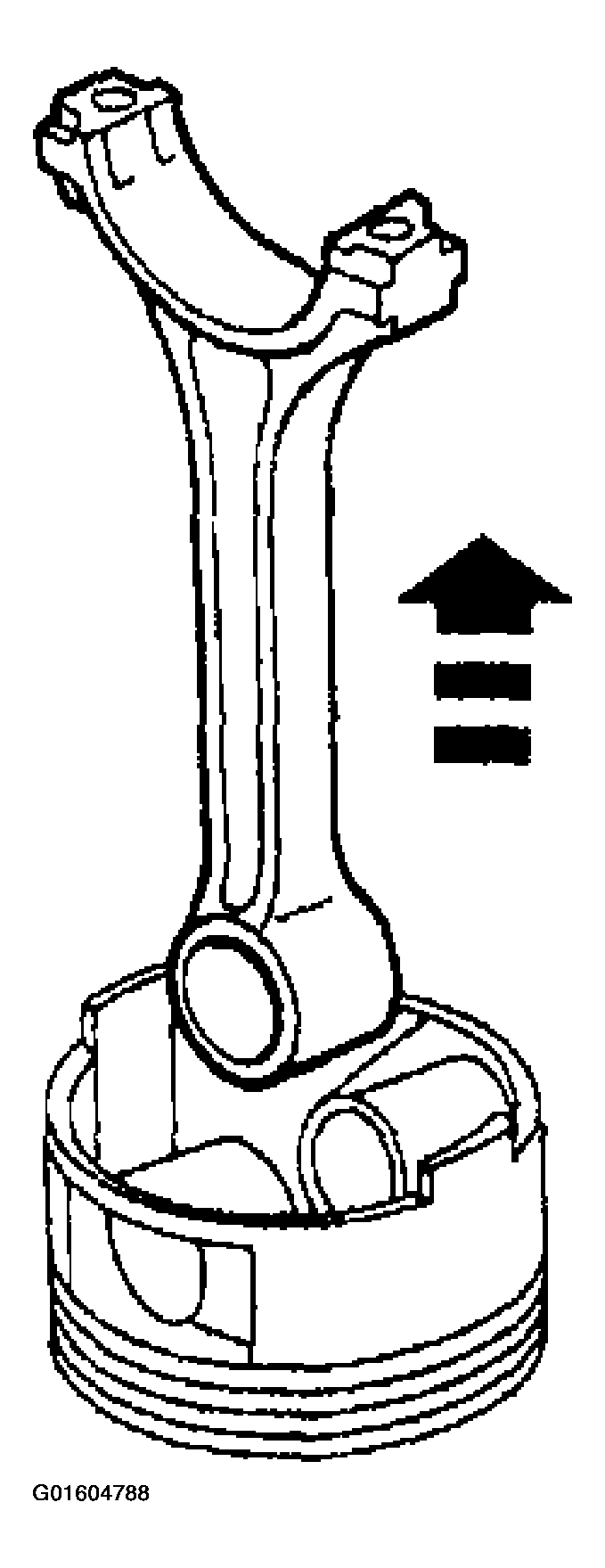

    Fig 3: Removing Connecting Rod From Piston
    G01604788Courtesy of FORD MOTOR CO.
  4. Clean and inspect the piston and connecting rod. For additional information, refer to ENGINE COOLING .
