Engine Front Cover: Removal

Remove the left and right valve covers. For additional information, refer to VALVE COVER LH and VALVE COVER RH .
Remove the cooling fan. For additional information, refer to ENGINE COOLING .
Remove the water pump pulley.
1. Remove the bolts.
2. Remove the water pump pulley.

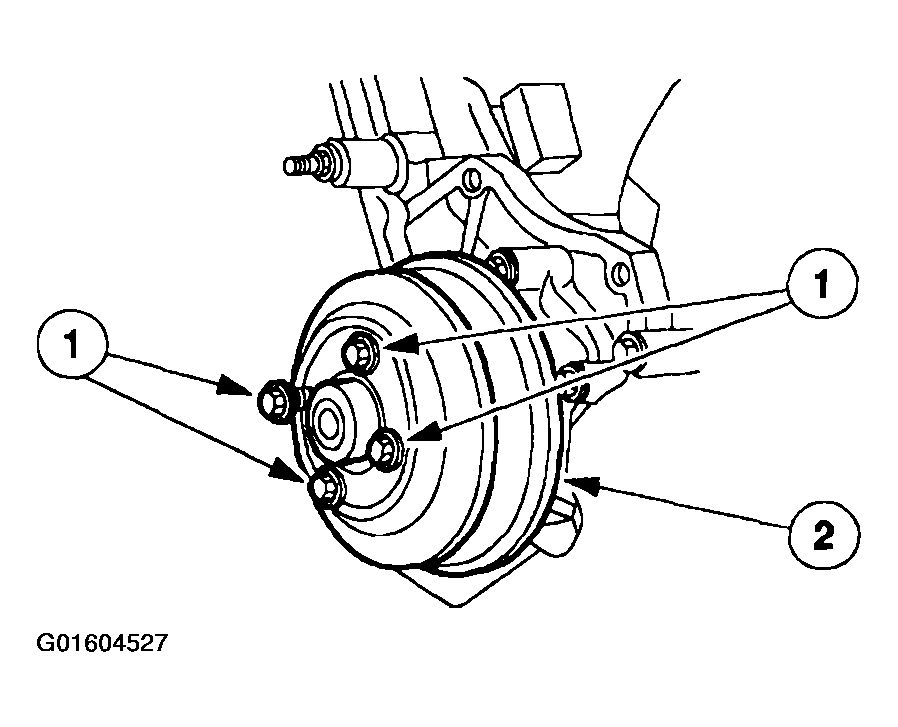

Fig 1: Removing Water Pump Pulley
Courtesy of FORD MOTOR CO.
Remove the crankshaft front seal. For additional information, refer to CRANKSHAFT FRONT SEAL .
Remove the bolts and position the power steering pump aside.

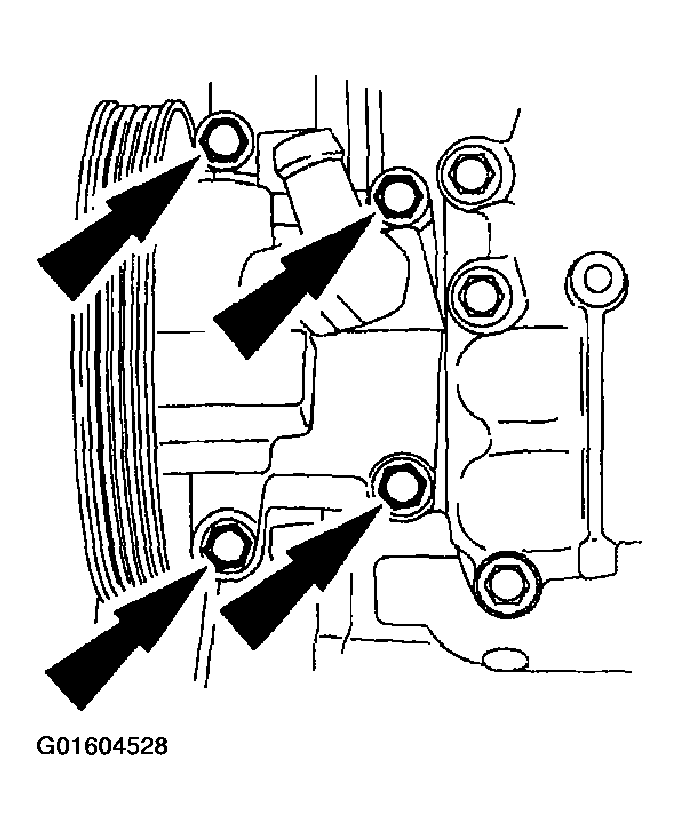

Fig 2: Removing Power Steering Pump Bolts
Courtesy of FORD MOTOR CO.
Disconnect the A/C compressor electrical connector.

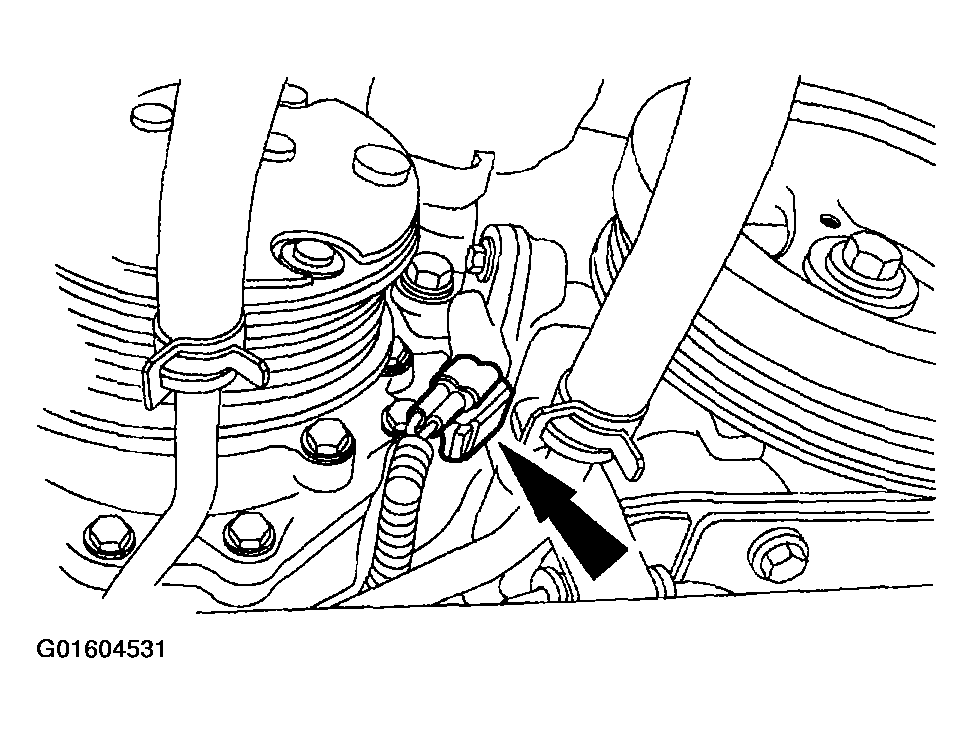

Fig 3: Disconnecting A/C Compressor Electrical Connector
Courtesy of FORD MOTOR CO.

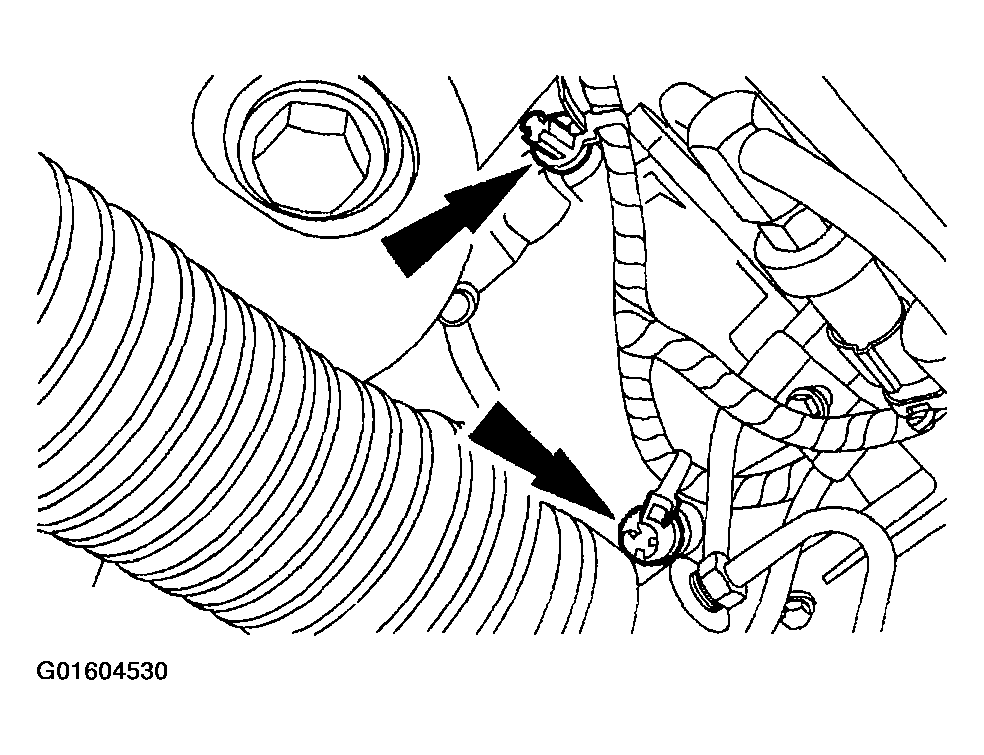

Disconnect the engine wiring harness retainers from the A/C compressor.

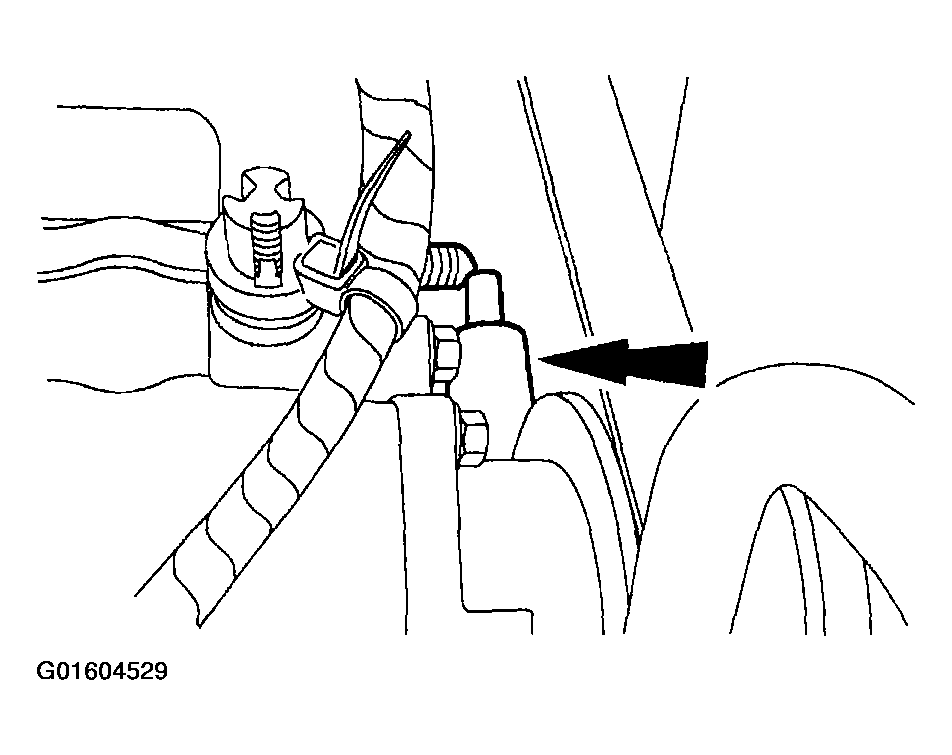

Fig 4: Disconnecting Engine Wiring Harness Retainers From A/C Compressor
Courtesy of FORD MOTOR CO.
Disconnect the crankshaft position (CKP) sensor electrical connector.

Fig 5: Disconnecting Crankshaft Position Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the A/C compressor and position aside.
Remove the nut and the bracket.

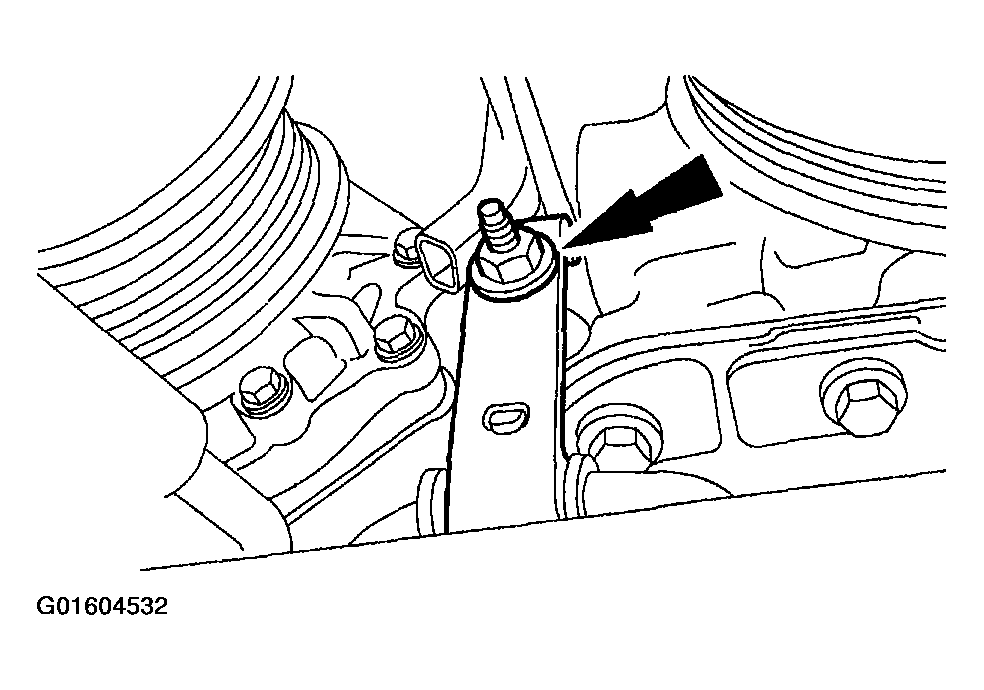

Fig 6: Removing Nut And Bracket
Courtesy of FORD MOTOR CO.
Remove the drain plug and drain the engine oil.

Fig 7: Removing Drain Plug
Courtesy of FORD MOTOR CO.
Remove the four front bolts.

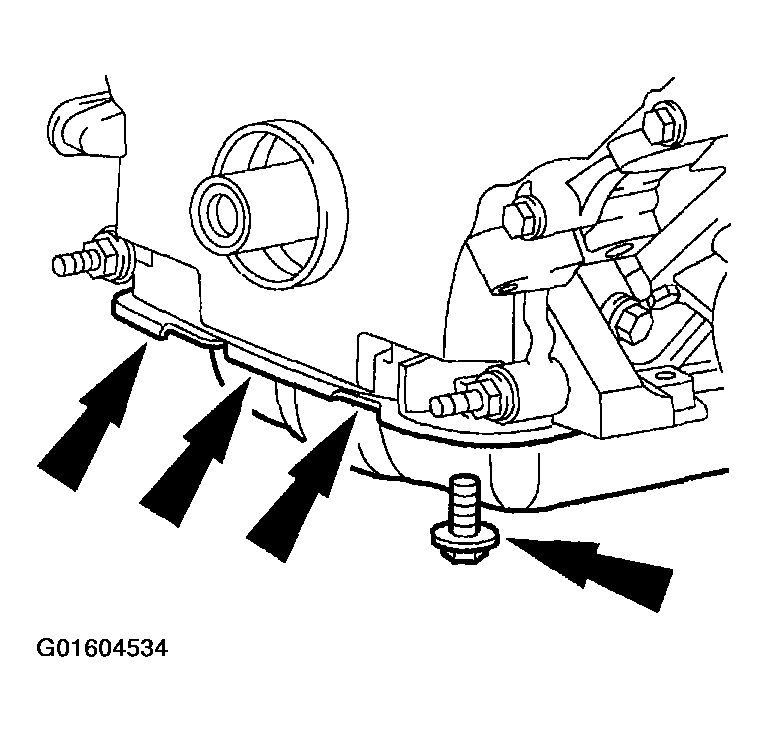

Fig 8: Removing Front Bolts
Courtesy of FORD MOTOR CO.
Lower the vehicle.
Remove the belt idler pulleys.

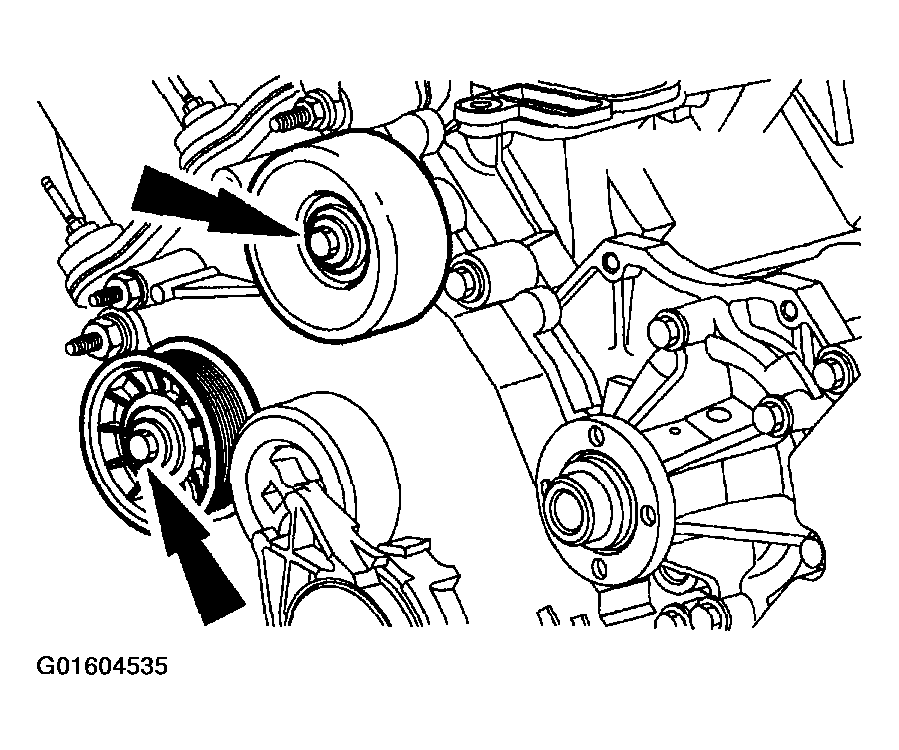

Fig 9: Removing Belt Idler Pulley
Courtesy of FORD MOTOR CO.
Remove the bolts and the studs, and the engine front cover.

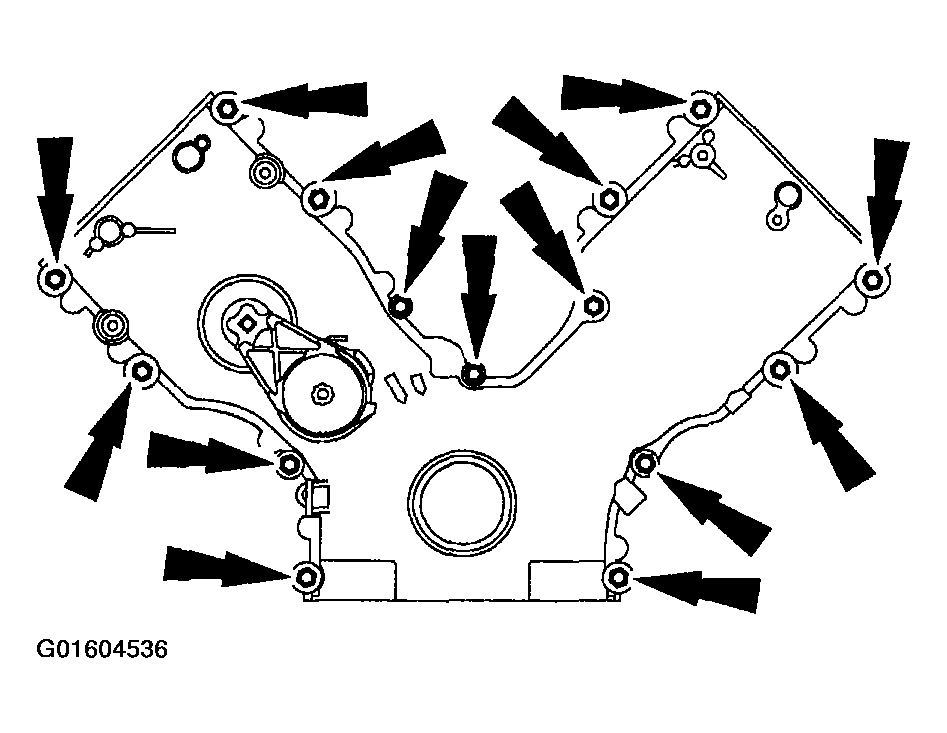

Fig 10: Removing Engine Front Cover
Courtesy of FORD MOTOR CO.

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

Remove and discard the gasket, clean and inspect the sealing surfaces.
