Upper Intake Manifold: Installation

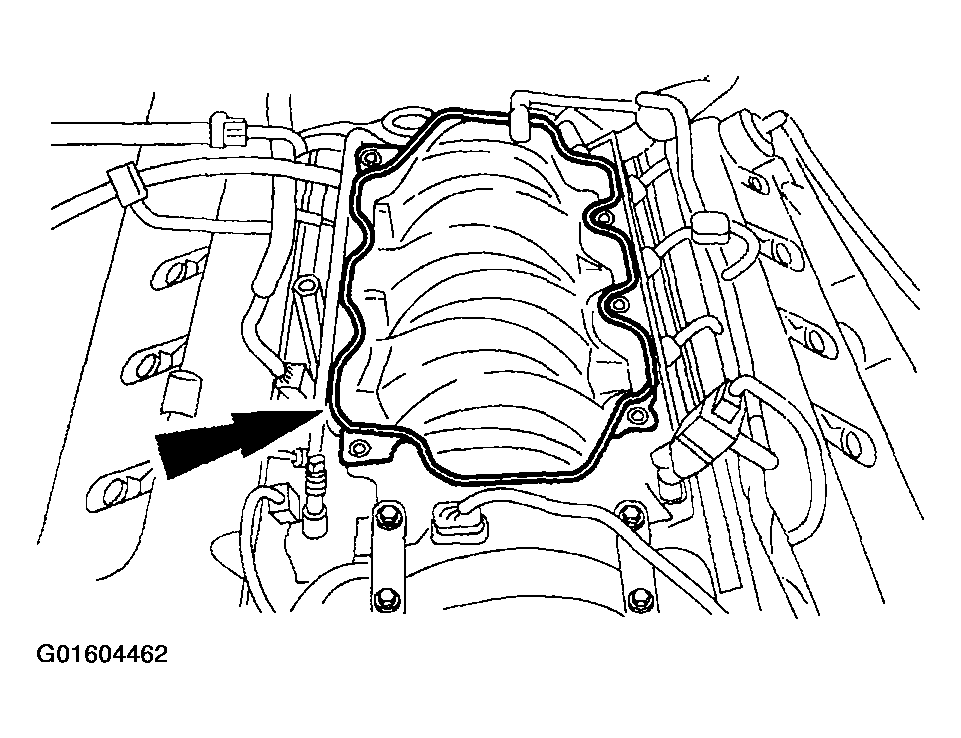

Install a new upper intake manifold gasket.

Fig 1: Installing Upper Intake Manifold Gasket
Courtesy of FORD MOTOR CO.

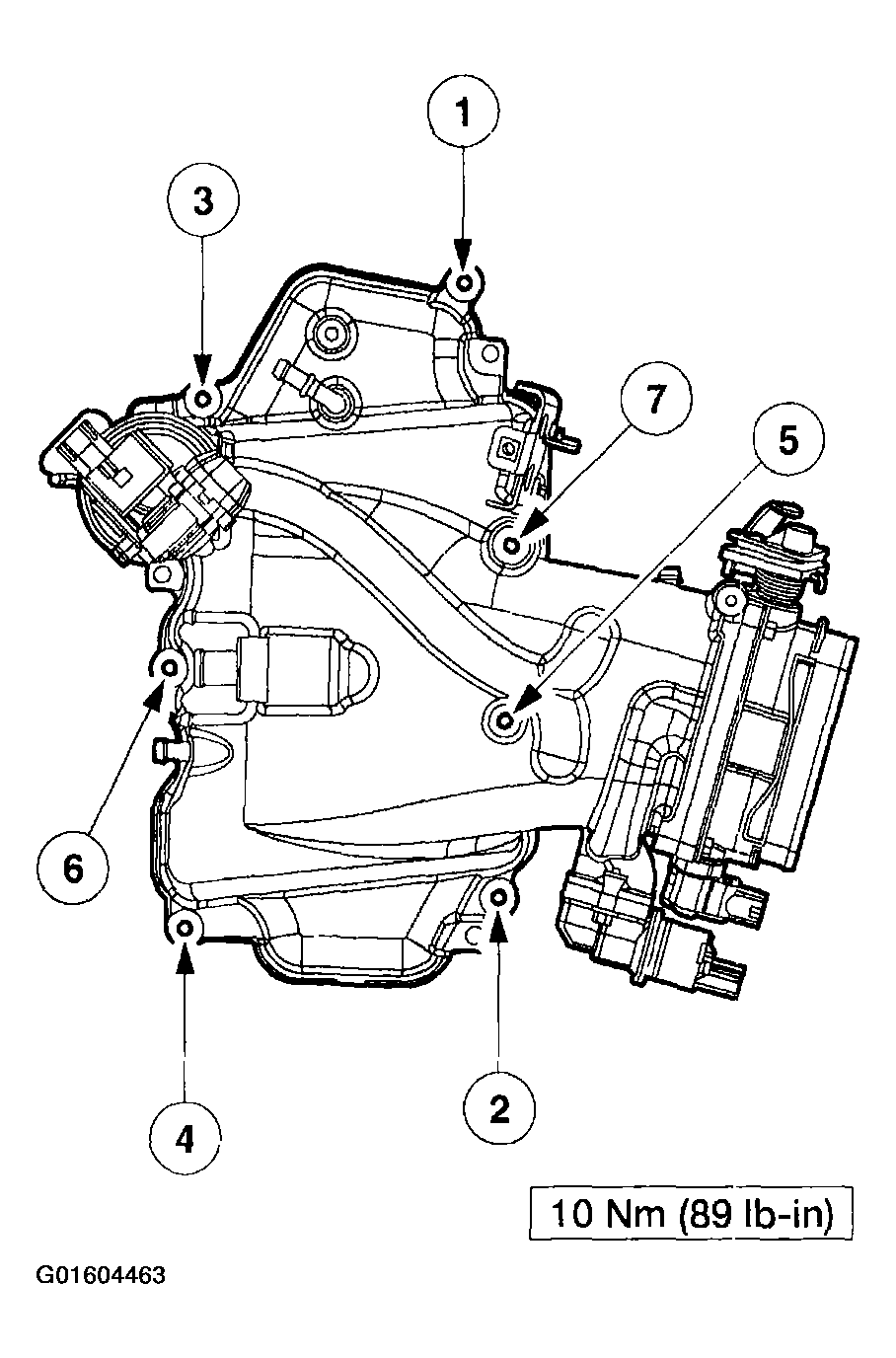

Install the upper intake manifold and bolts in the sequence shown.

Fig 2: Installing Upper Intake Manifold And Bolts In Sequence
Courtesy of FORD MOTOR CO.

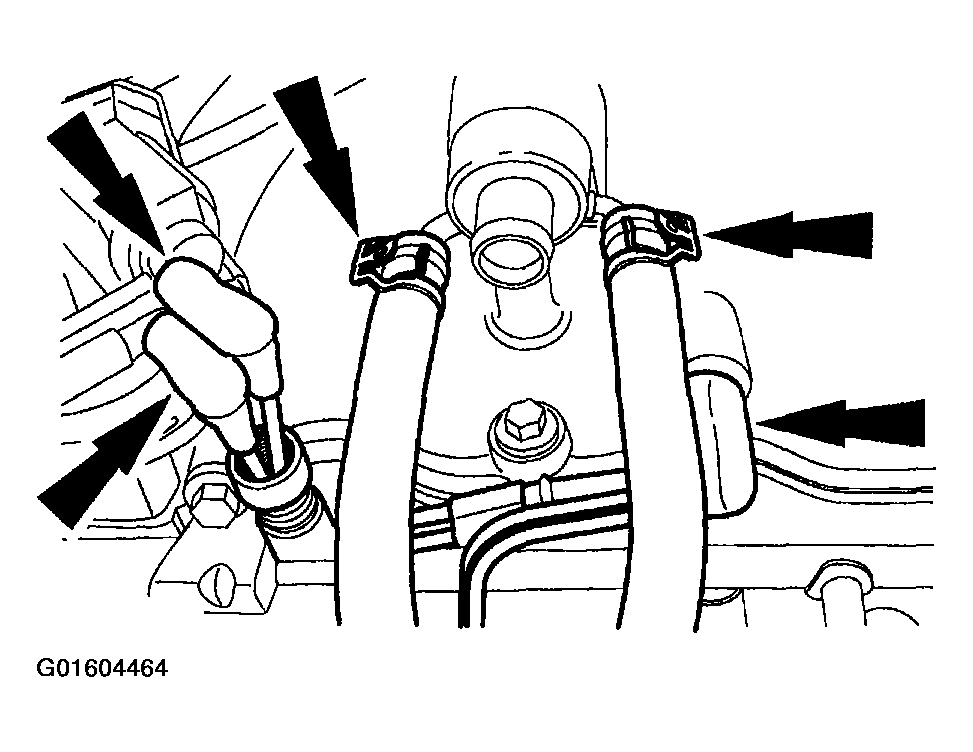

Connect the vacuum hoses and the PCV coolant hoses.

Fig 3: Connecting Vacuum Hoses And PCV Coolant Hoses
Courtesy of FORD MOTOR CO.

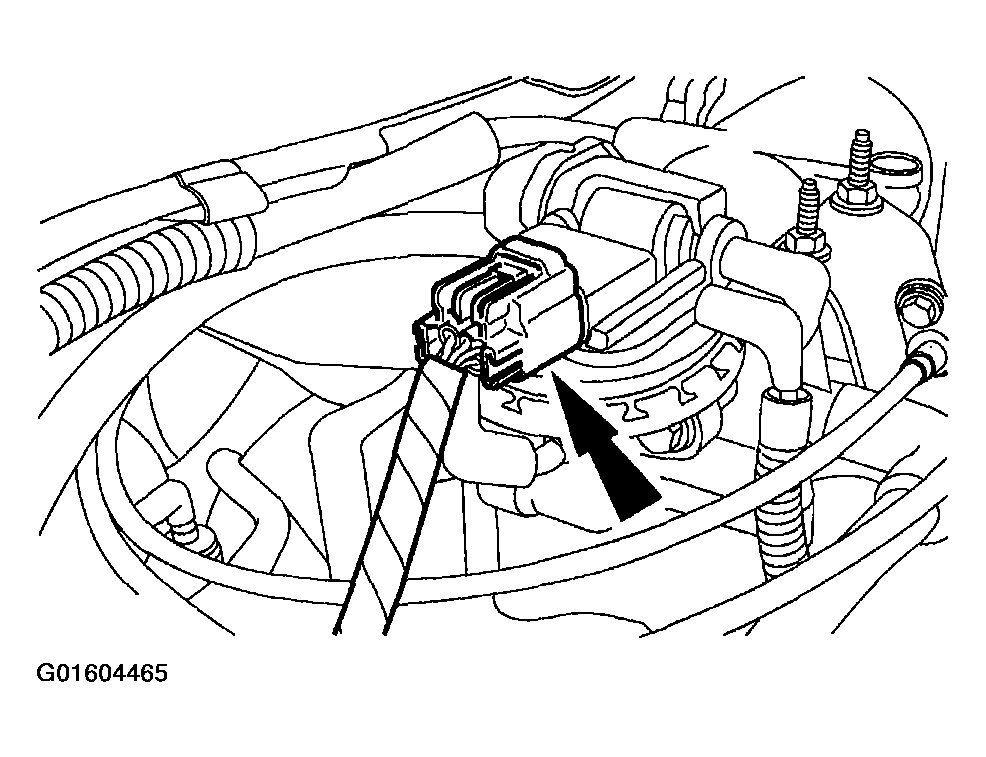

Connect the EGR system module electrical connector.

Fig 4: Connecting EGR System Module Electrical Connector
Courtesy of FORD MOTOR CO.
Connect the positive crankcase ventilation (PVC) tube.

Fig 5: Connecting Positive Crankcase Ventilation Tube
Courtesy of FORD MOTOR CO.

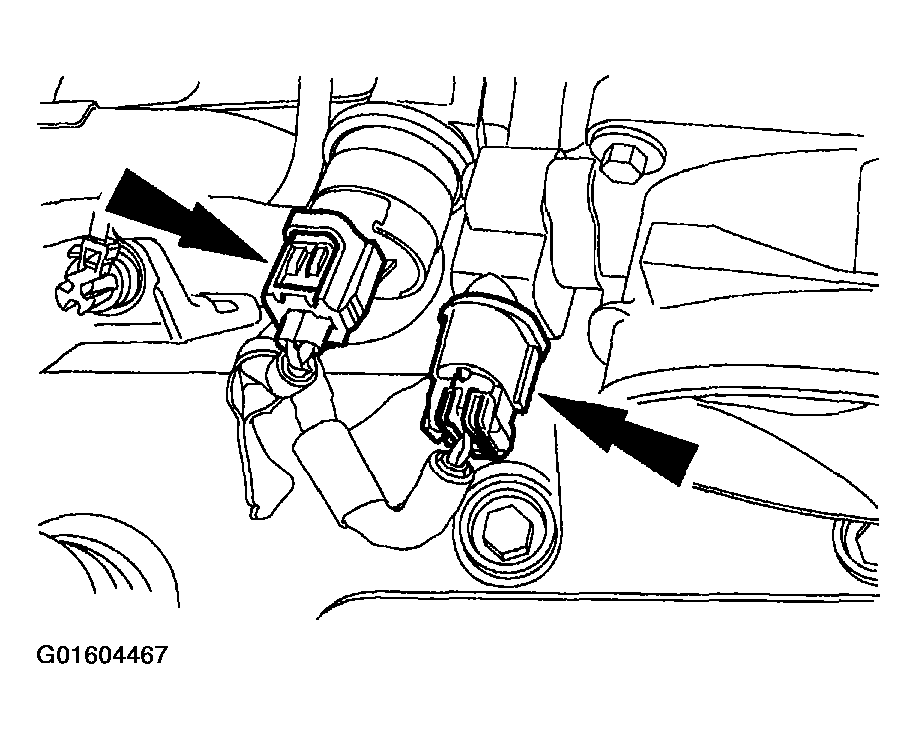

Connect the throttle position (TP) sensor and the idle air control (IAC) sensor electrical connectors.

Fig 6: Connecting Throttle Position Sensor And Idle Air Control Sensor Electrical Connectors
Courtesy of FORD MOTOR CO.

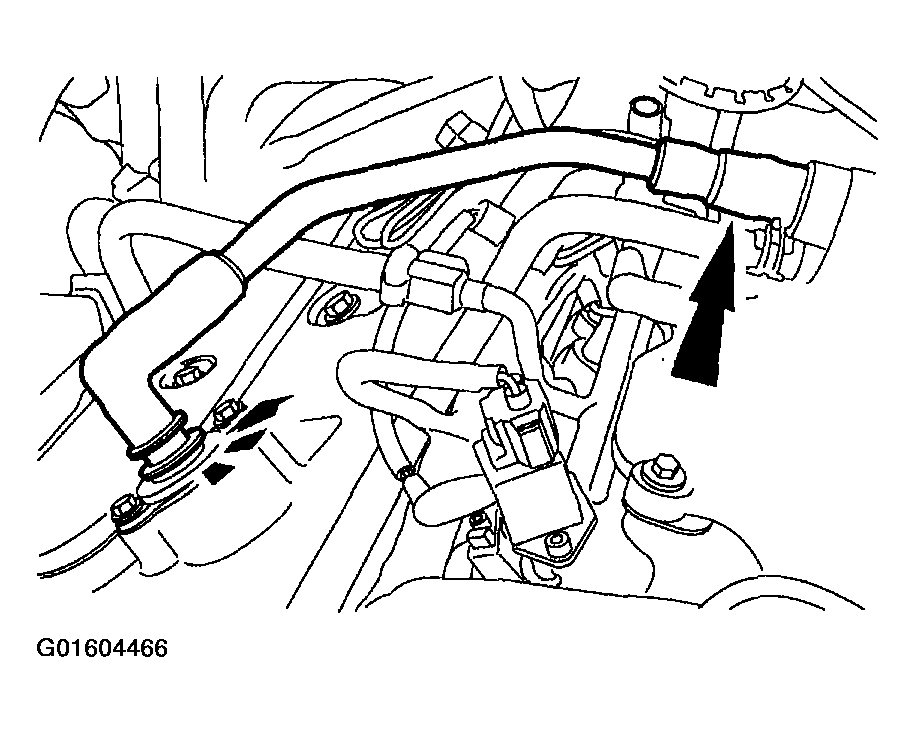

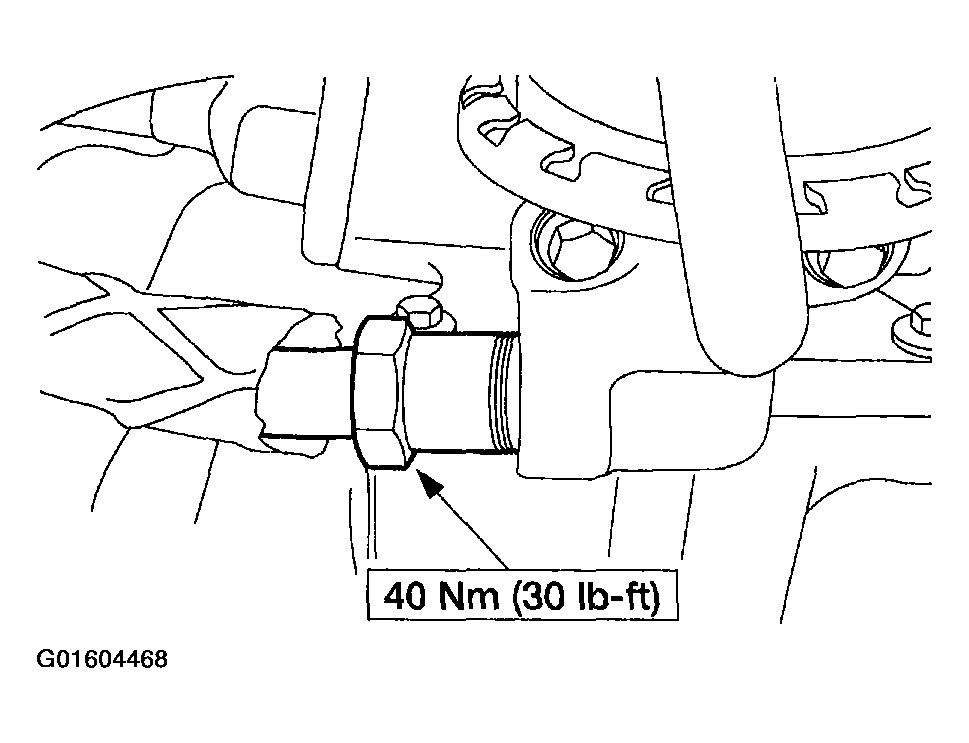

Connect the exhaust gas recirculation (EGR) system module tube from the EGR system module.

Fig 7: Connecting Exhaust Gas Recirculation System Module Tube to EGR System Module
Courtesy of FORD MOTOR CO.

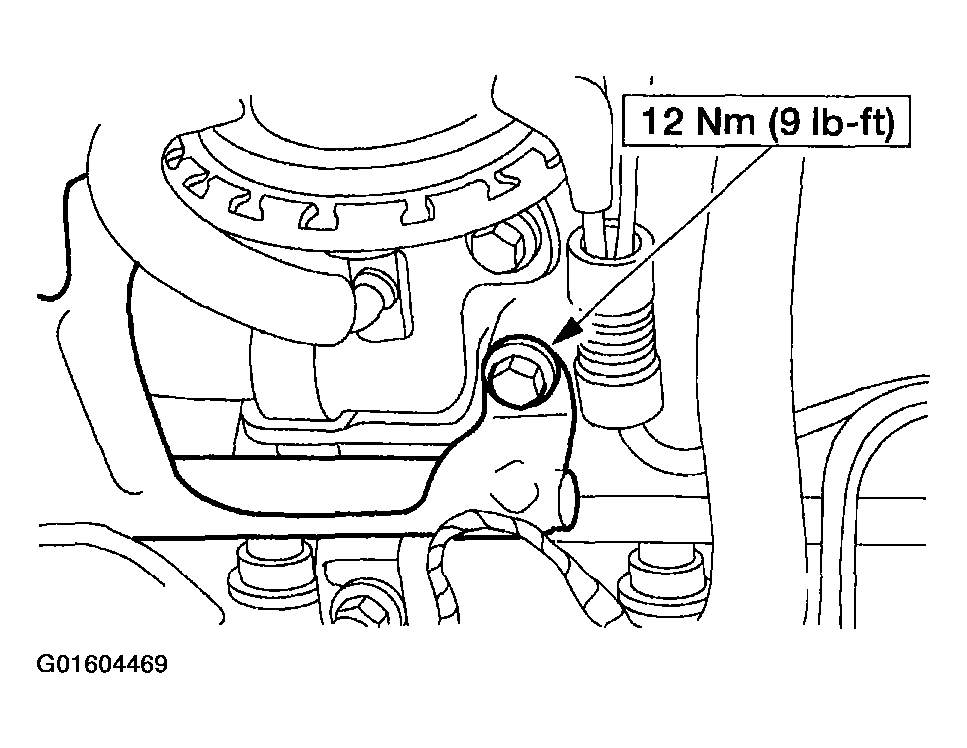

Install the bracket and the bolt.

Fig 8: Installing Bracket And Bolt
Courtesy of FORD MOTOR CO.

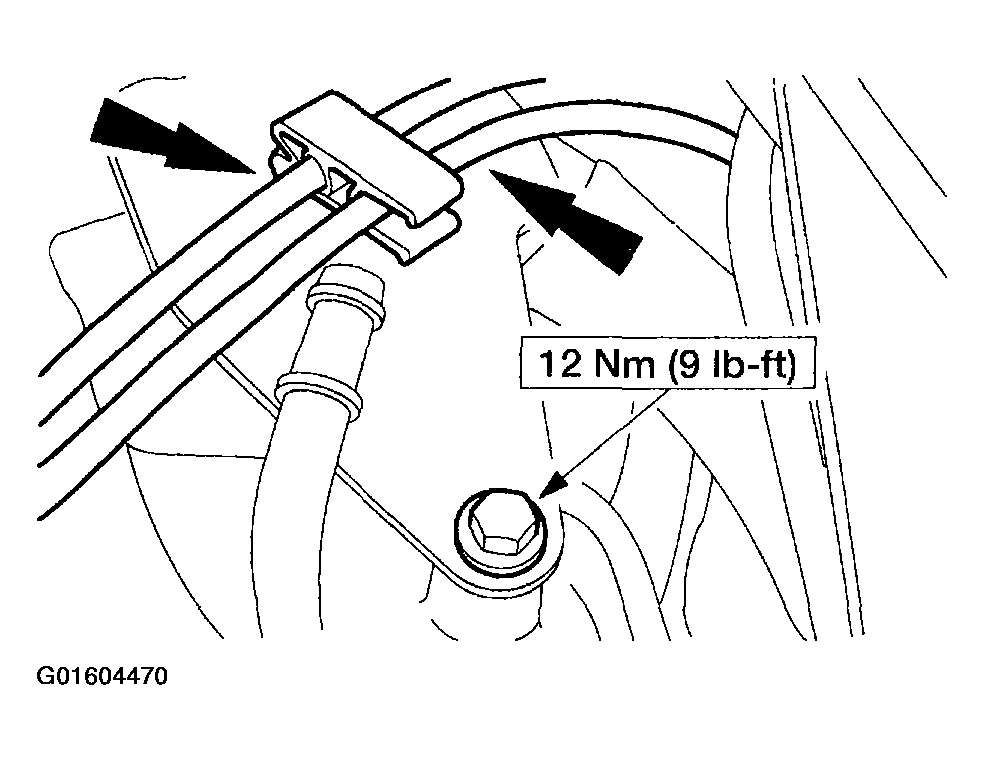

Install the bolt, and connect the acceleration control cables.

Fig 9: Connecting Acceleration Control Cables
Courtesy of FORD MOTOR CO.

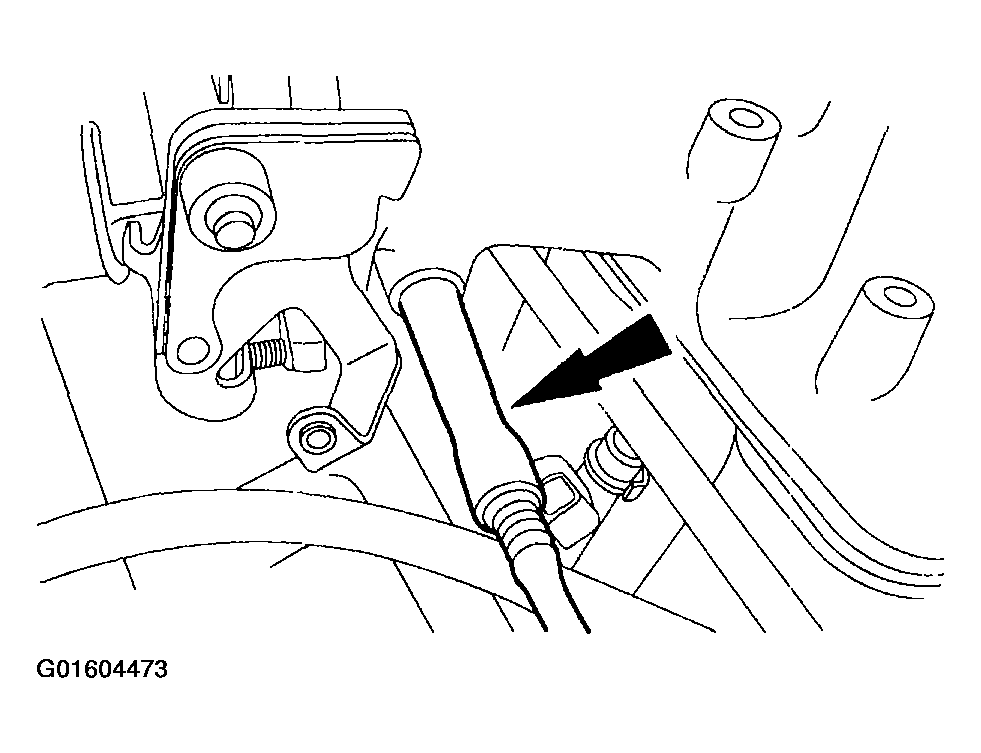

Connect the vacuum hose.

Fig 10: Connecting Vacuum Hose
Courtesy of FORD MOTOR CO.
Install the accelerator control cables.

Fig 11: Installing Accelerator Control Cables
Courtesy of FORD MOTOR CO.

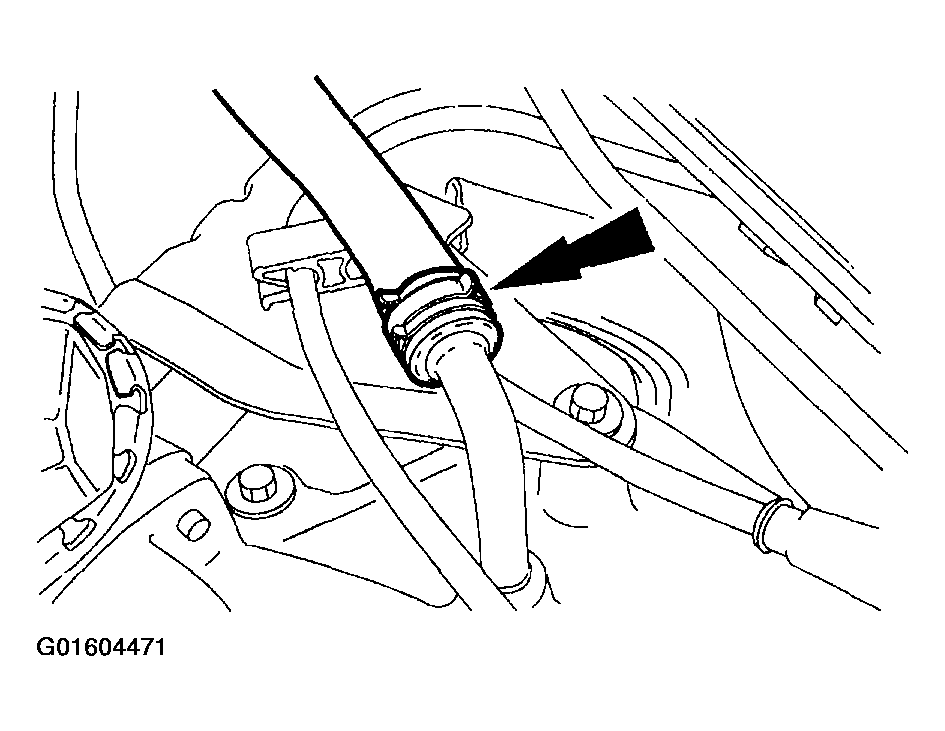

Connect the fuel vapor hose.

Fig 12: Connecting Fuel Vapor Hose
Courtesy of FORD MOTOR CO.

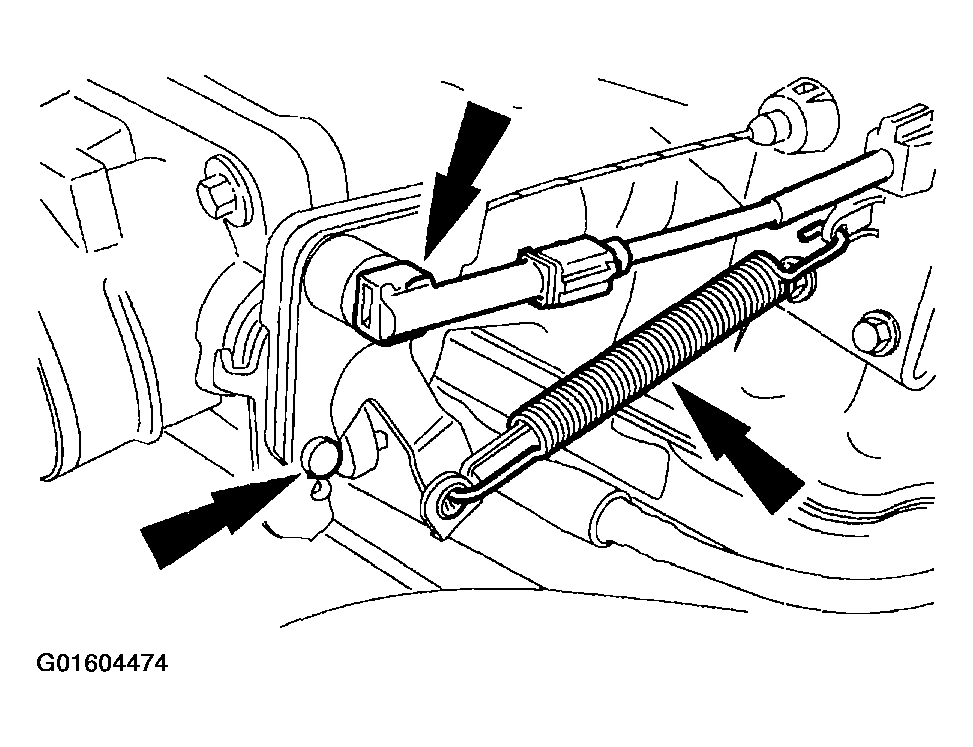

Connect the accelerator cable, the speed control cable and the return spring.

Fig 13: Connecting Accelerator Cable, Speed Control Cable And Return Spring
Courtesy of FORD MOTOR CO.

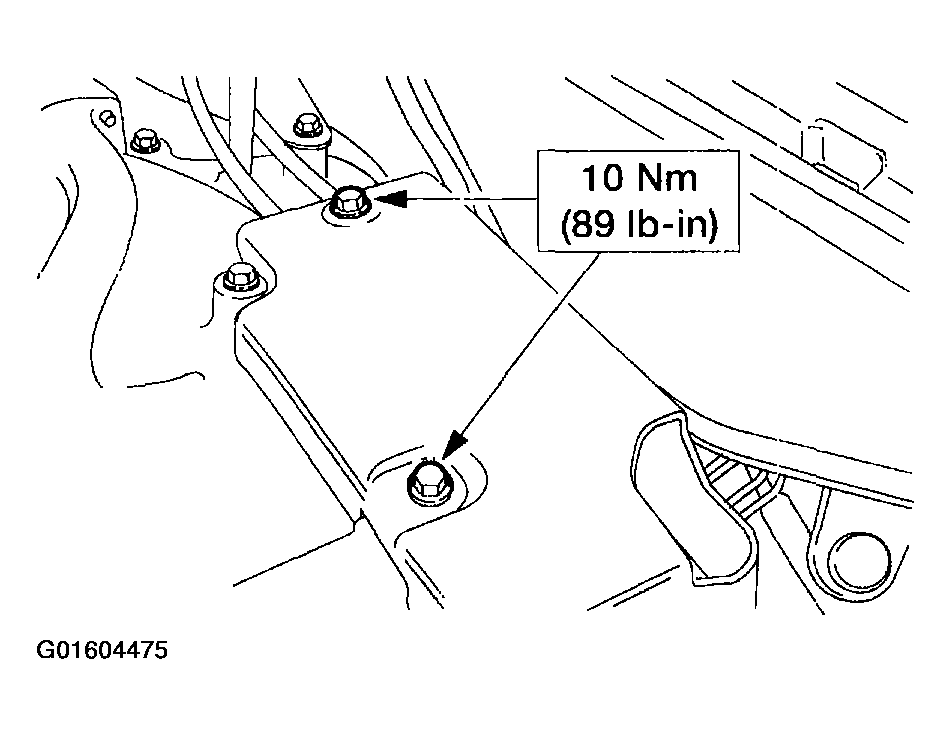

Install the accelerator control splash shield.

Fig 14: Installing Accelerator Control Splash Shield
Courtesy of FORD MOTOR CO.
Install the air cleaner outlet tube. .
