Removal and Installation

Remove the bolts and the accelerator splash shield.

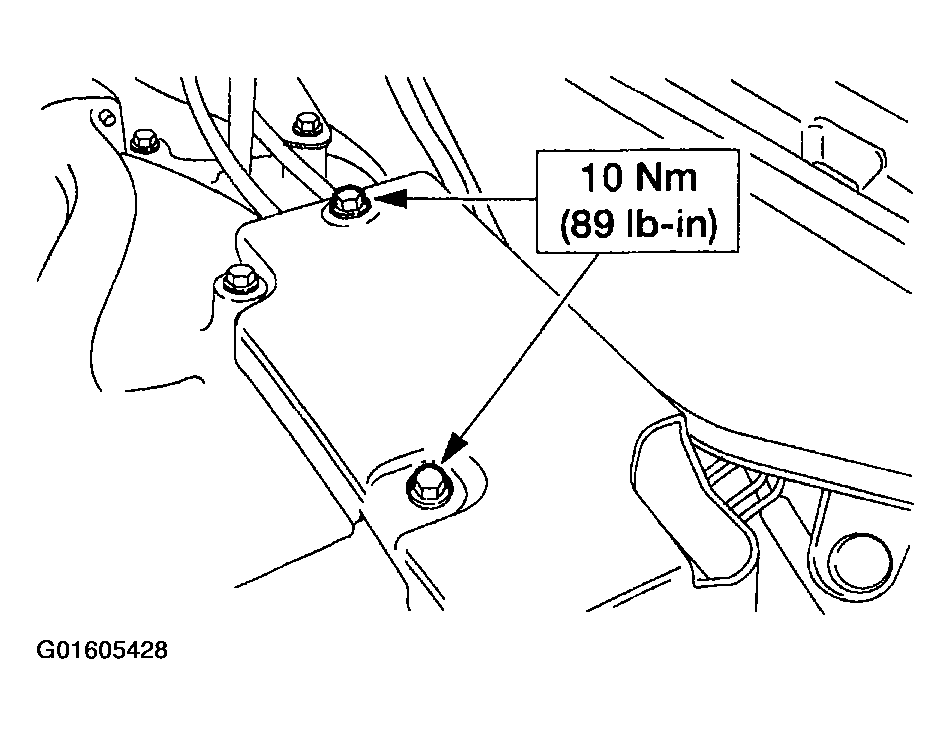

Fig 1: Removing Accelerator Splash Shield Bolts
Courtesy of FORD MOTOR CO.
Remove the spring and disconnect the accelerator and speed control cables.

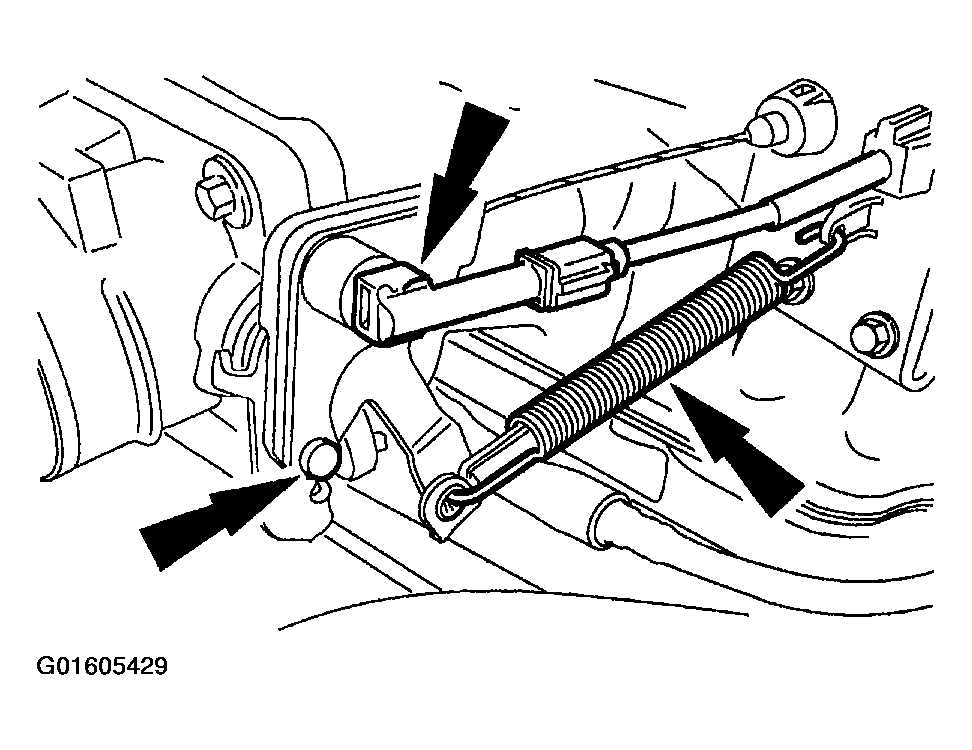

Fig 2: Identifying spring, Accelerator And Speed Control Cables
Courtesy of FORD MOTOR CO.
Disconnect the accelerator cable from the bracket.

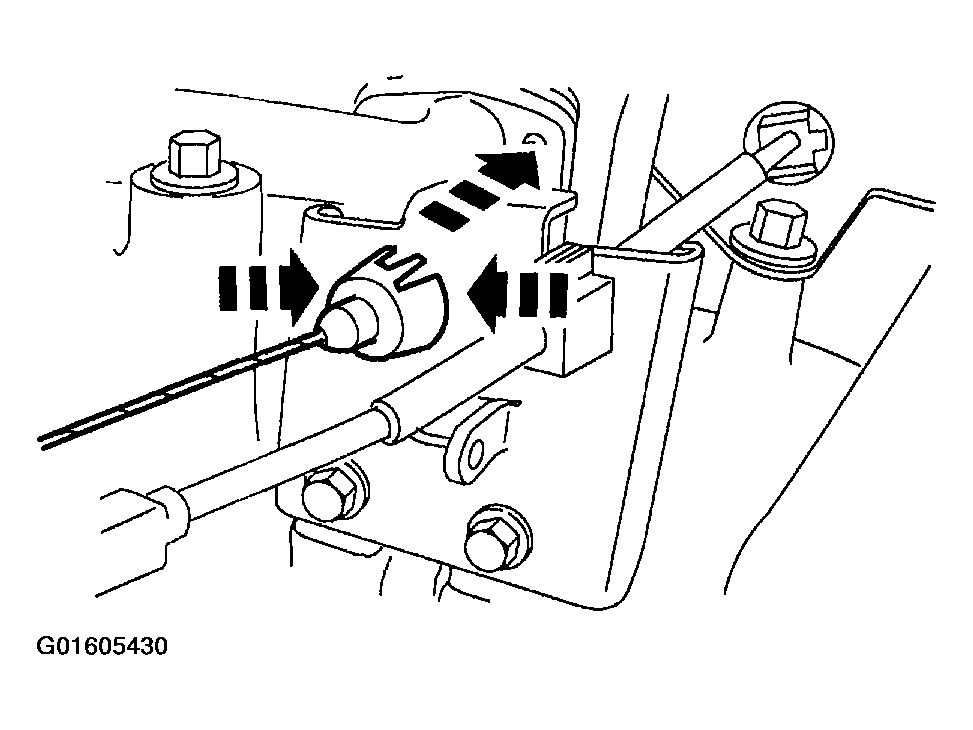

Fig 3: Disconnecting Accelerator Cable From Bracket
Courtesy of FORD MOTOR CO.
Disconnect the speed control cable from the bracket.

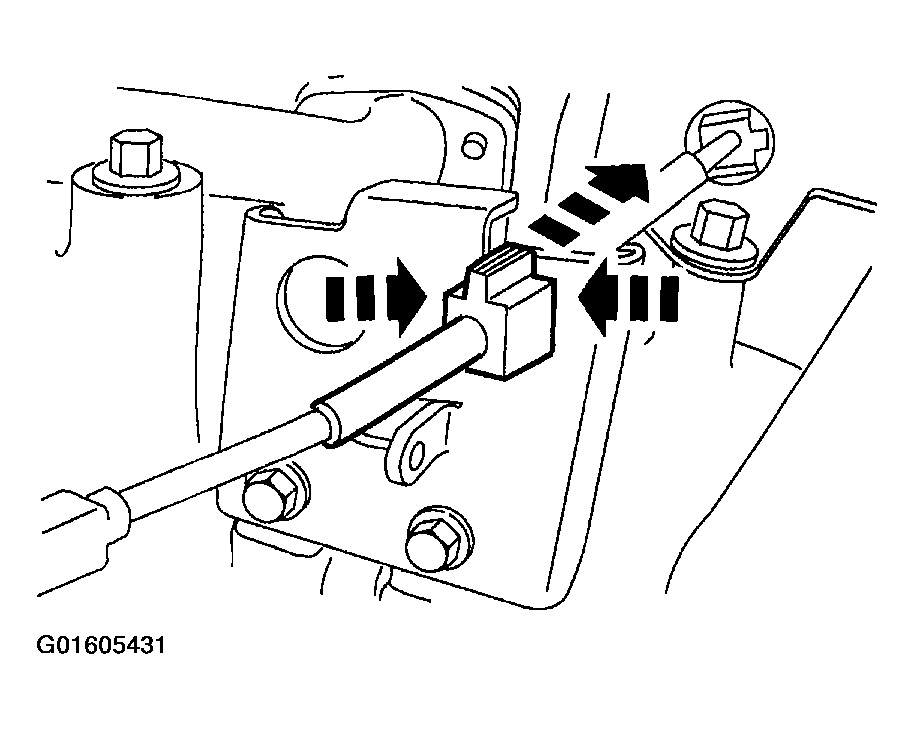

Fig 4: Disconnecting Speed Control Cable From Bracket
Courtesy of FORD MOTOR CO.
Remove the bolts and the accelerator cable bracket.

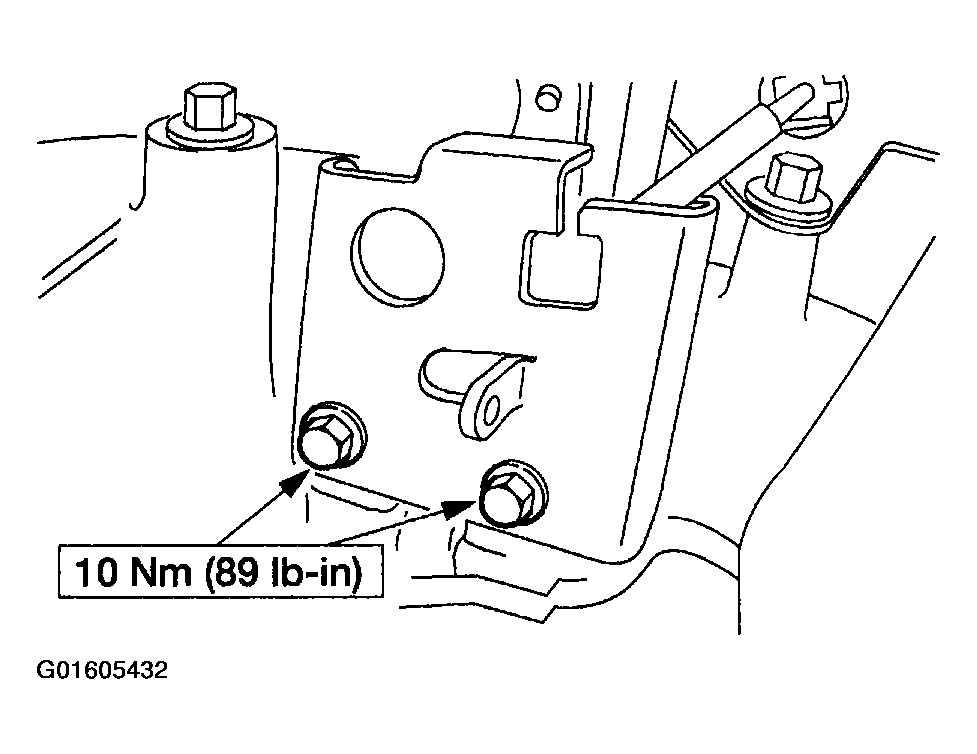

Fig 5: Removing Accelerator Cable Bracket Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
