Removal and Installation

CAUTION: The adjustable pedal system must be indexed whenever the brake pedal assembly or the accelerator pedal assembly is serviced. For additional information, refer to HYDRAULIC BRAKE ACTUATION .

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove the accelerator cable from the accelerator pedal and shaft.

Fig 1: Removing Accelerator Cable From Accelerator Pedal And Shaft
Courtesy of FORD MOTOR CO.
Disconnect the adjustable drive cable from the brake pedal

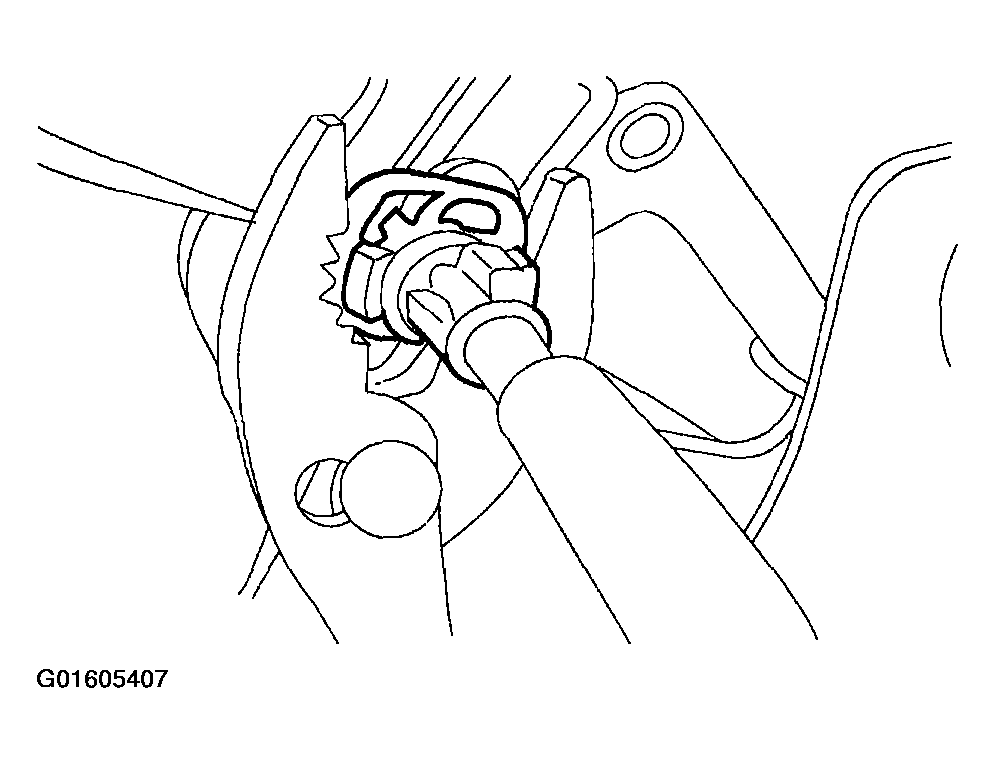

Fig 2: Disconnecting Adjustable Drive Cable From Brake Pedal
Courtesy of FORD MOTOR CO.
Disconnect the drive motor electrical connector.

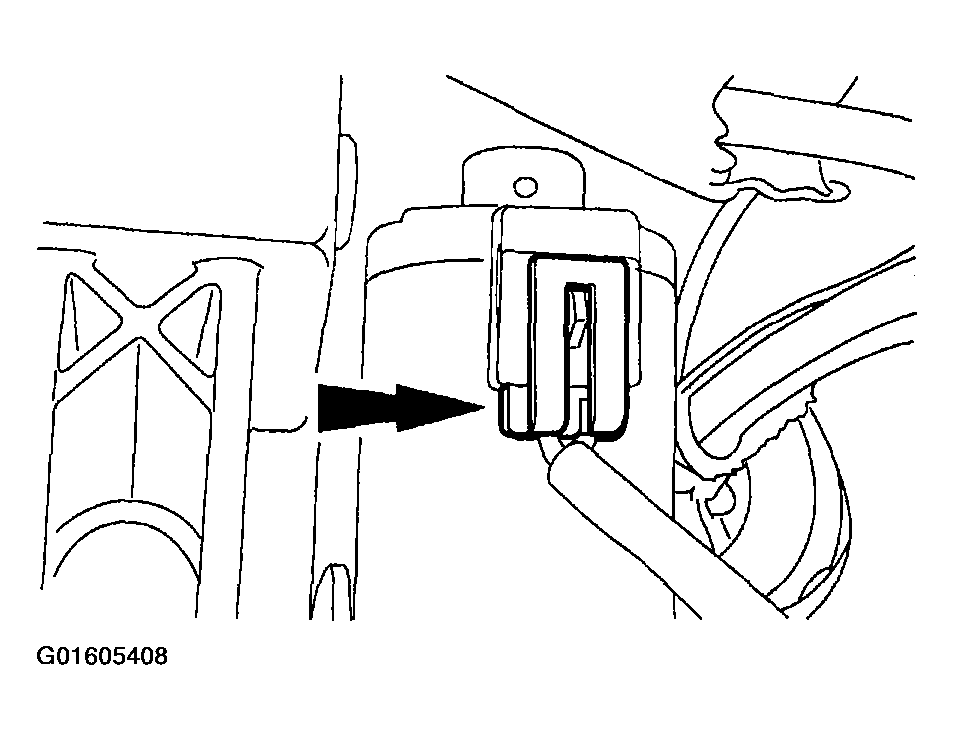

Fig 3: Disconnecting Drive Motor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the two nuts and the accelerator pedal and shaft.

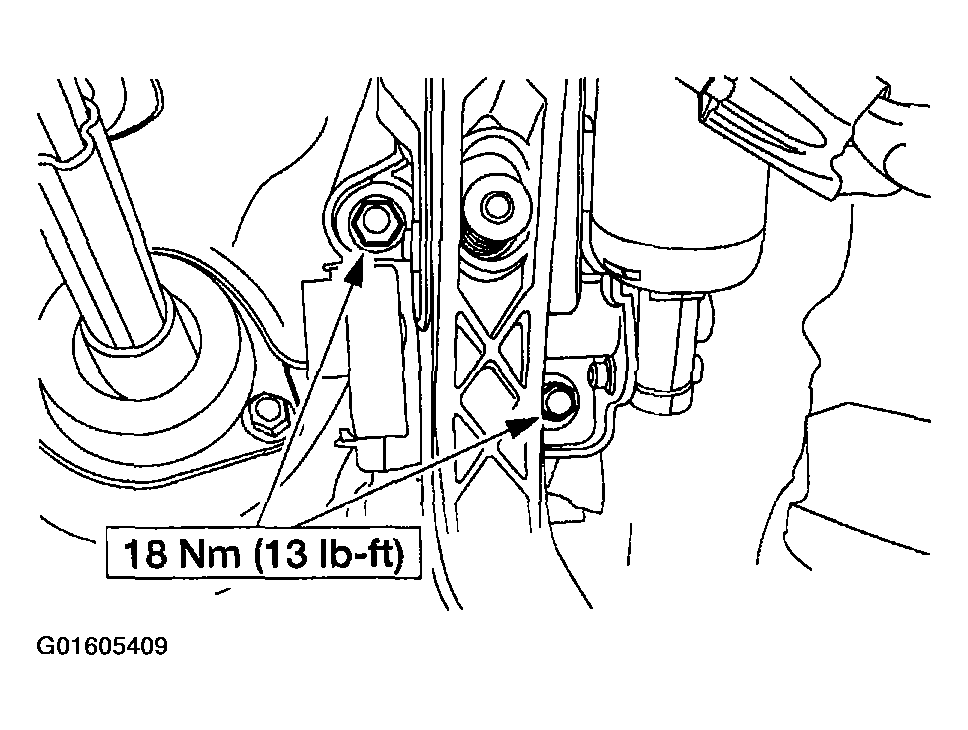

Fig 4: Removing Accelerator Pedal And Shaft Nuts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Index the adjustable pedals. For additional information, refer to HYDRAULIC BRAKE ACTUATION .
