Accelerometer/Yaw Rate Sensor C3179

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

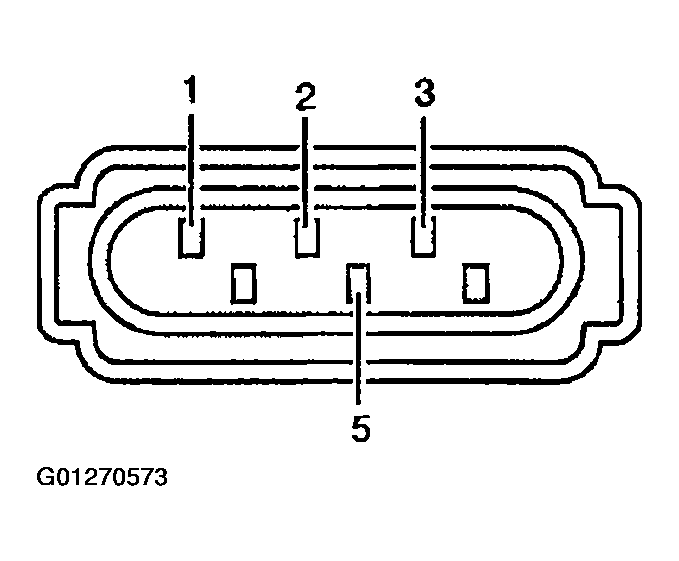

Fig 1: Identifying Accelerometer/Yaw Rate Sensor C3179 Connector Pin(s)

Courtesy of FORD MOTOR CO.

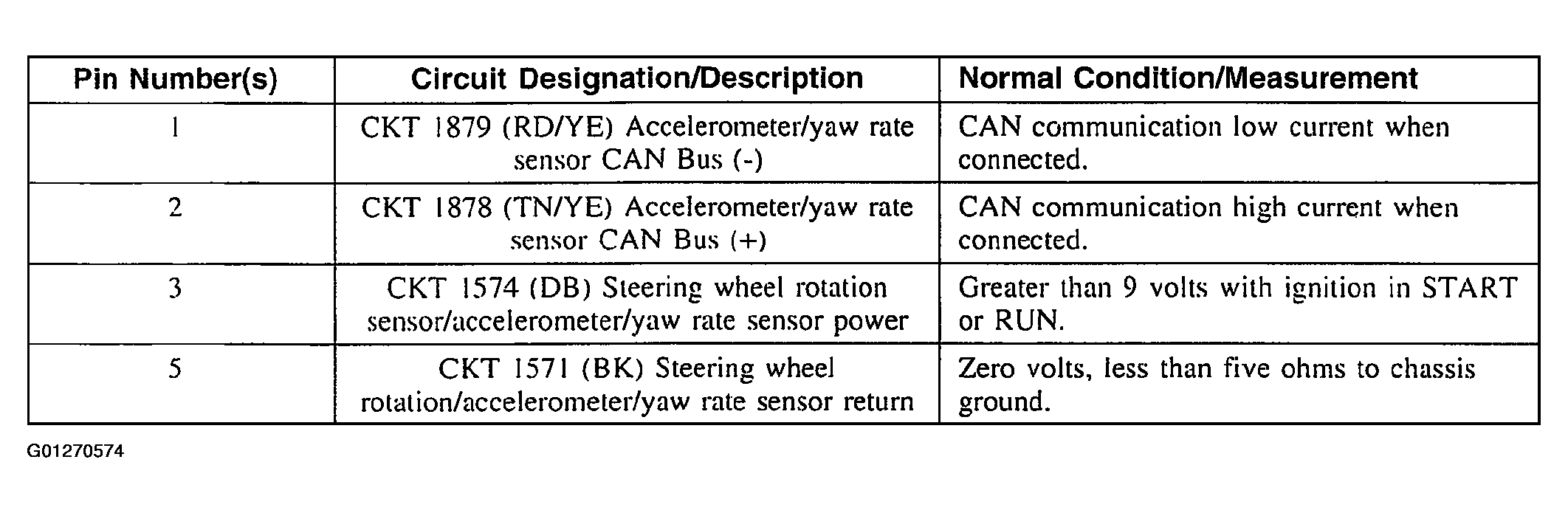

Fig 2: Identifying Accelerometer/Yaw Rate Sensor C3179 Connector Pin Reference Table

Courtesy of FORD MOTOR CO.
