Pinpoint Test I: Transmission Control Switch (TCS) Is Not Operating Correctly: Testing

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

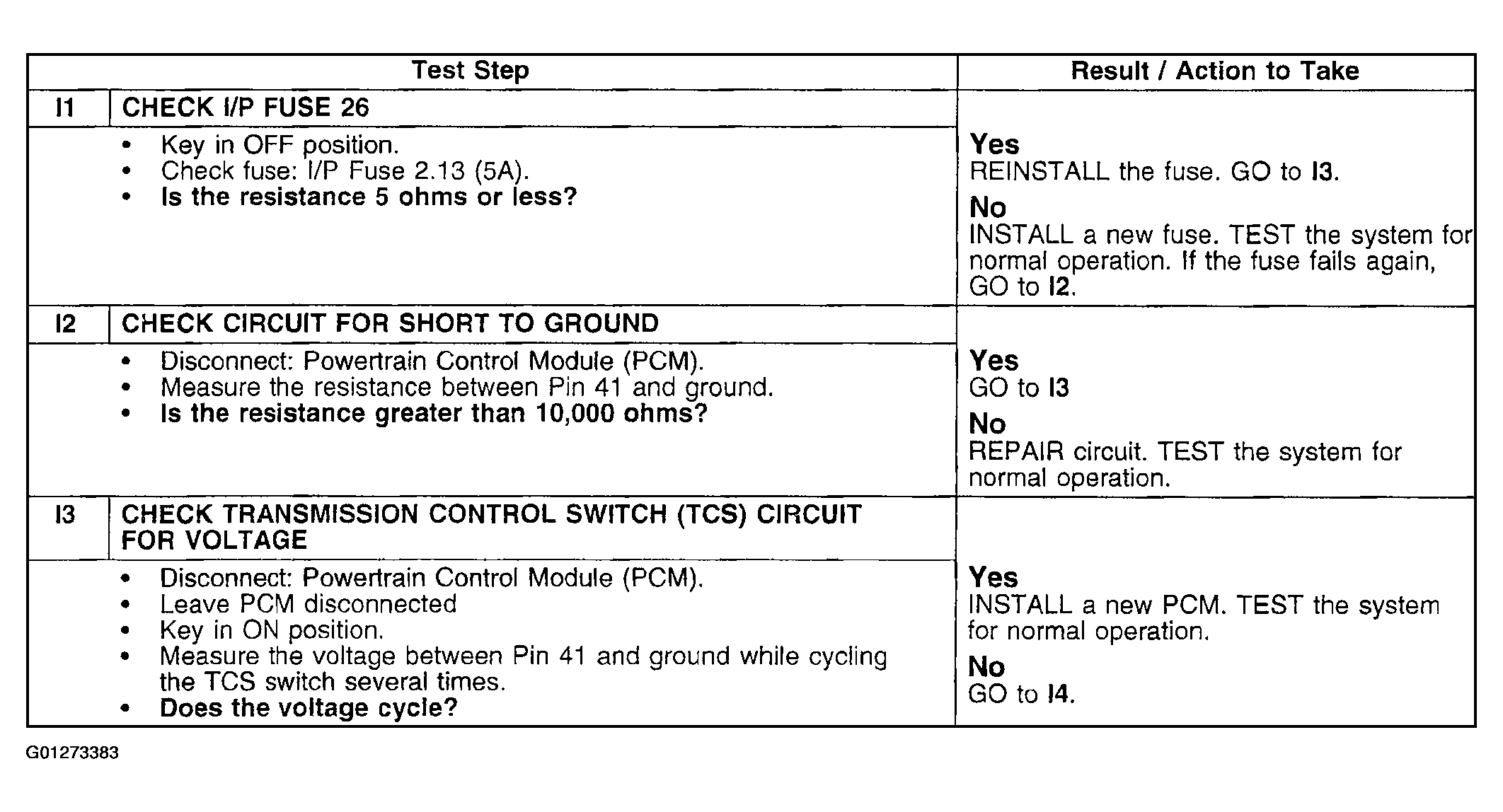

Fig 1: Pinpoint Test I: Transmission Control Switch (TCS) Is Not Operating Correctly (1 Of 2)
G01273383Courtesy of FORD MOTOR CO.

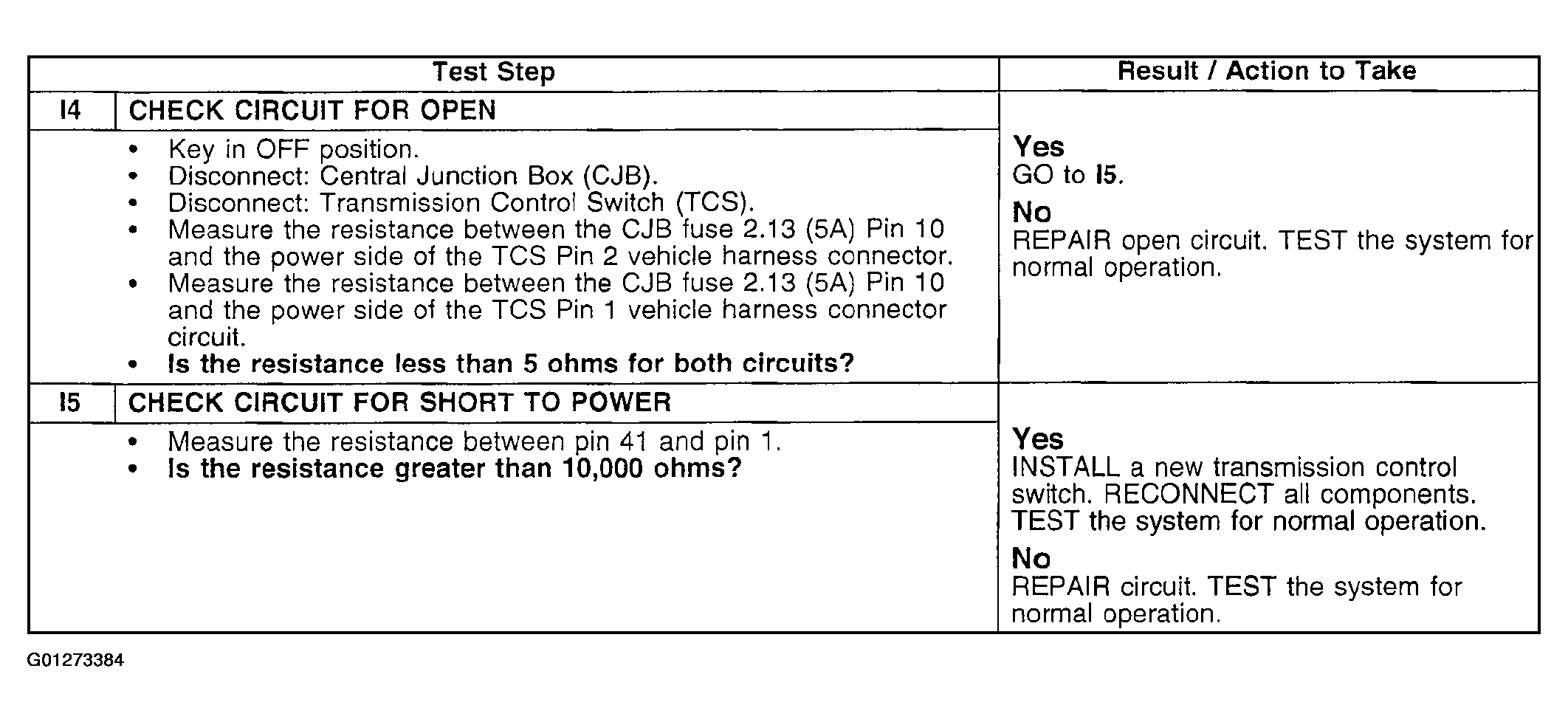

Fig 2: Pinpoint Test I: Transmission Control Switch (TCS) Is Not Operating Correctly (2 Of 2)
G01273384Courtesy of FORD MOTOR CO.
