Park System: Installation: Notes

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Illustration 2 of 2. Install the components in the order indicated in the following illustration and table.

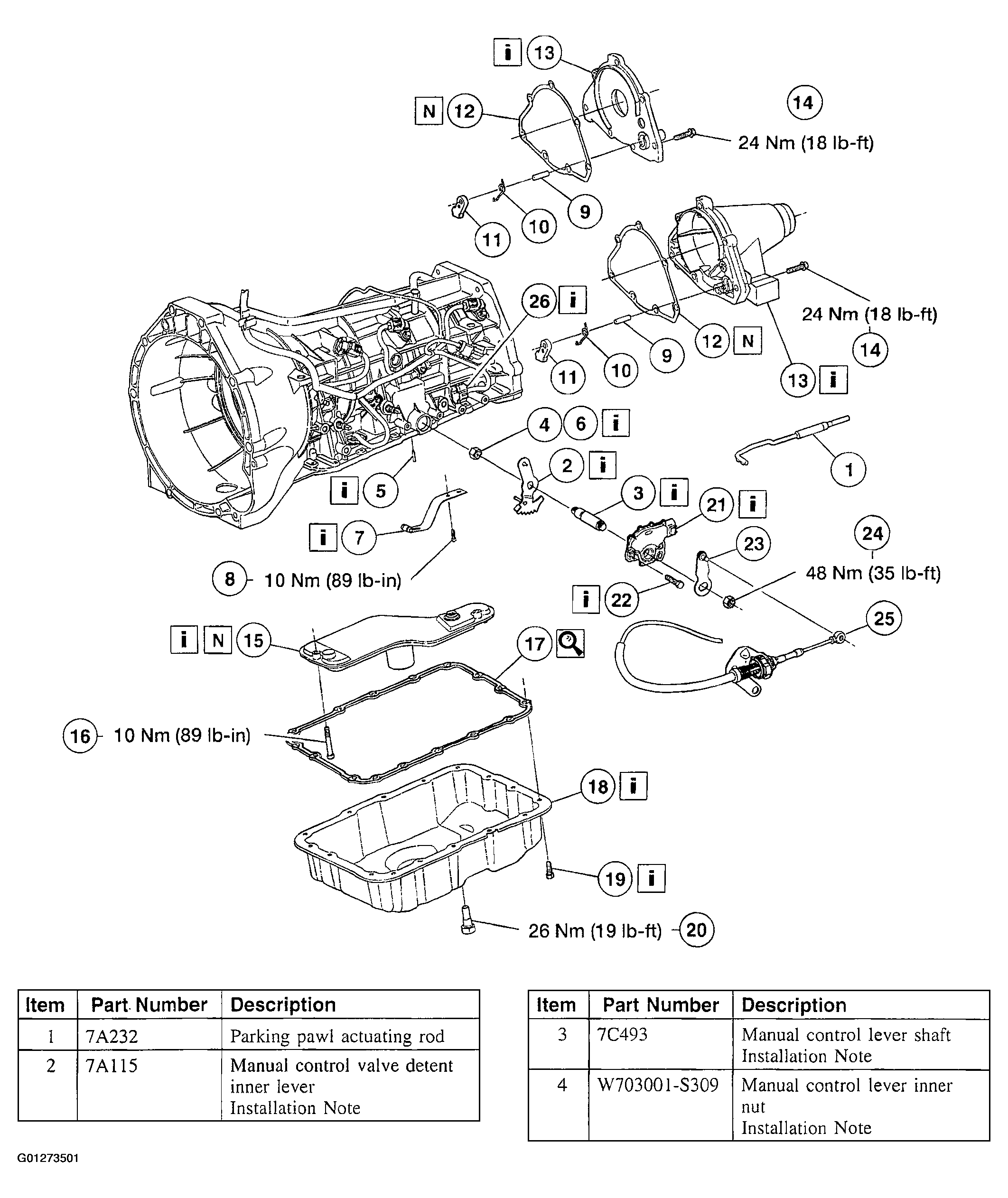

Fig 1: Installing Park System Components (1 Of 2)
Courtesy of FORD MOTOR CO.

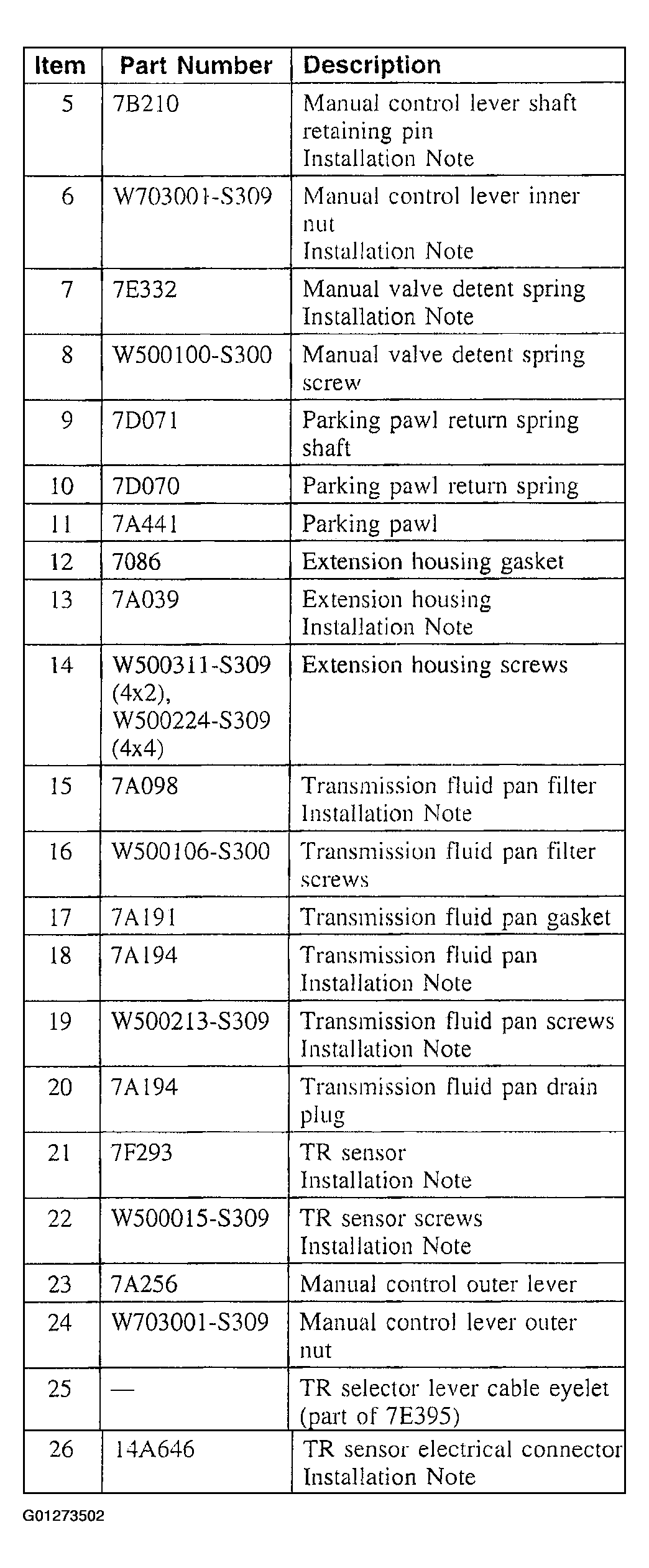

Fig 2: Installing Park System Components (2 Of 2)
Courtesy of FORD MOTOR CO.
On 4x4 vehicles, install the transfer case assembly. For additional information, refer to FOUR-WHEEL DRIVE SYSTEMS .
On 4x2 vehicles, install the driveshaft. For additional information, refer to DRIVELINE SYSTEM .
On 4x2 vehicles, install the rear transmission support insulator. For additional information, refer to TRANSMISSION SUPPORT INSULATOR - 4X2 .
On 4x2 vehicles, install the exhaust. For additional information, refer to EXHAUST SYSTEM .
Partially fill the transmission. For additional information, refer to TRANSMISSION FLUID DRAIN AND REFILL - WITHOUT TORQUE CONVERTER DRAIN PLUG .
