WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

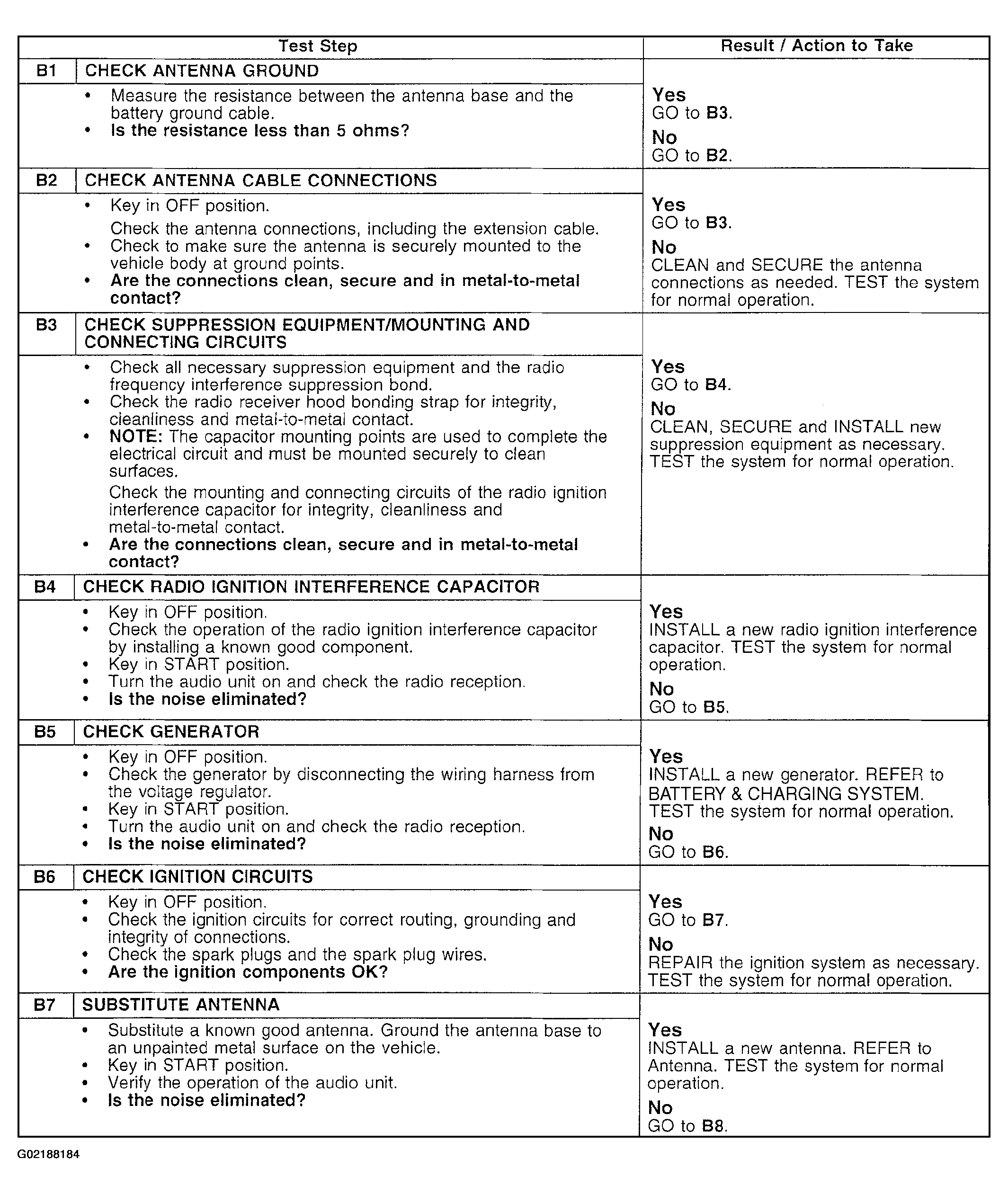

Fig 1: Pinpoint Test B Chart - Poor Reception (B1-B7)
Courtesy of FORD MOTOR CO.

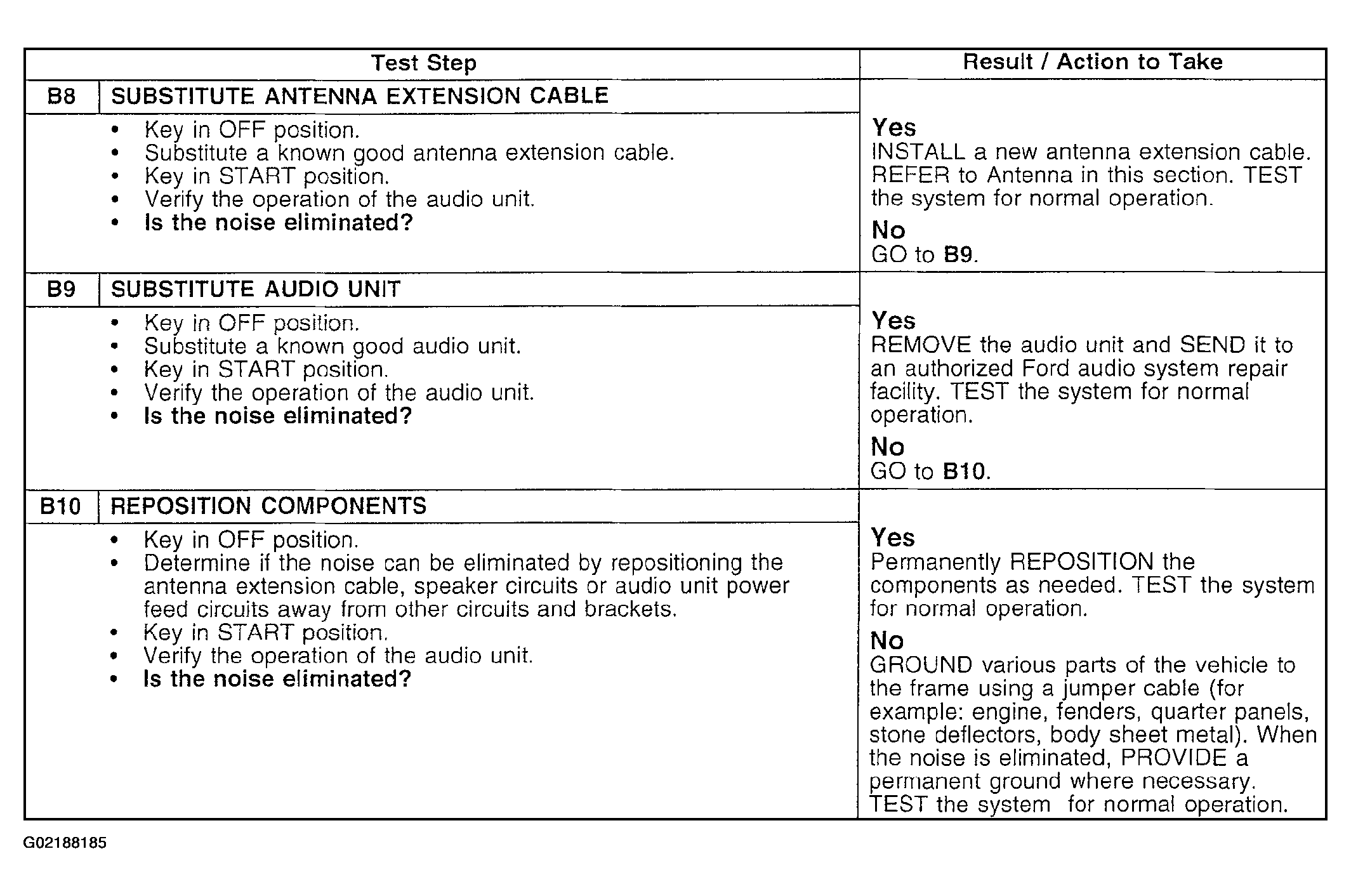

Fig 2: Pinpoint Test B Chart - Poor Reception (B8-B10)
