WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

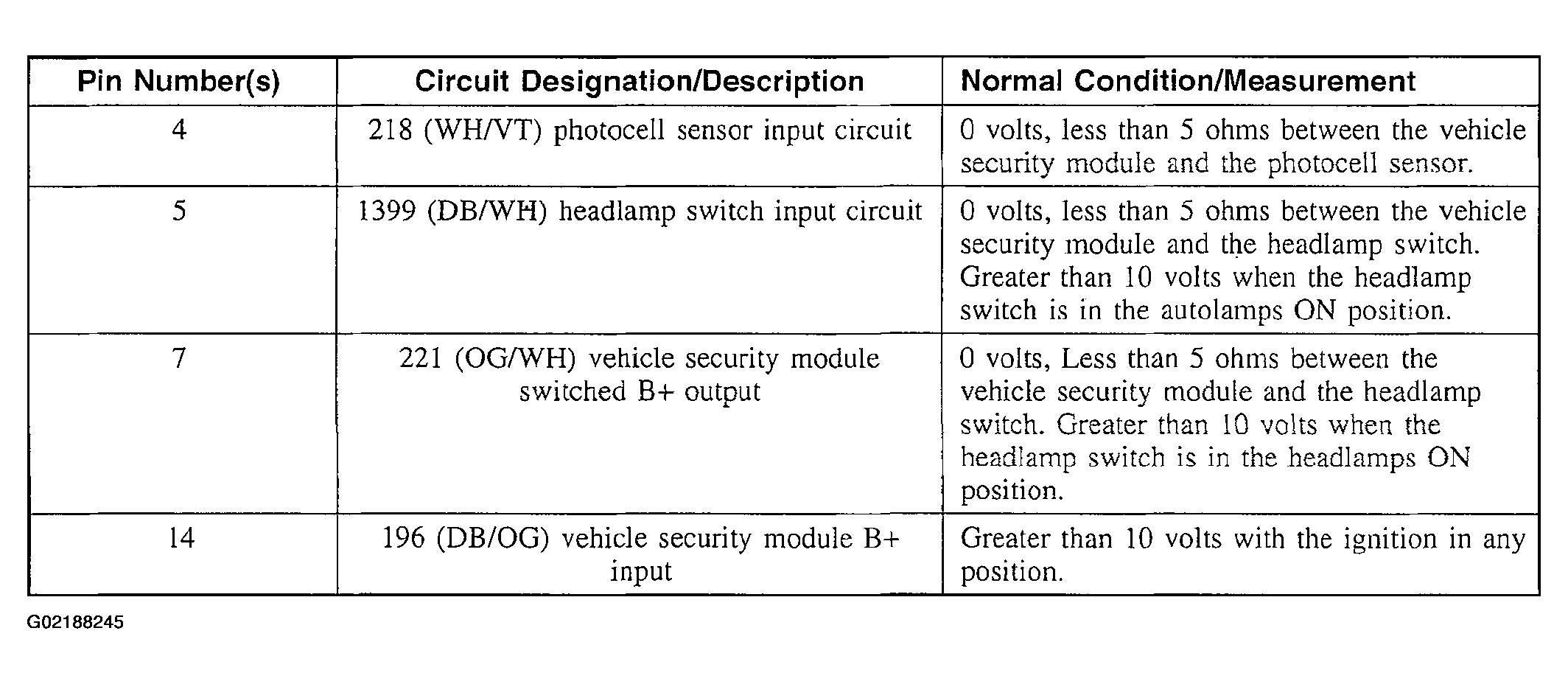

Fig 1: Identifying Vehicle Security Module C3008e (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Identifying Vehicle Security Module C3008e (2 Of 2)
