Removal and Installation: Notes

WARNING: This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the right rear quarter trim panel. Refer to BODY SYSTEM - INTERIOR .
Remove the components in the order indicated in the following illustration and the table.

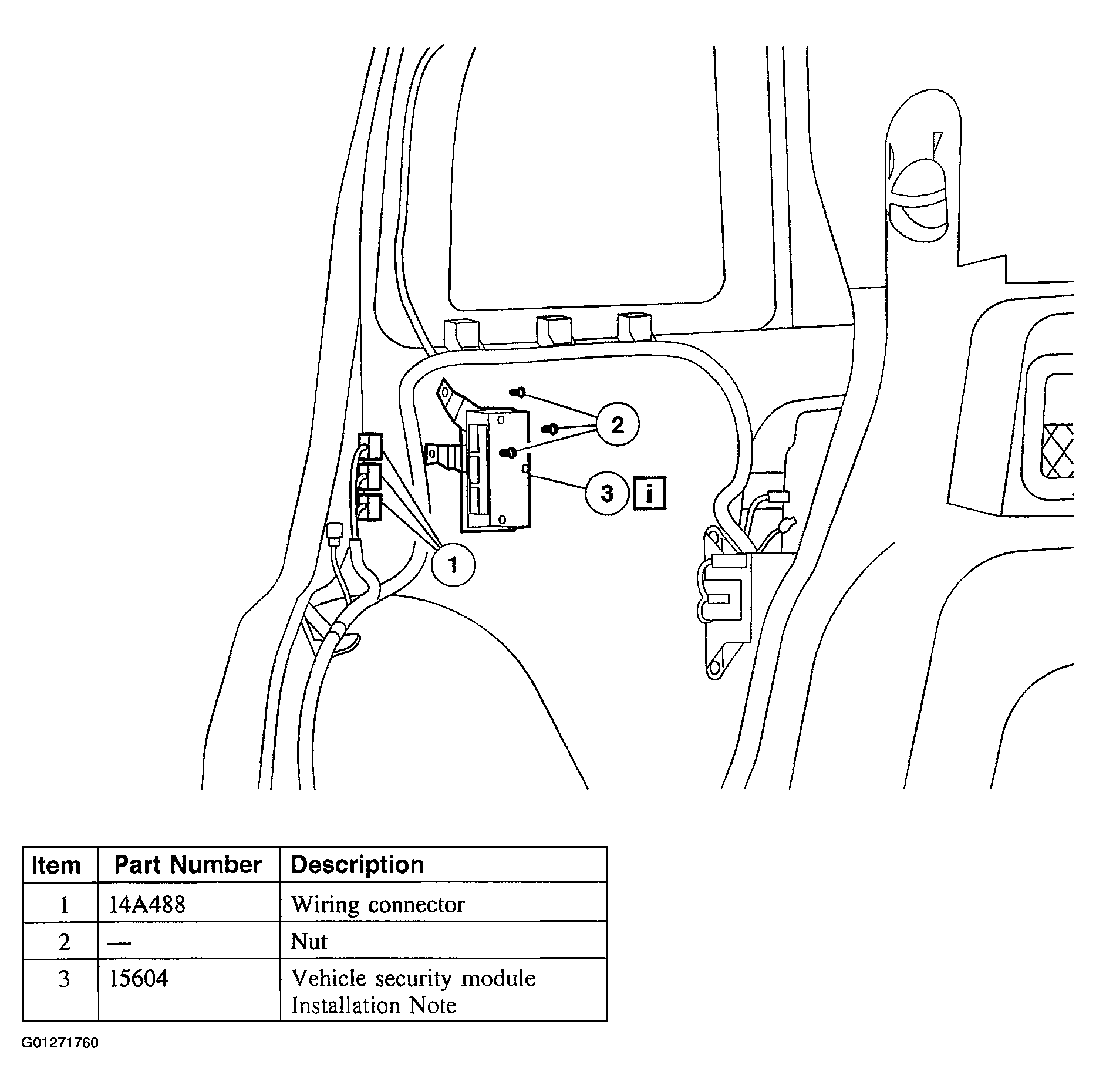

Fig 1: Identifying Vehicle Security Module Components Removing Sequence
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
