Section 275 (Interior Lighting System)
›
Diagnosis And Testing
›
Interior Lighting
›
Connector Circuit Reference
›
Vehicle Security Module C3008d
Vehicle Security Module C3008d
WARNING:
This page is about a different car, the 2003 Mercury Mountaineer and 2003 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Vehicle Security Module C3008d
Courtesy of FORD MOTOR CO.

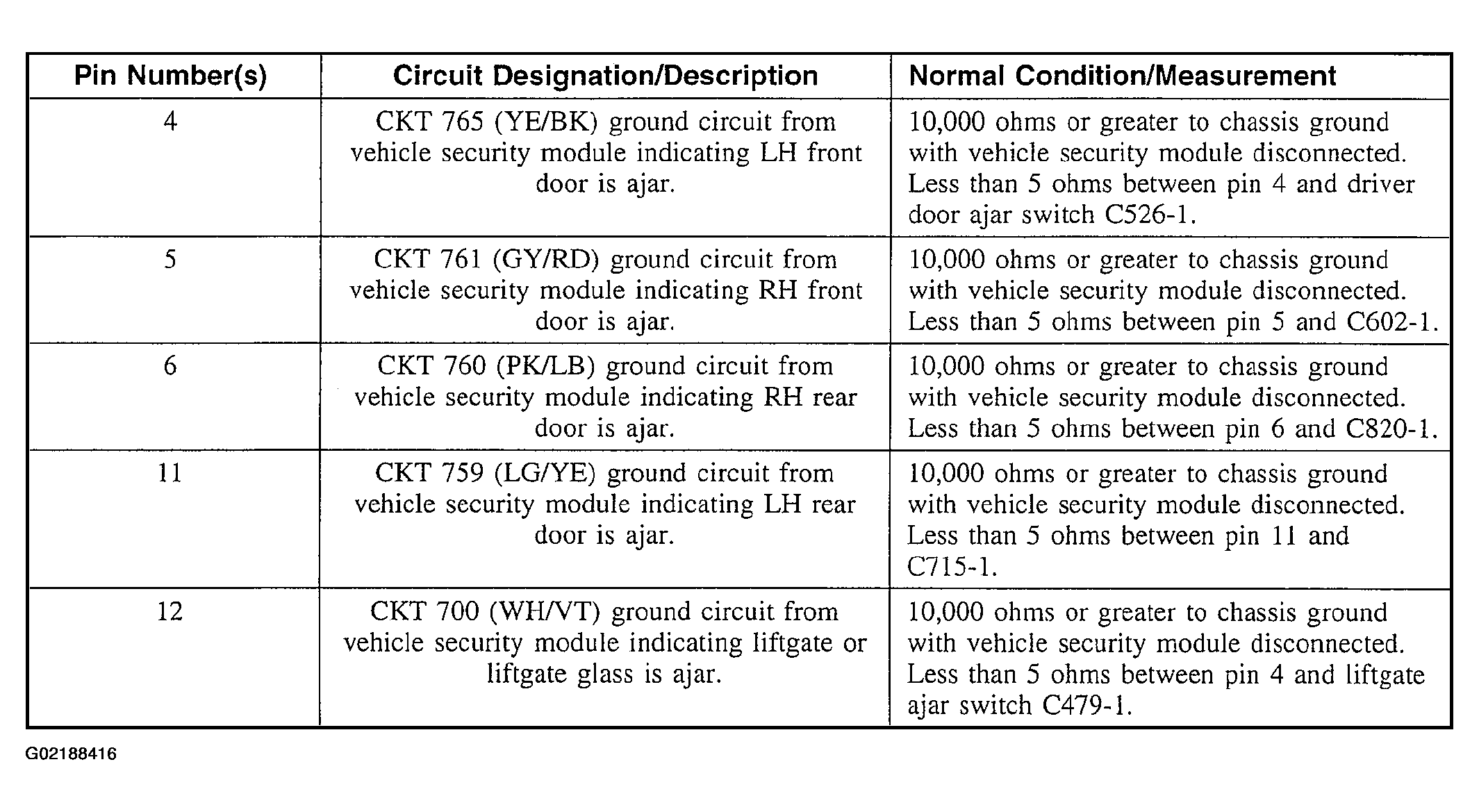

Fig 2: Identifying Description Table
Courtesy of FORD MOTOR CO.
