Symptom Chart

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

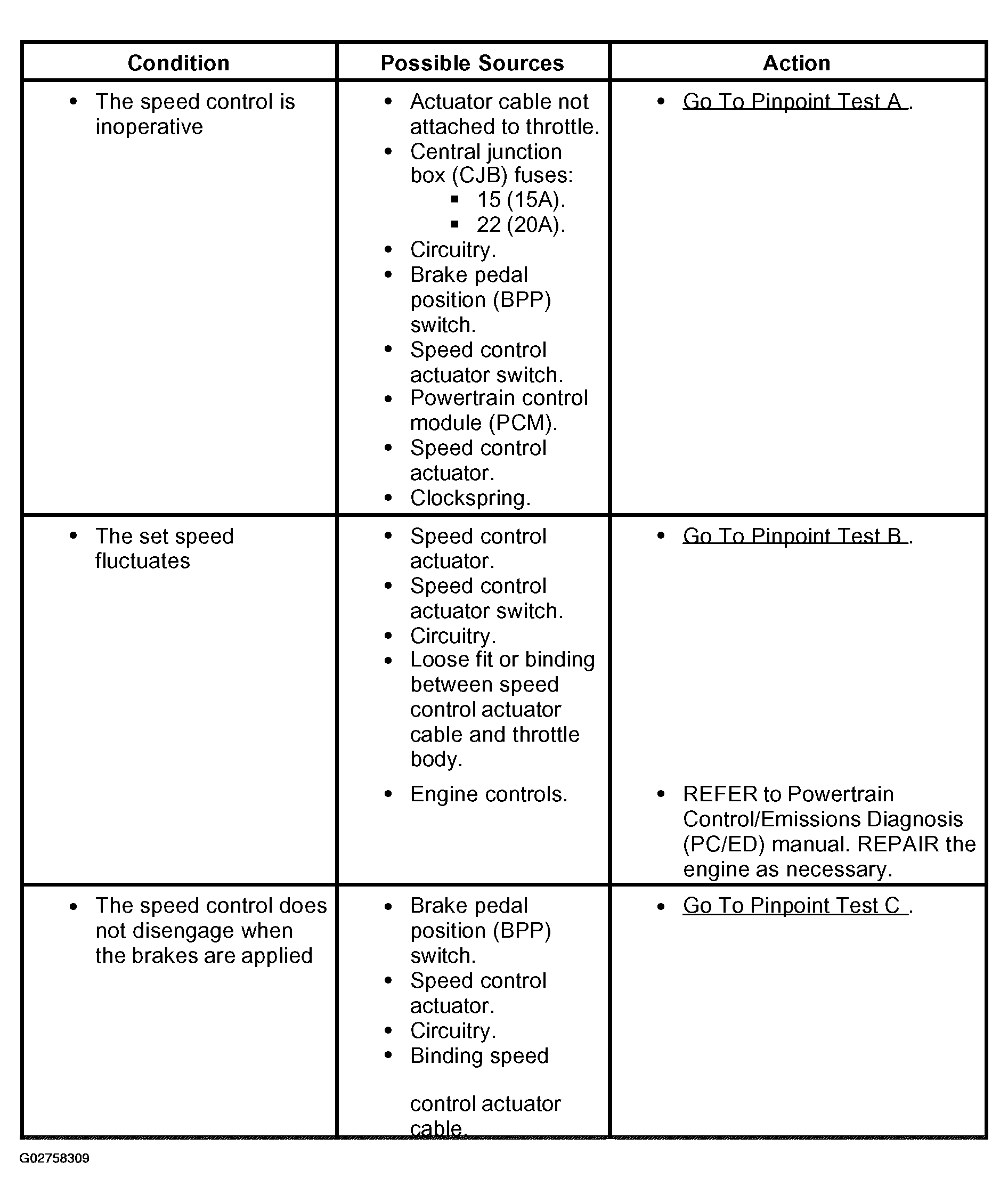

Fig 1: Symptom Chart (1 Of 2)

Courtesy of FORD MOTOR CO.

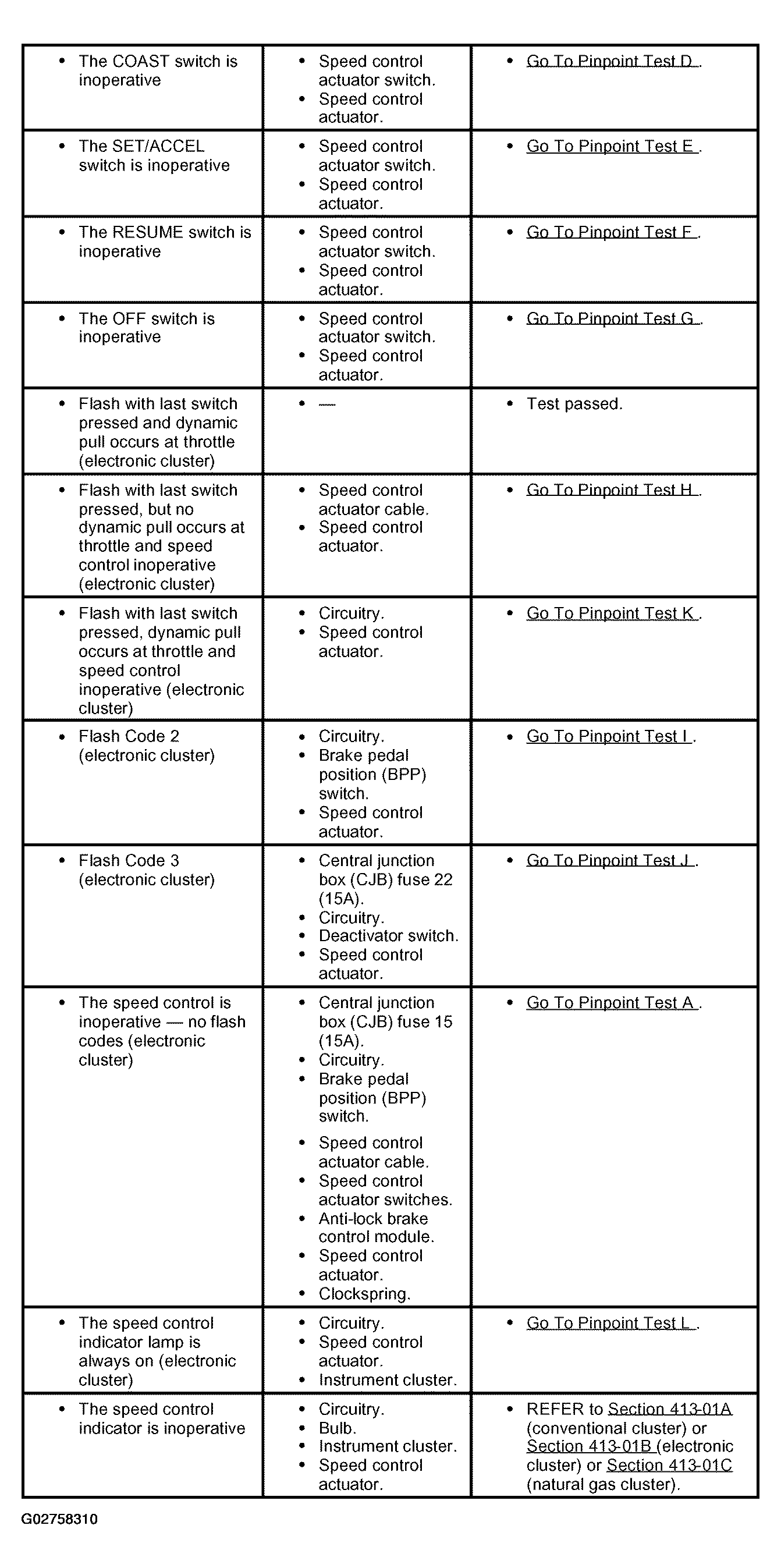

Fig 2: Symptom Chart (2 Of 2)

Courtesy of FORD MOTOR CO.
