Speed Control Deactivator Switch: Installation

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

Fully apply the brake pedal.
Install the speed control deactivator switch.
1. Position the speed control deactivator switch in the bracket and rotate clockwise.
2. Connect the electrical connector.

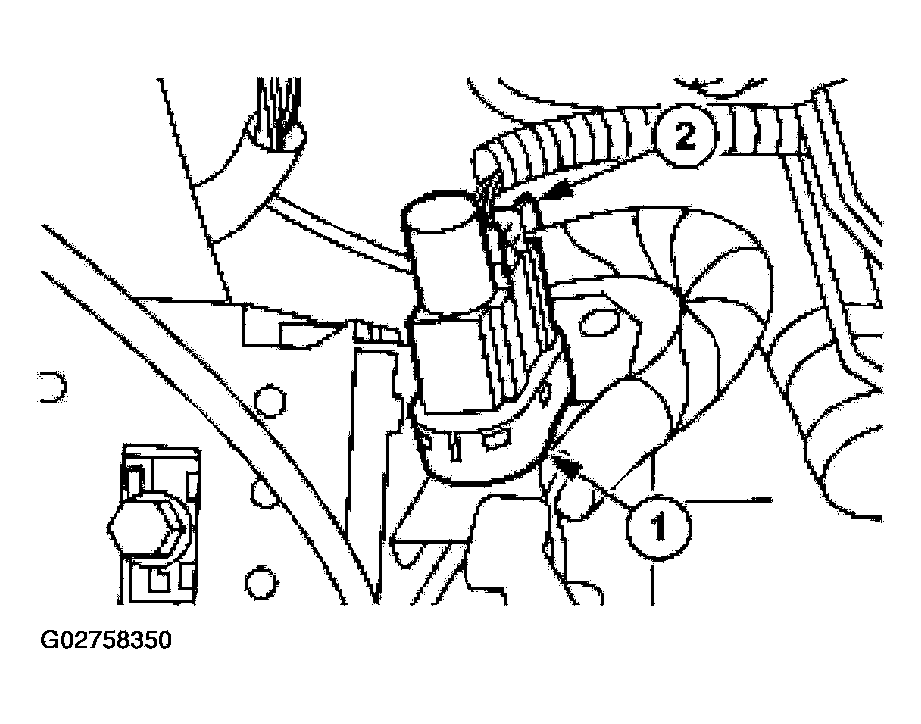

Fig 1: Connecting Electrical Connector
Courtesy of FORD MOTOR CO.
Insert a 1 mm (0.04 in) feeler gauge between the brake pedal actuation surface and the deactivator switch plunger.
Slowly release the brake pedal.
