Pinpoint Test Pc: Data Link Diagnostics Network Test

WARNING: This page is about a different car, the 2004 Mercury Marauder, 2004 Mercury Grand Marquis, and 2004 Ford Crown Victoria. However, it is still accessible from the selected car via links, so may be relevant.

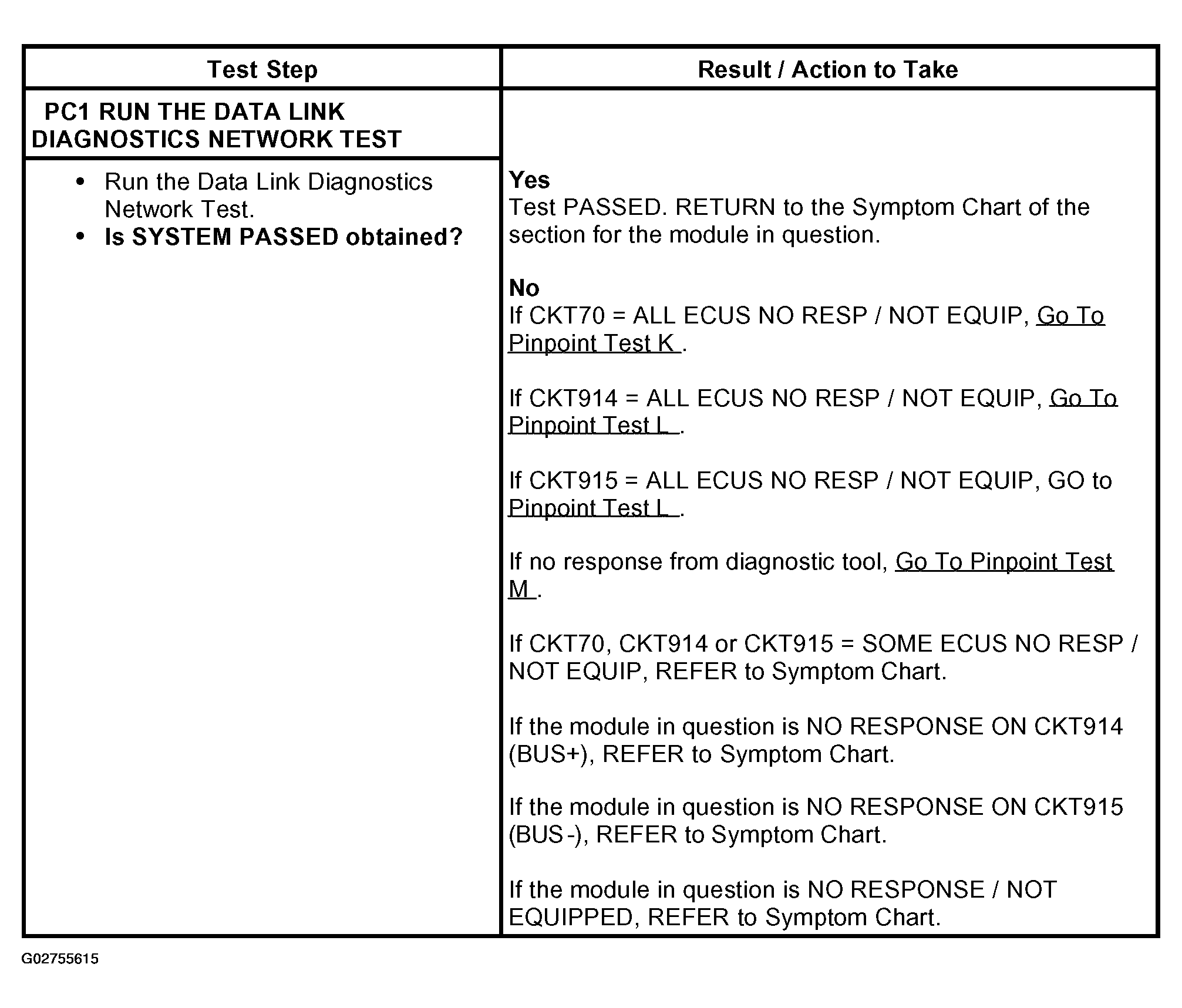

Fig 1: Pinpoint Test PC: Data Link Diagnostics Network Test
G02755615Courtesy of FORD MOTOR CO.
