Section 642 (Module Communications Network)
›
Diagnosis And Testing
›
Communications Network
›
Connector Circuit Reference
›
Navigation System Module C4209
Navigation System Module C4209
WARNING:
This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

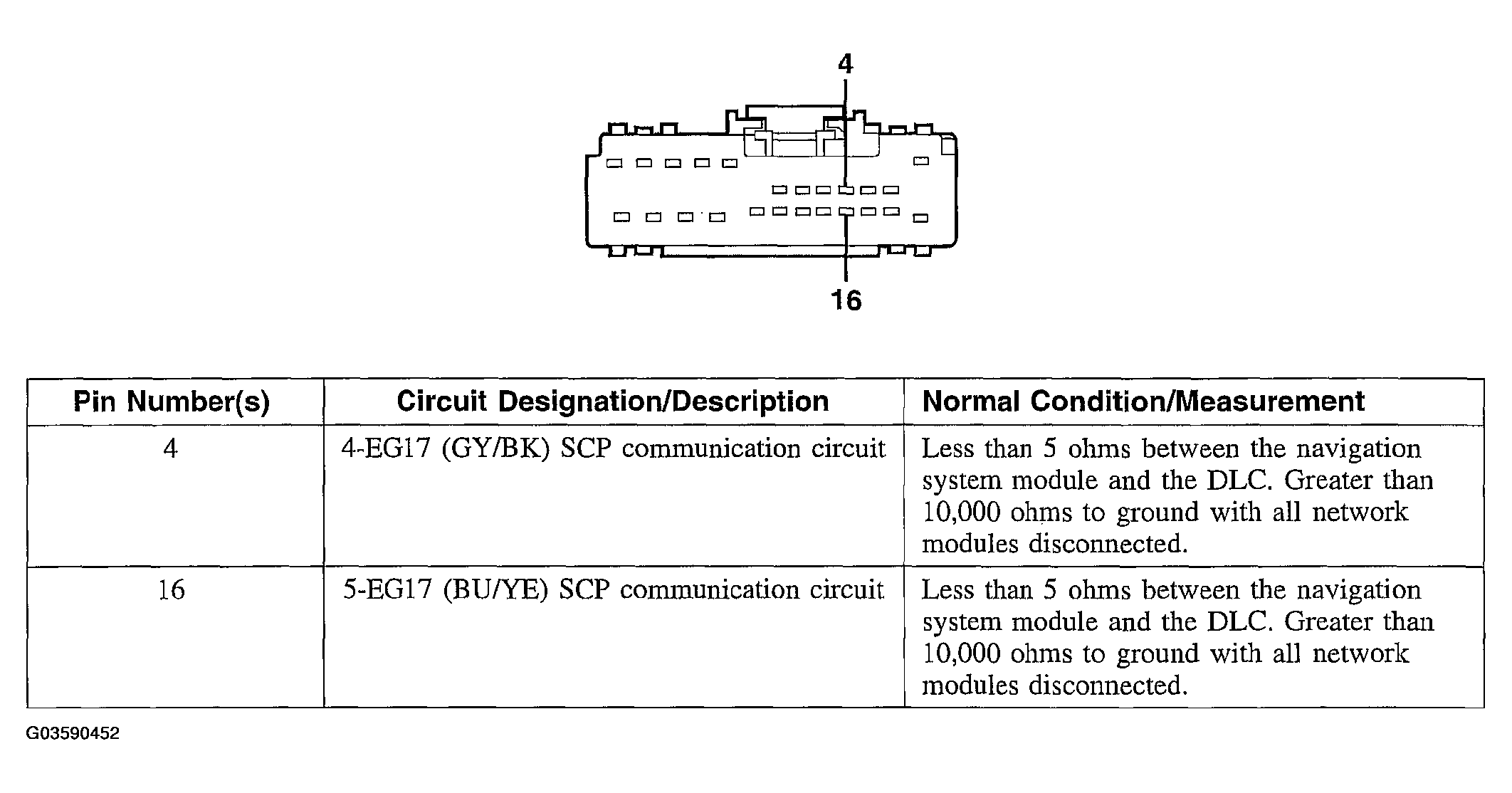

Fig 1: Identifying Navigation System Module C4209
Courtesy of FORD MOTOR CO.
