Front Suspension: Description

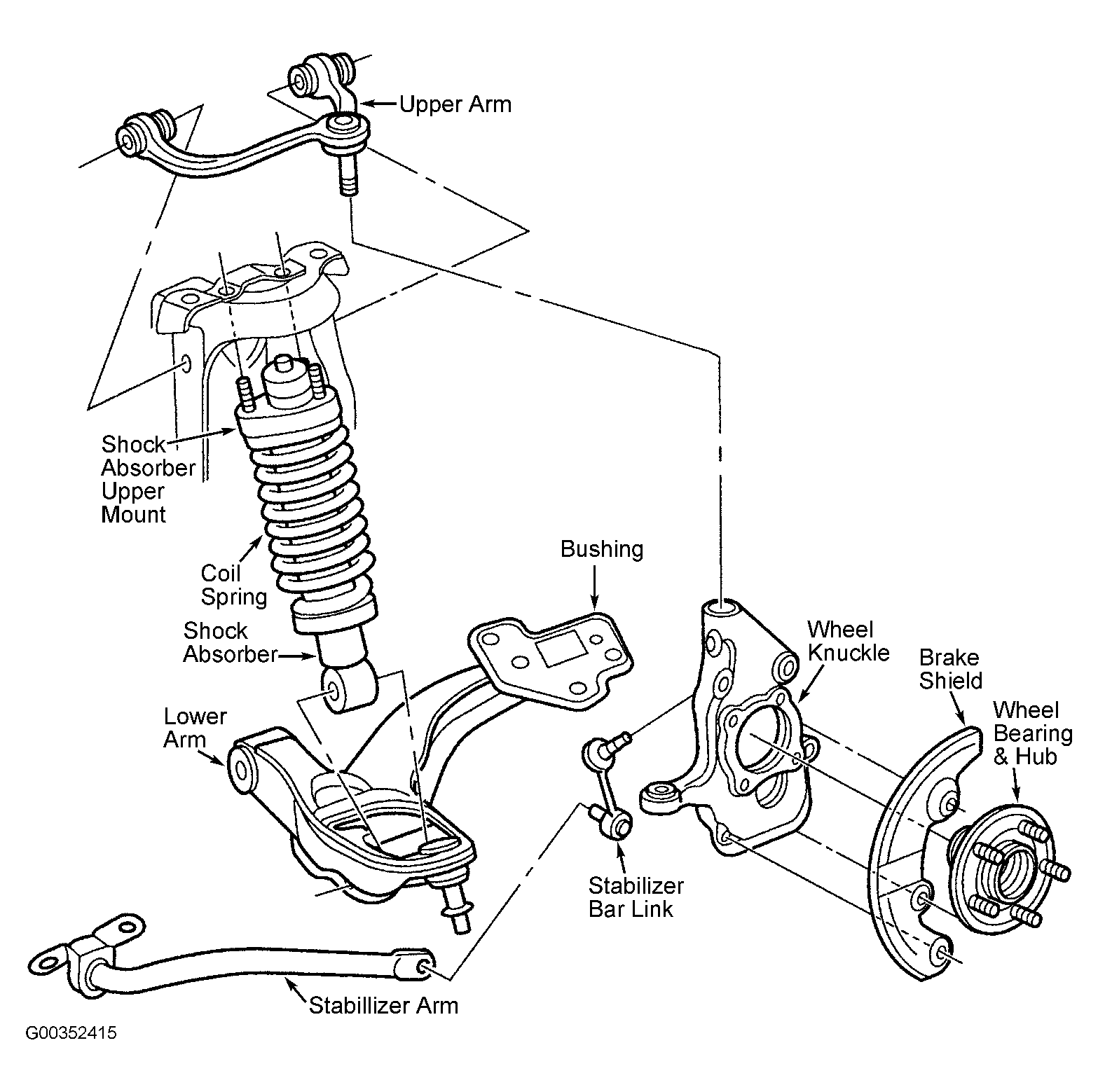

Front suspension consist of upper and lower control arms, wheel bearing and hub assemblies, wheel knuckles, shock absorbers, coil springs and a stabilizer bar with end links. The shock absorber and spring are a coil-over design mounted between the lower control arm and the frame crossmember. Upper and lower control arms have integral ball joints that attach to wheel knuckles. The wheel bearing and hub assemblies are bolted to the wheel knuckles. See Fig 1 .
