Automatic Transmission
›
Description And Operation
›
Main Components And Functions
Main Components And Functions

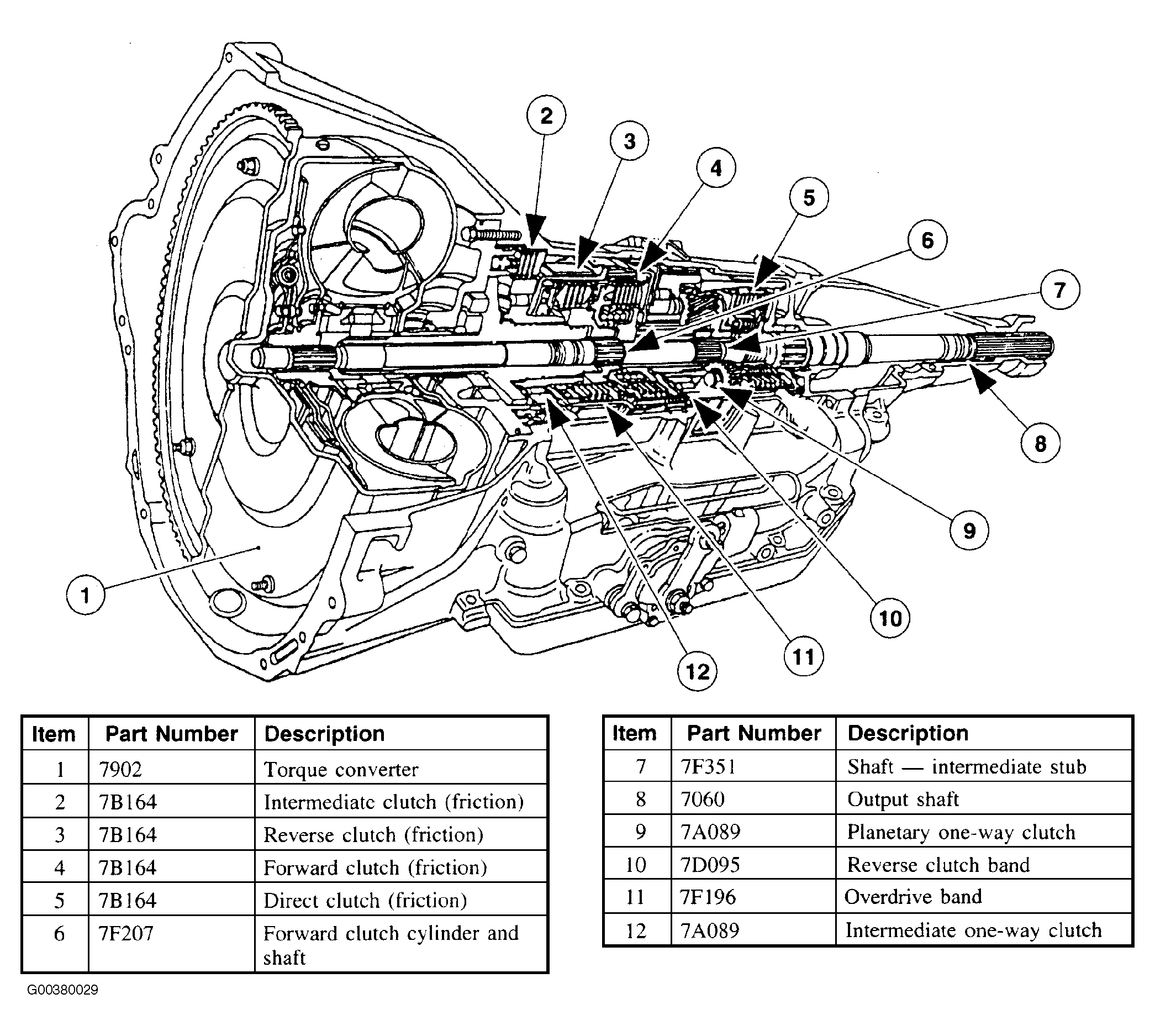

Fig 1: Transmission Main Components - Sectional View
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
