Pinpoint Test D: Transmission Control Switch Does Not Operate Correctly

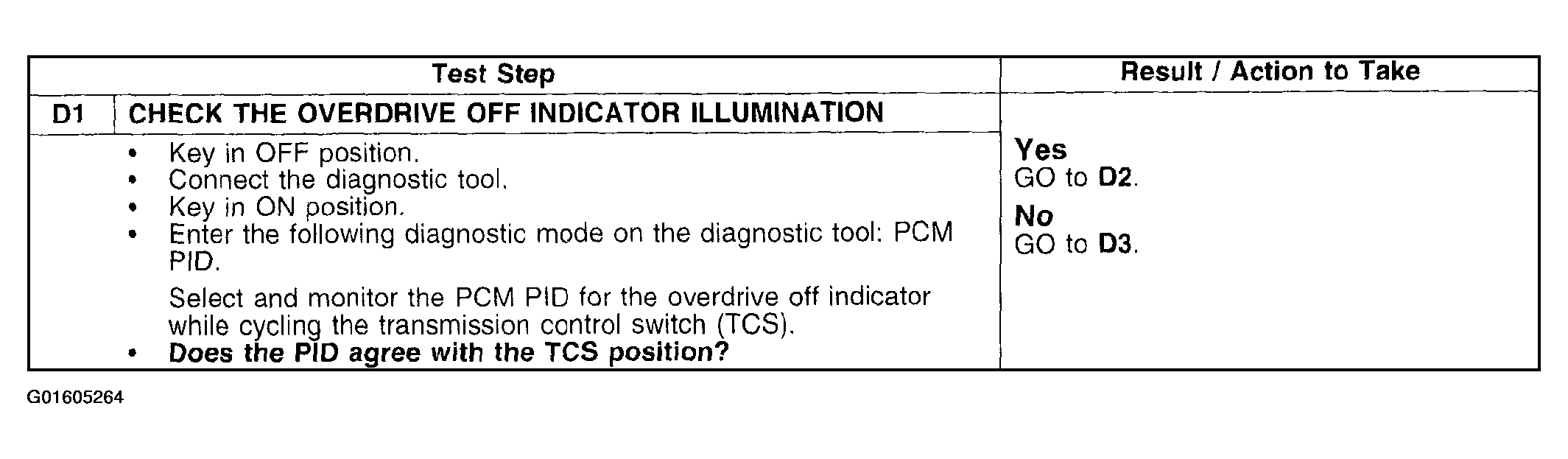

Fig 1: Pinpoint Test D: Transmission Control Switch Does Not Operate Correctly (D1)
G01605264Courtesy of FORD MOTOR CO.

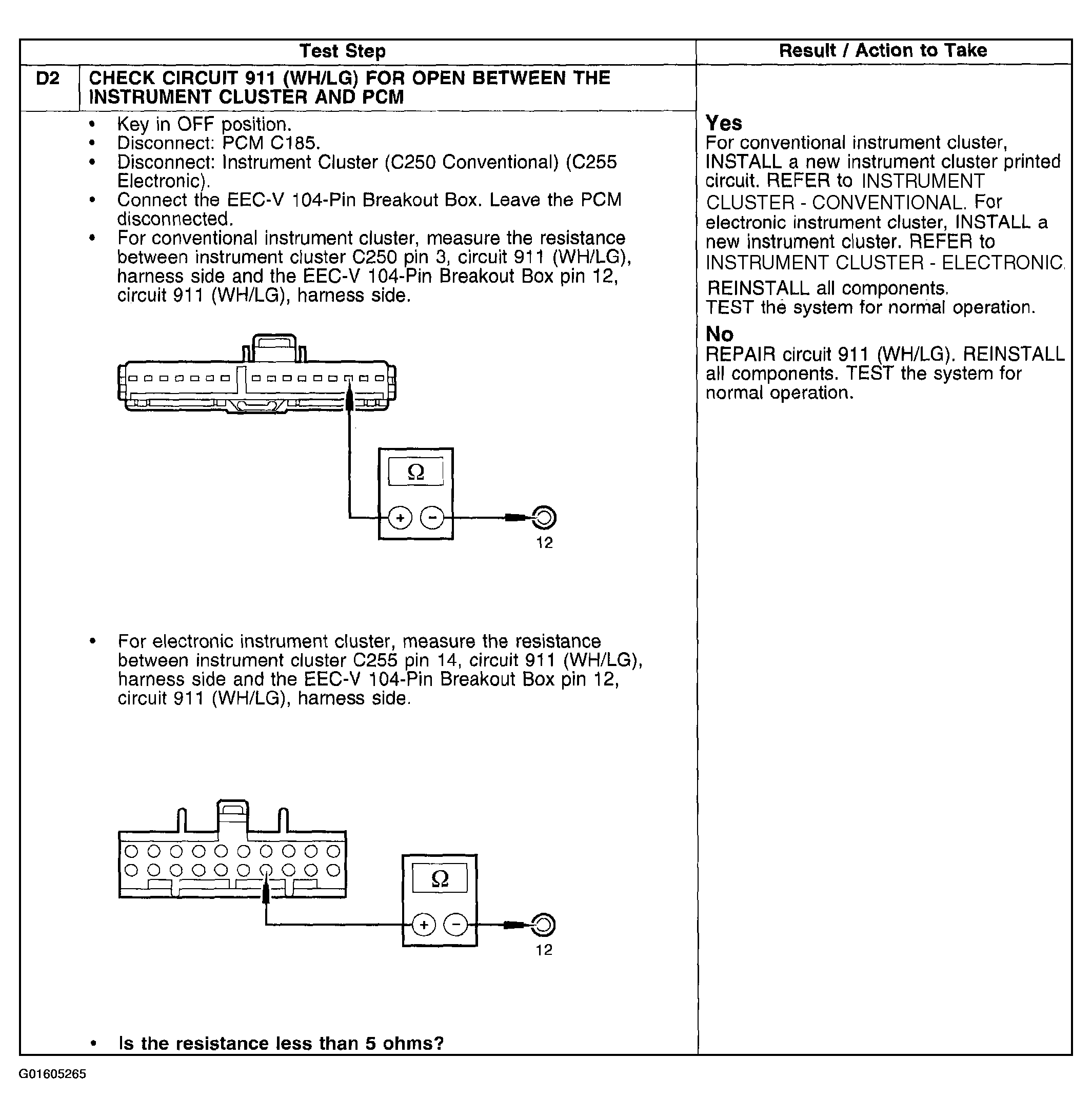

Fig 2: Pinpoint Test D: Transmission Control Switch Does Not Operate Correctly (D2)
G01605265Courtesy of FORD MOTOR CO.

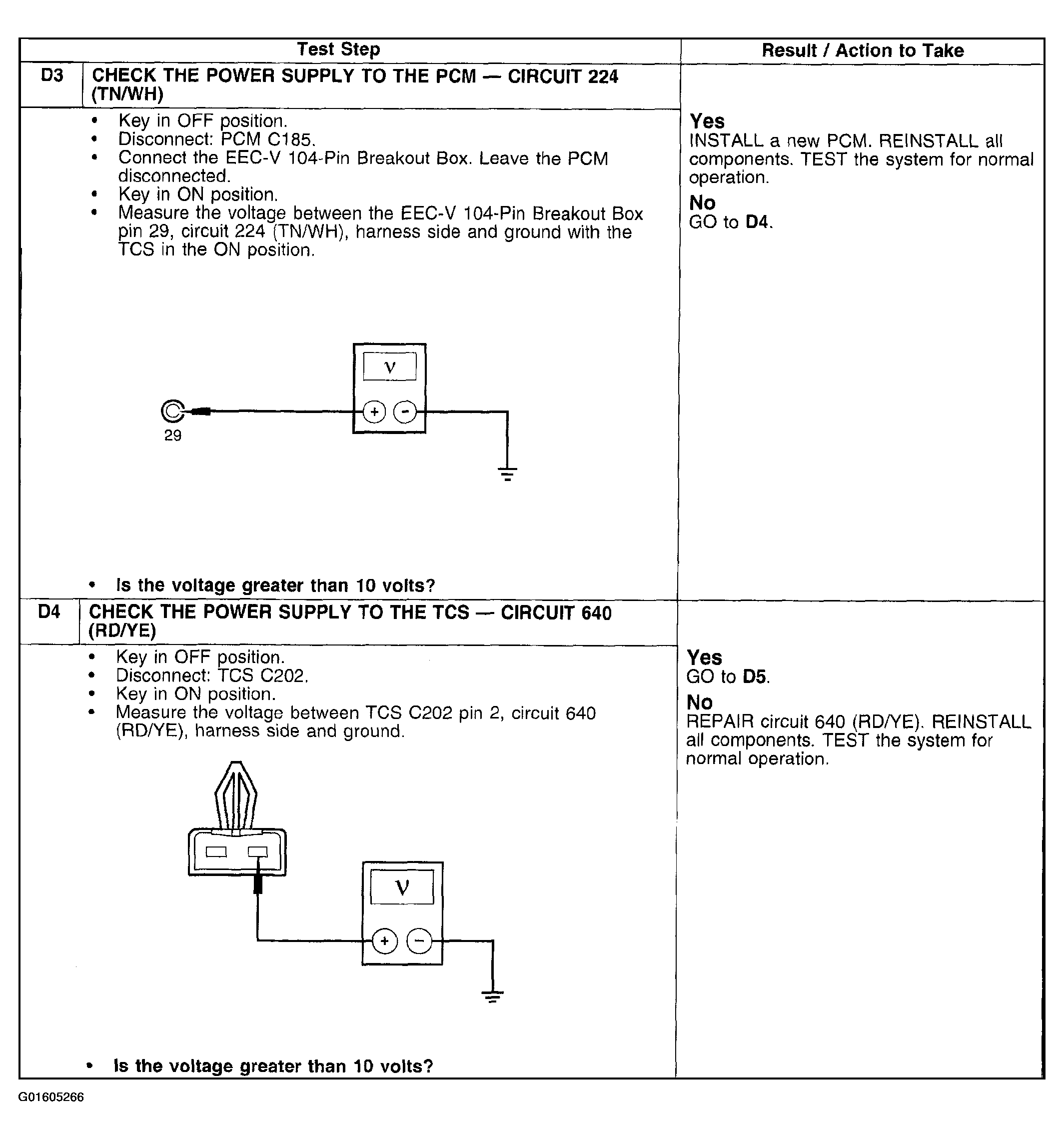

Fig 3: Pinpoint Test D: Transmission Control Switch Does Not Operate Correctly (D3-D4)
G01605266Courtesy of FORD MOTOR CO.

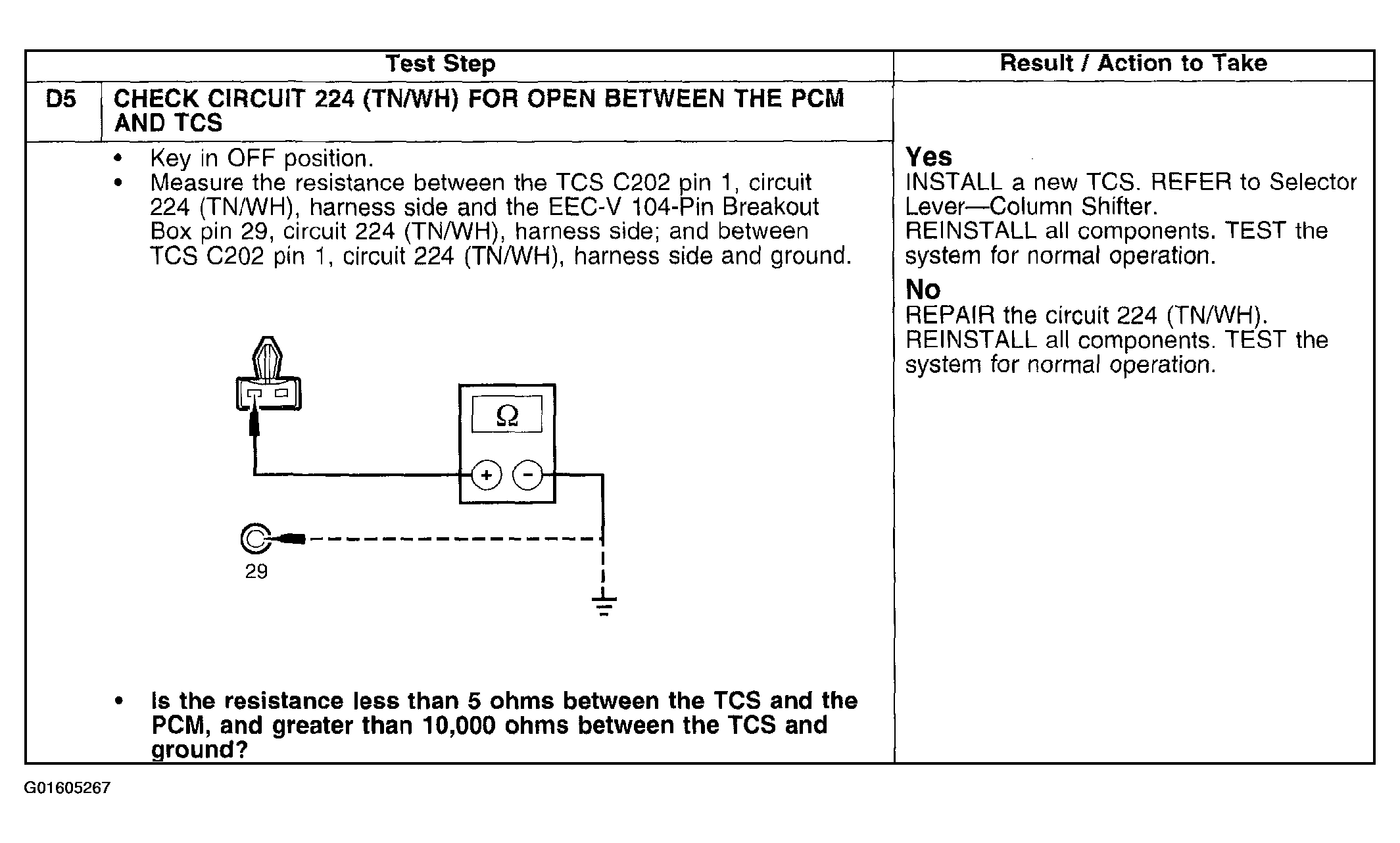

Fig 4: Pinpoint Test D: Transmission Control Switch Does Not Operate Correctly (D5)
G01605267Courtesy of FORD MOTOR CO.
