Pinpoint Test I: Transmission Control Switch Does Not Operate Correctly - Floor Shift

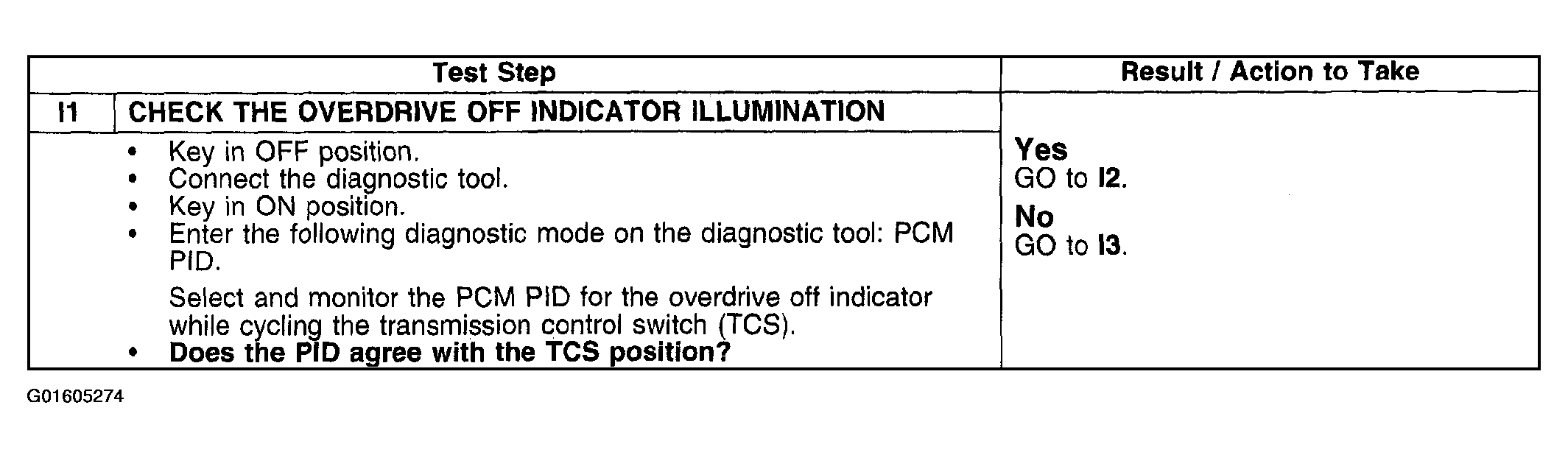

Fig 1: Pinpoint Test I: Transmission Control Switch Does Not Operate Correctly - Floor Shift (I1)
G01605274Courtesy of FORD MOTOR CO.

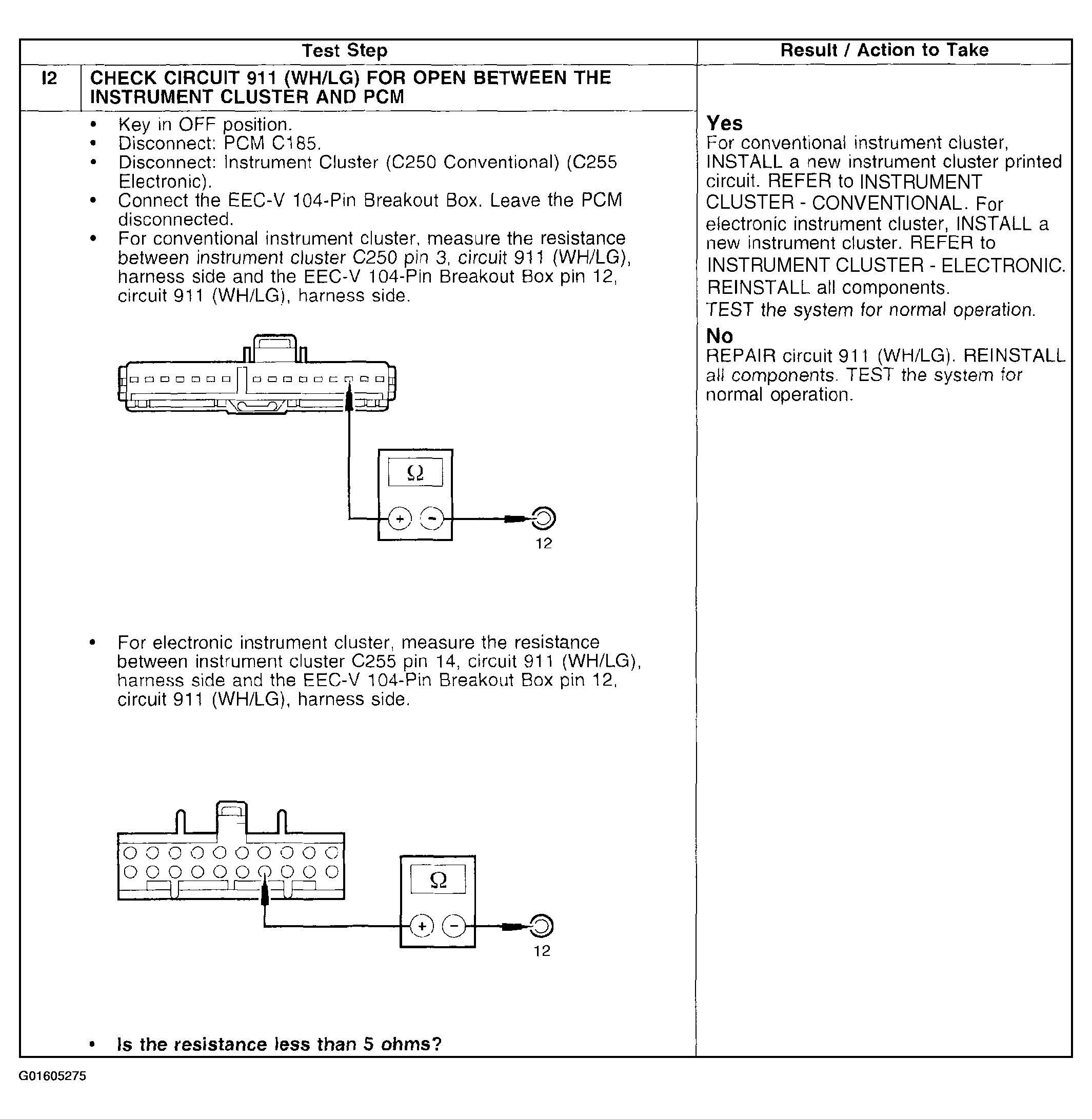

Fig 2: Pinpoint Test I: Transmission Control Switch Does Not Operate Correctly - Floor Shift (I2)
G01605275Courtesy of FORD MOTOR CO.

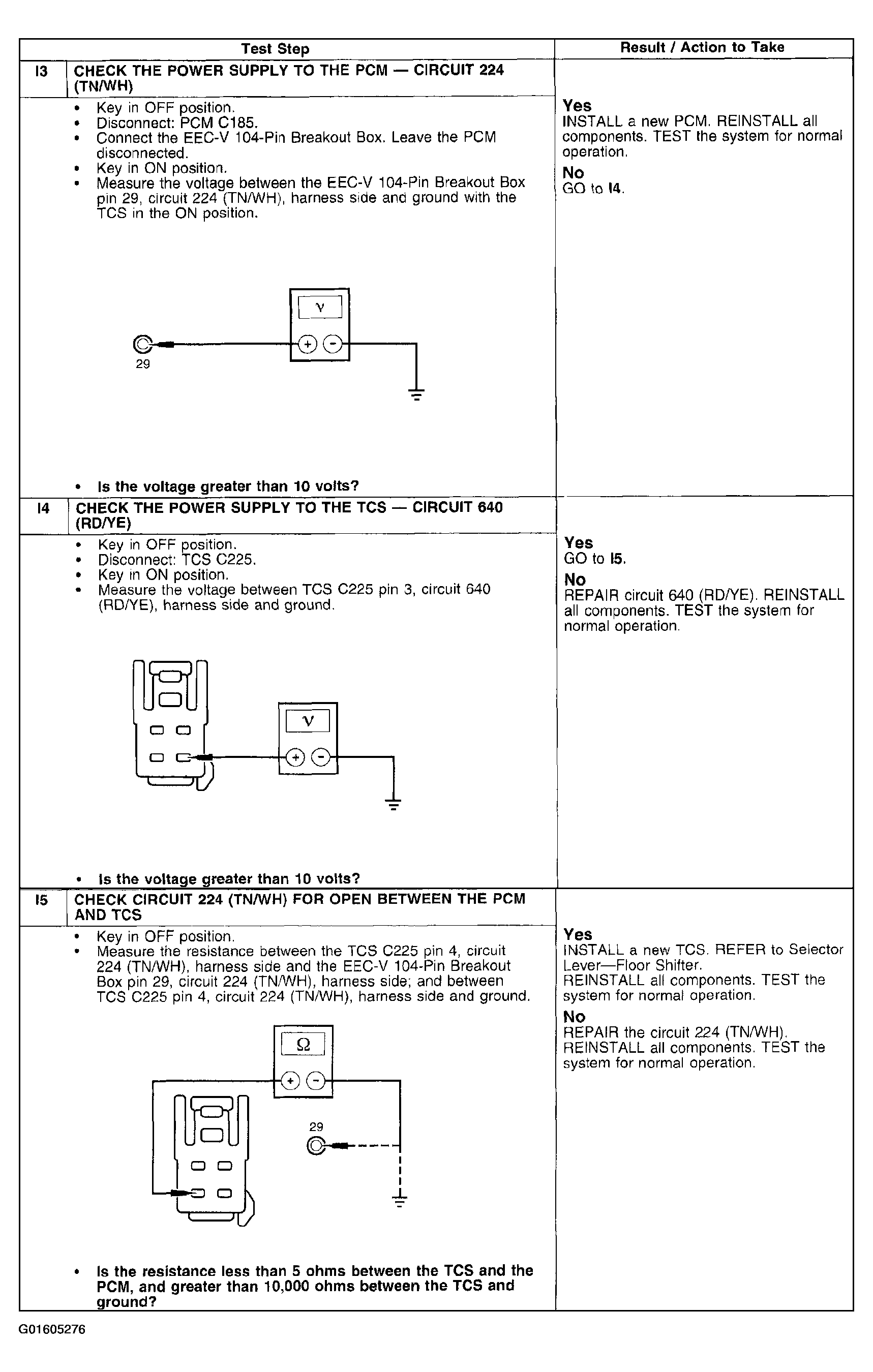

Fig 3: Pinpoint Test I: Transmission Control Switch Does Not Operate Correctly - Floor Shift (I3-I5)
G01605276Courtesy of FORD MOTOR CO.
