Symptom Chart - Column Shift
Symptom Chart - Column Shift

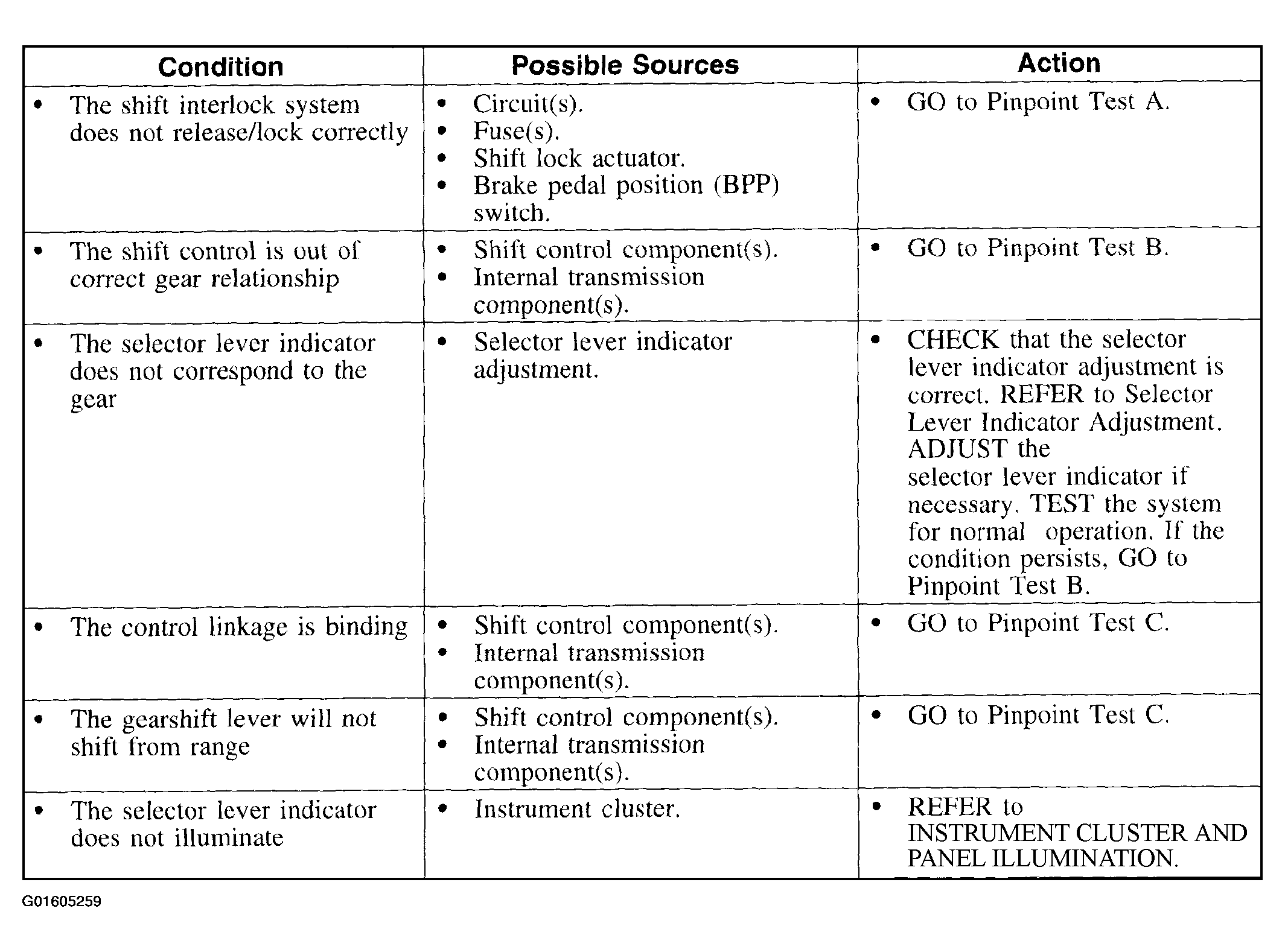

Fig 1: Symptom Chart - Column Shift (1 Of 2)
Courtesy of FORD MOTOR CO.

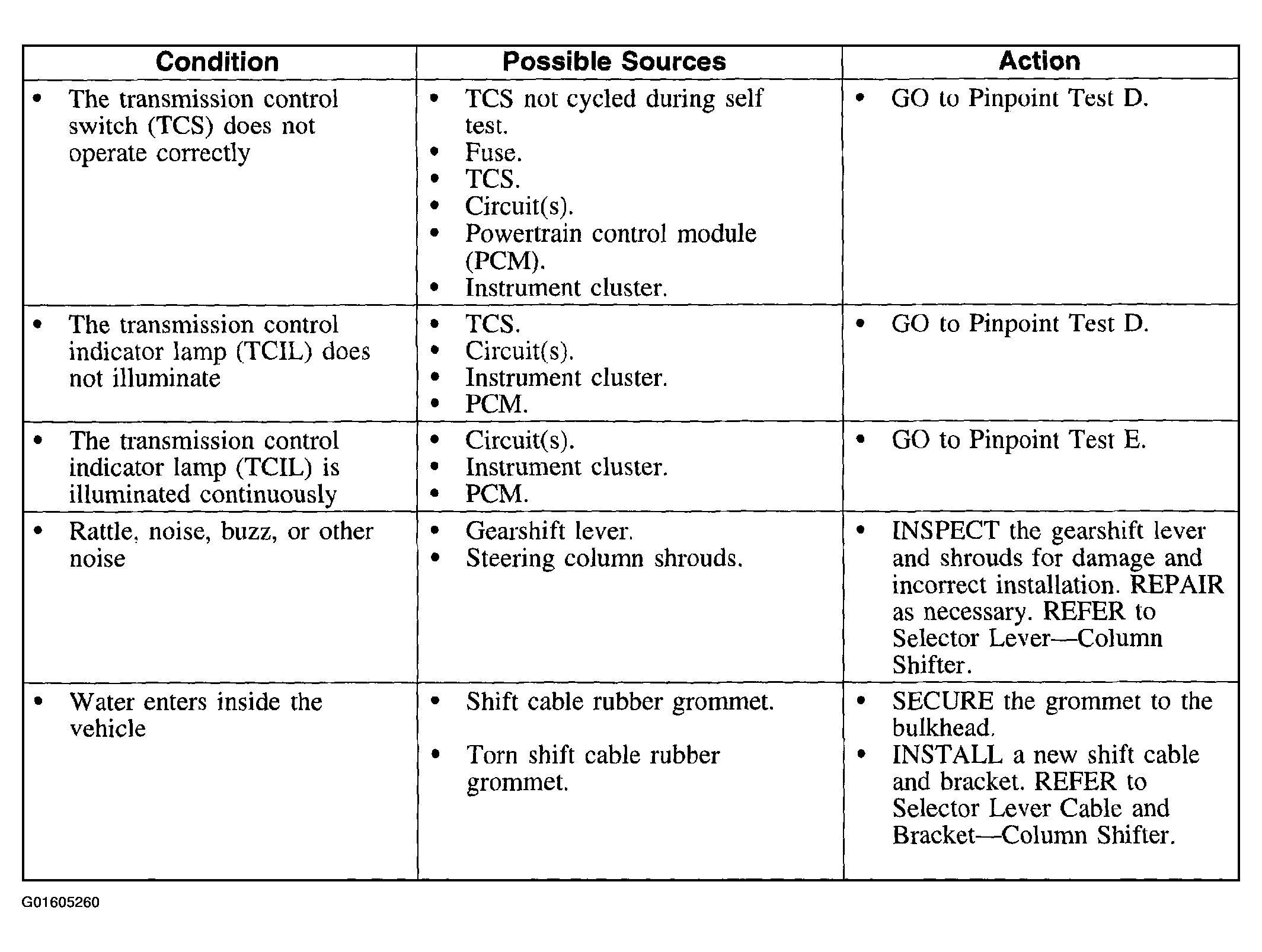

Fig 2: Symptom Chart - Column Shift (1 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
