Connector Views

Fig 1: A/C Clutch Solenoid Connector End View (C100)

G07834880

Courtesy of FORD MOTOR CO.

Fig 2: Crankshaft Position Sensor Connector End View (C101)

G07834881

Courtesy of FORD MOTOR CO.

Fig 3: Generator Connector End View (C102a)

G07834882

Courtesy of FORD MOTOR CO.

Fig 4: Generator Connector End View (C102b)

G07834883

Courtesy of FORD MOTOR CO.

Fig 5: Oil Pressure Switch Connector End View (C103)

G07834884

Courtesy of FORD MOTOR CO.

Fig 6: Knock Sensor Connector End View (C108)

G07834885

Courtesy of FORD MOTOR CO.

Fig 7: Knock Sensor Connector End View (C109)

G07834886

Courtesy of FORD MOTOR CO.

Fig 8: Inline Connector End View (C110)

G07834887

Courtesy of FORD MOTOR CO.

Fig 9: Speed Control Servo Connector End View (C122)

G07834888

Courtesy of FORD MOTOR CO.

Fig 10: EVAP Canister Purge Valve Connector End View (C123)

G07834889

Courtesy of FORD MOTOR CO.

Fig 11: Brake Fluid Level Switch Connector End View (C124)

G07834890

Courtesy of FORD MOTOR CO.

Fig 12: Windshield Wiper Motor Connector End View (C125)

G07834891

Courtesy of FORD MOTOR CO.

Fig 13: Anti-Theft Hood Switch Connector End View (C127)

G07834892

Courtesy of FORD MOTOR CO.

Fig 14: Mass Air Flow (MAF) Sensor Connector End View (C128)

G07834893

Courtesy of FORD MOTOR CO.

Fig 15: Low Charge Protection Switch Connector End View (C130)

G07834894

Courtesy of FORD MOTOR CO.

Fig 16: Horn Connector End View (C131)

G07834895

Courtesy of FORD MOTOR CO.

Fig 17: Inline Connector End View (C133)

G07834896

Courtesy of FORD MOTOR CO.

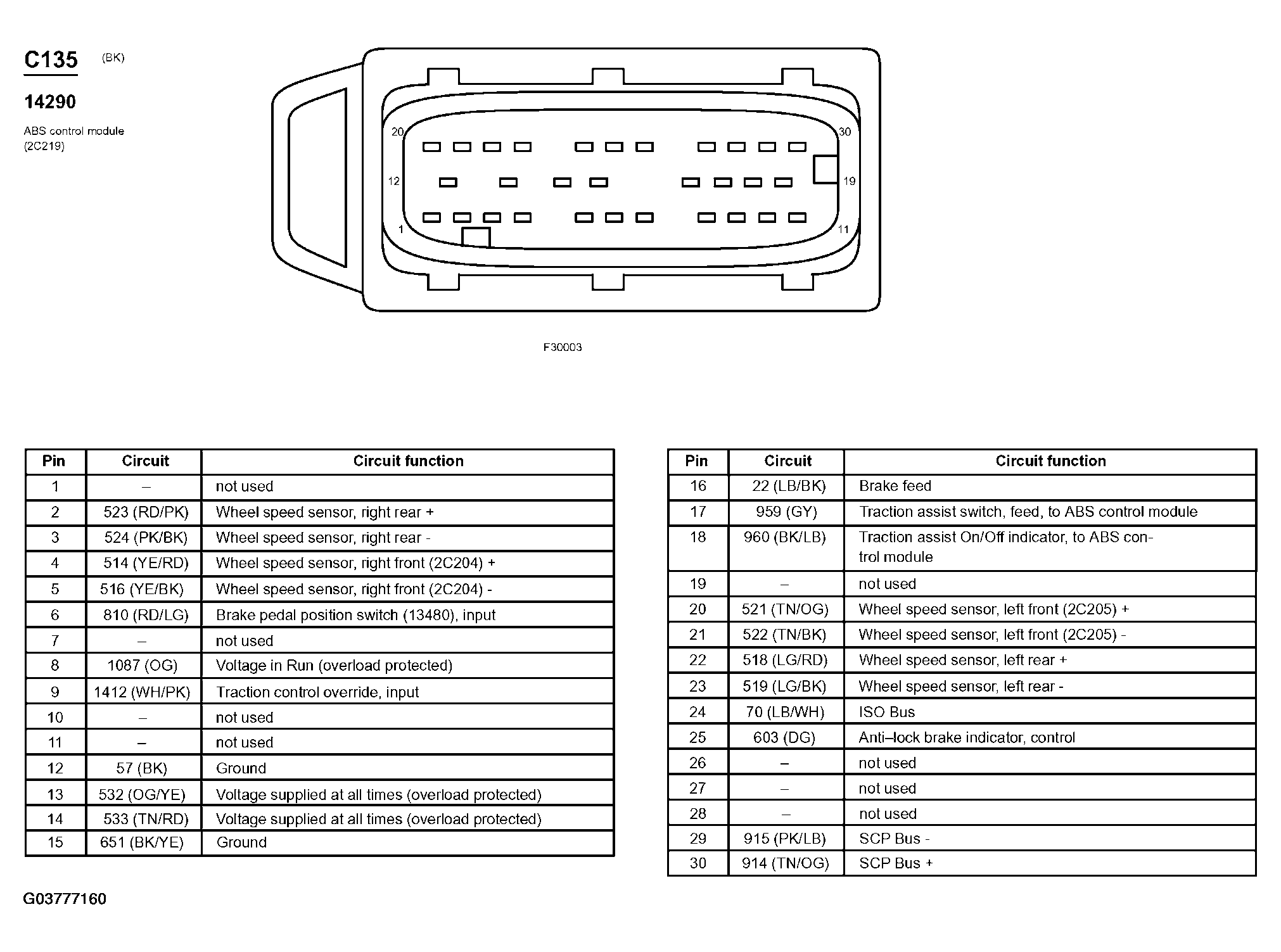

Fig 18: ABS Control Module Connector End View (C135)

G03777160

Courtesy of FORD MOTOR CO.

Fig 19: Windshield Washer Pump Motor Connector End View (C137)

G07834897

Courtesy of FORD MOTOR CO.

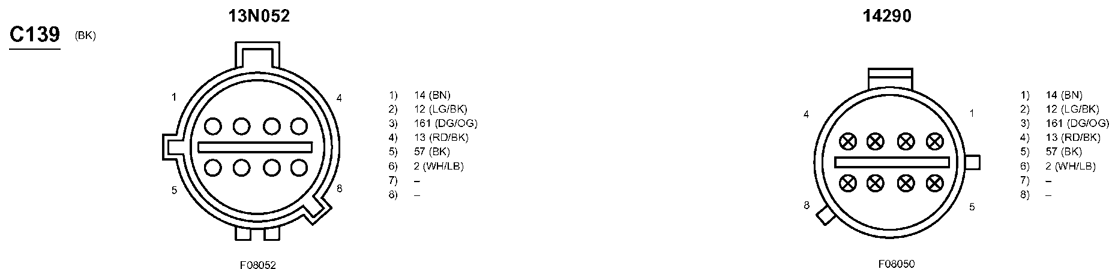

Fig 20: Inline Connector End View (C139)

G07834898

Courtesy of FORD MOTOR CO.

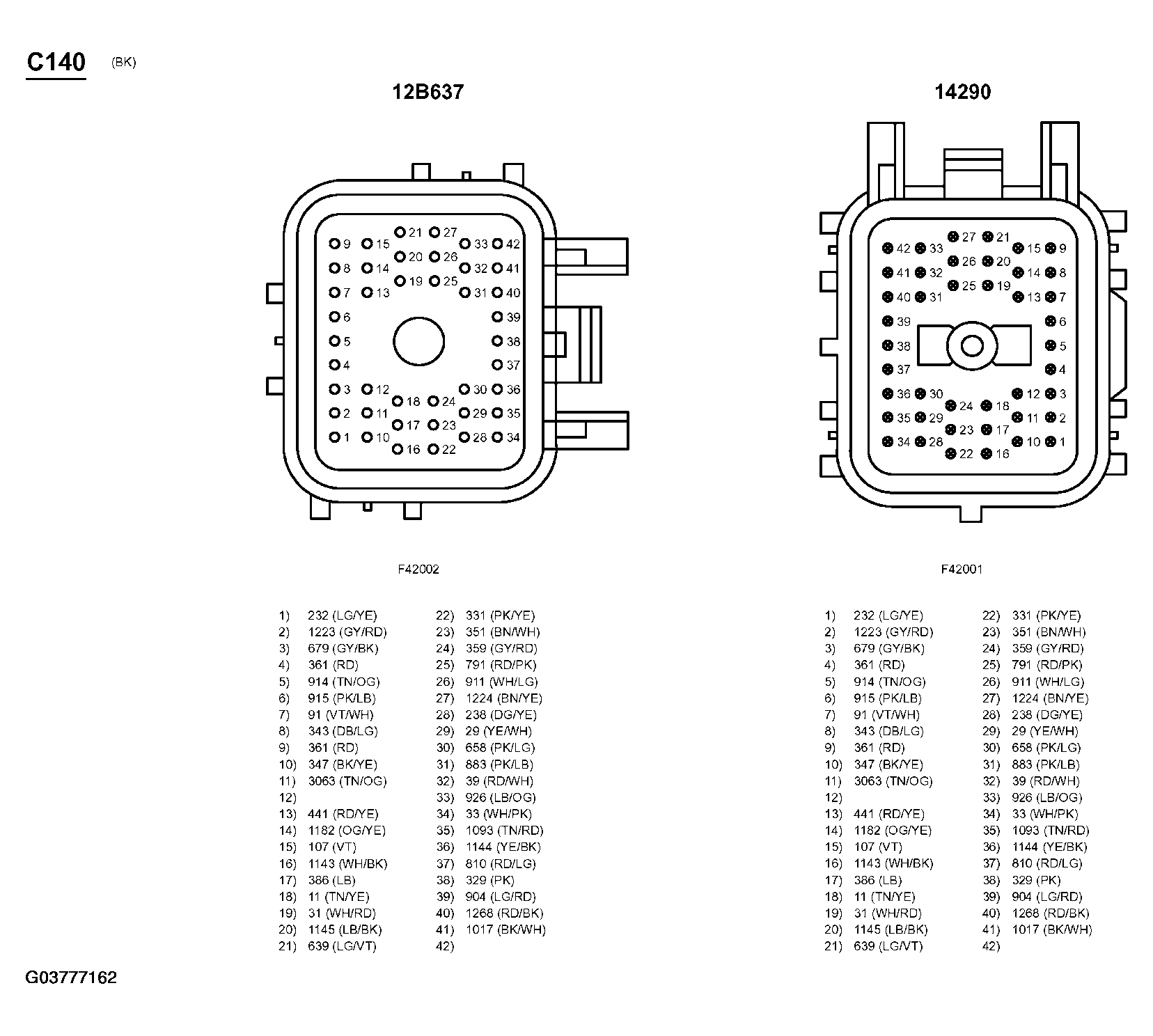

Fig 21: Inline Connector End View (C140)

G03777162

Courtesy of FORD MOTOR CO.

Fig 22: Heated Oxygen Sensor (HO2S) #22 Connector End View (C141)

G07834899

Courtesy of FORD MOTOR CO.

Fig 23: Heated Oxygen Sensor (HO2S) #12 Connector End View (C142)

G07834900

Courtesy of FORD MOTOR CO.

Fig 24: Turbine Shaft Speed Sensor Connector End View (C143)

G07834901

Courtesy of FORD MOTOR CO.

Fig 25: Wheel Speed Sensor, Left Front Connector End View (C150)

G07834902

Courtesy of FORD MOTOR CO.

Fig 26: Fog Lamp, Left Front Connector End View (C152)

G07834903

Courtesy of FORD MOTOR CO.

Fig 27: Wheel Speed Sensor, Right Front Connector End View (C160)

G07834904

Courtesy of FORD MOTOR CO.

Fig 28: Fog Lamp, Right Front Connector End View (C162)

G07834905

Courtesy of FORD MOTOR CO.

Fig 29: Digital Transmission Range (DTR) Sensor Connector End View (C167)

G07834906

Courtesy of FORD MOTOR CO.

Fig 30: Heated Oxygen Sensor (HO2S) #11 Connector End View (C171)

G07834907

Courtesy of FORD MOTOR CO.

Fig 31: Heated Oxygen Sensor (HO2S) #21 Connector End View (C172)

G07834908

Courtesy of FORD MOTOR CO.

Fig 32: Ignition Transformer Capacitor 1 Connector End View (C174)

G07834909

Courtesy of FORD MOTOR CO.

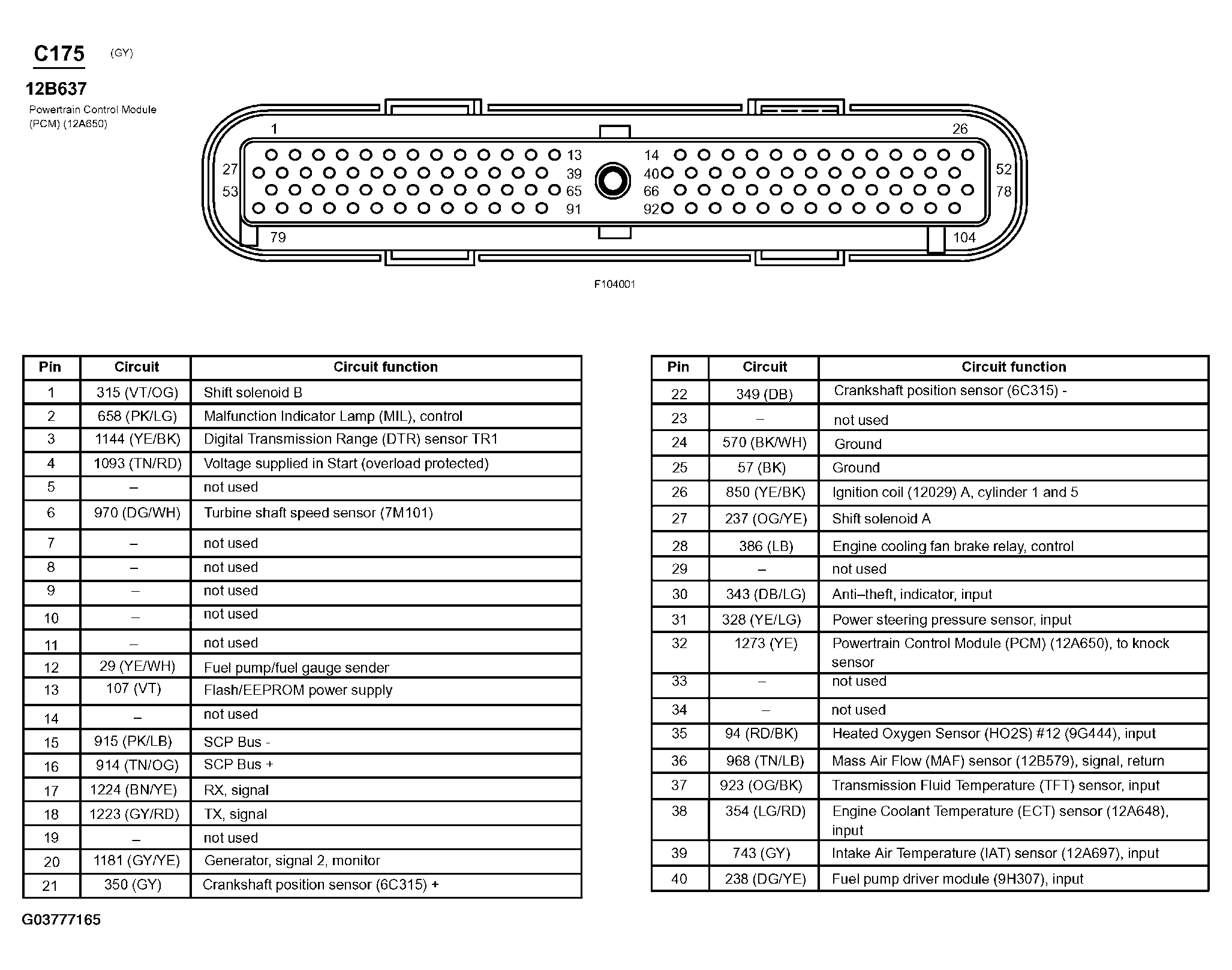

Fig 33: Powertrain Control Module (PCM) Connector End View (C175) (1 Of 2)

G03777165

Courtesy of FORD MOTOR CO.

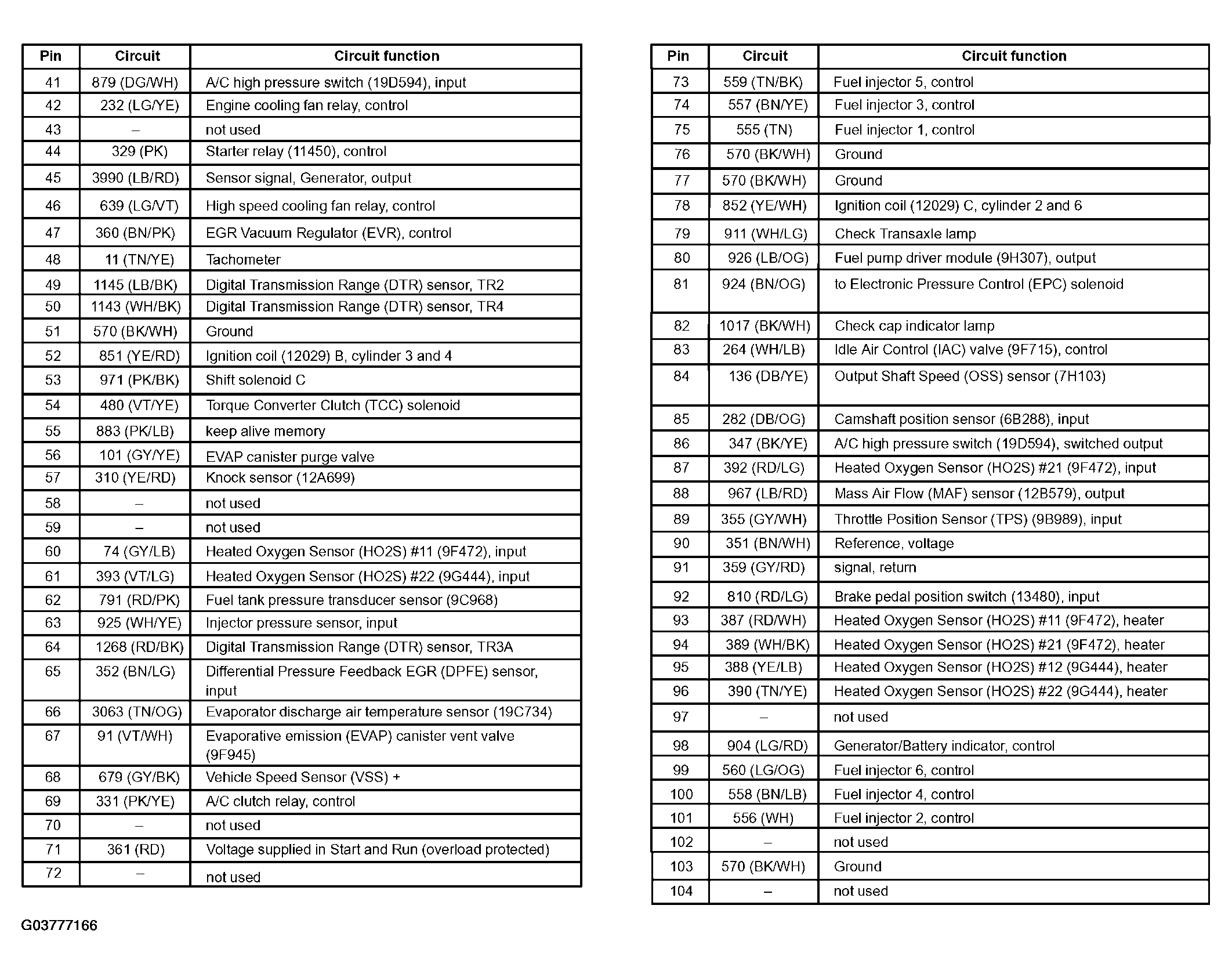

Fig 34: Powertrain Control Module (PCM) Connector End View (C175) (2 Of 2)

G03777166

Courtesy of FORD MOTOR CO.

Fig 35: Non-Speed Control Jumper Connector End View (C176)

G07834910

Courtesy of FORD MOTOR CO.

Fig 36: Forward Crash Sensor Connector End View (C177)

G07834911

Courtesy of FORD MOTOR CO.

Fig 37: Camshaft Position Sensor Connector End View (C180)

G07834912

Courtesy of FORD MOTOR CO.

Fig 38: Fuel Injector 1 Connector End View (C181)

G07834913

Courtesy of FORD MOTOR CO.

Fig 39: Fuel Injector 2 Connector End View (C182)

G07834914

Courtesy of FORD MOTOR CO.

Fig 40: Fuel Injector 3 Connector End View (C183)

G07834915

Courtesy of FORD MOTOR CO.

Fig 41: Fuel Injector 4 Connector End View (C184)

G07834916

Courtesy of FORD MOTOR CO.

Fig 42: Fuel Injector 5 Connector End View (C185)

G07834917

Courtesy of FORD MOTOR CO.

Fig 43: Fuel Injector 6 Connector End View (C186)

G07834918

Courtesy of FORD MOTOR CO.

Fig 44: Throttle Position Sensor (TPS) Connector End View (C189)

G07834919

Courtesy of FORD MOTOR CO.

Fig 45: Output Shaft Speed (OSS) Sensor Connector End View (C193)

G07834920

Courtesy of FORD MOTOR CO.

Fig 46: Daytime Running Lamps Resistor Connector End View (C196)

G07834921

Courtesy of FORD MOTOR CO.

Fig 47: Starter Motor Connector End View (C197a)

G07834922

Courtesy of FORD MOTOR CO.

Fig 48: Starter Motor Connector End View (C197b)

G07834923

Courtesy of FORD MOTOR CO.

Fig 49: Ambient Air Temperature Sensor Connector End View (C198)

G07834924

Courtesy of FORD MOTOR CO.

Fig 50: AX4S/4F50N Transmission Connector End View (C199)

G07834925

Courtesy of FORD MOTOR CO.

Fig 51: Generic Electronic Module (GEM) Connector End View (C201a)

G07834926

Courtesy of FORD MOTOR CO.

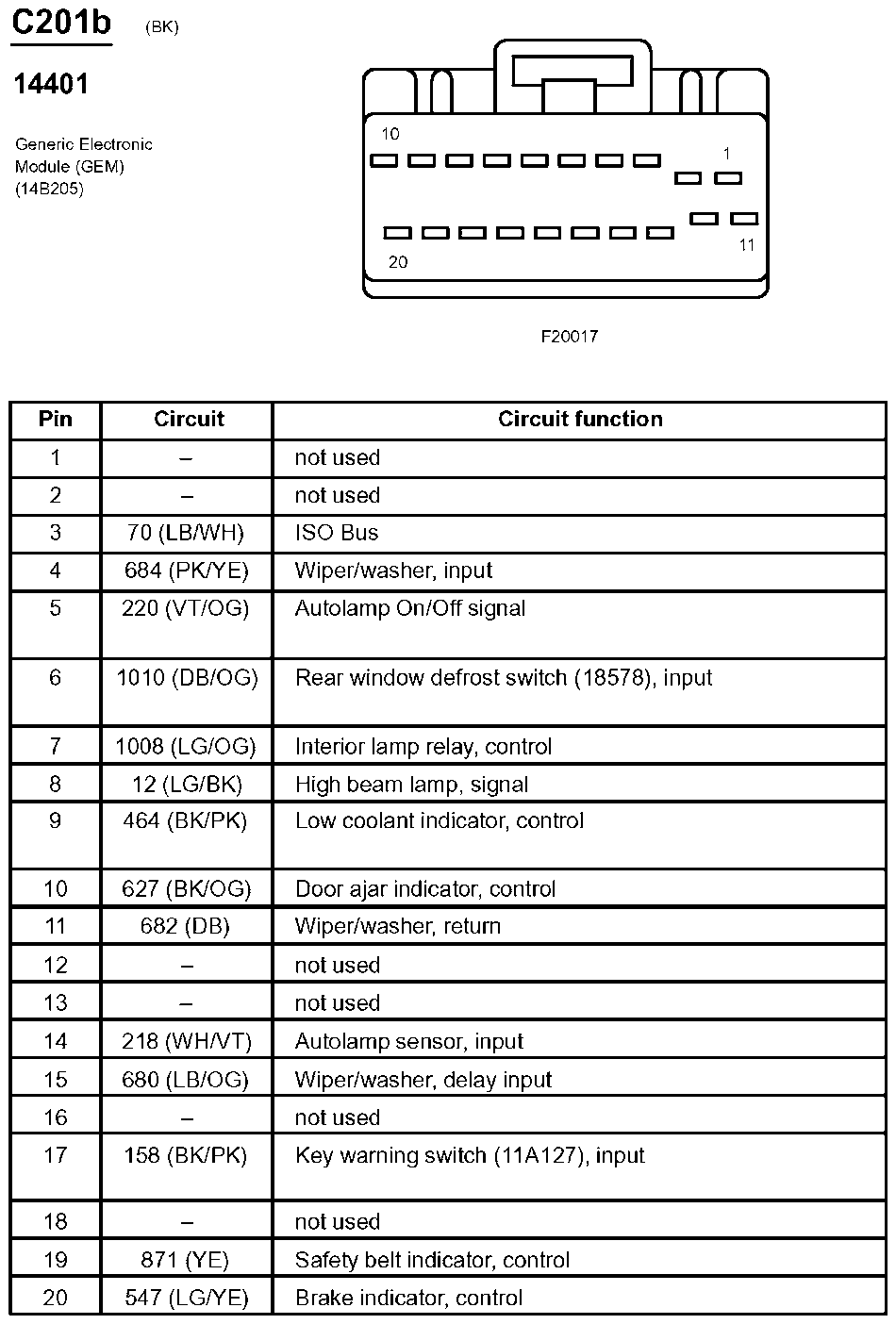

Fig 52: Generic Electronic Module (GEM) Connector End View (C201b)

G07834927

Courtesy of FORD MOTOR CO.

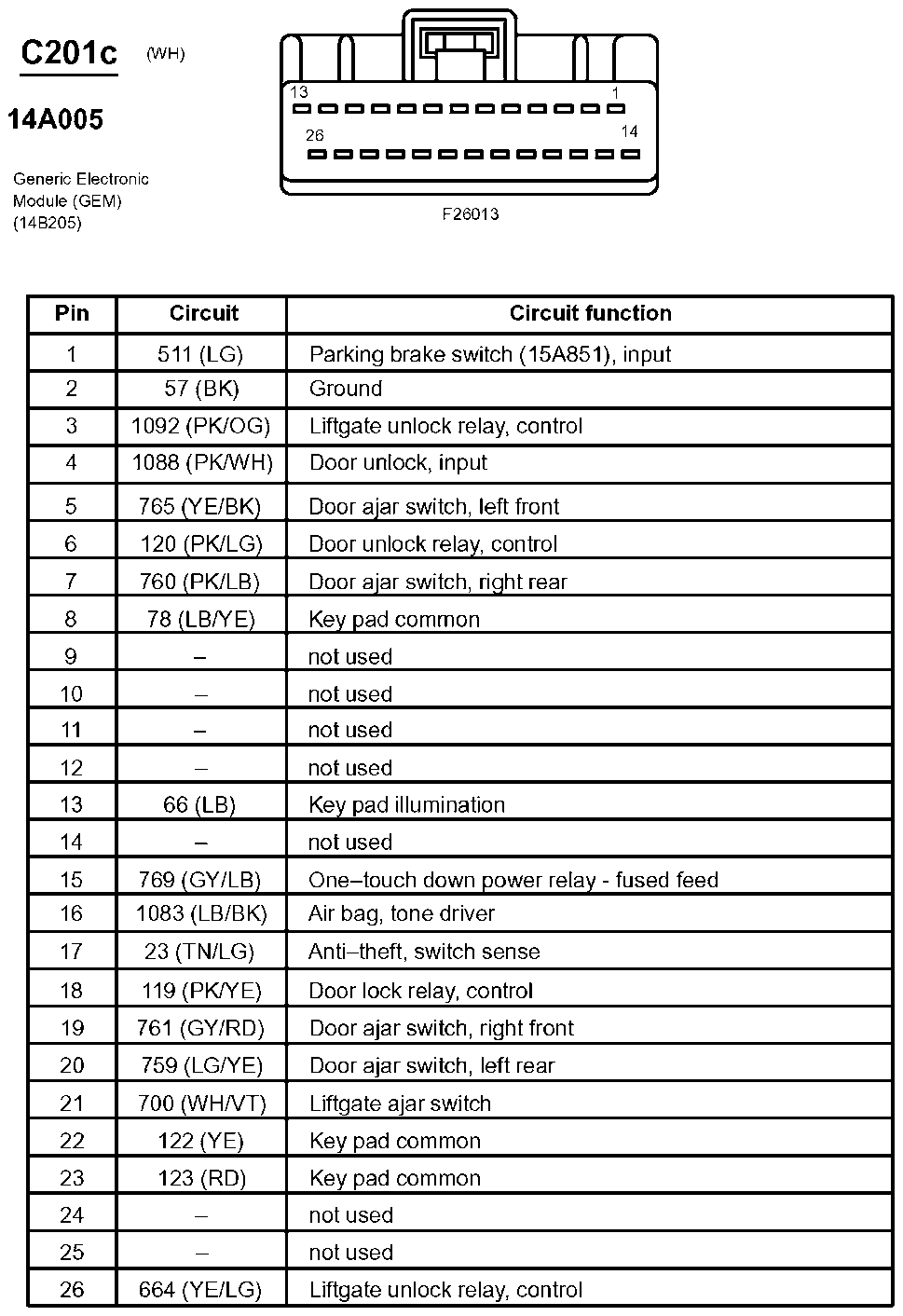

Fig 53: Generic Electronic Module (GEM) Connector End View (C201c)

G07834928

Courtesy of FORD MOTOR CO.

Fig 54: Generic Electronic Module (GEM) Connector End View (C201d)

G07834929

Courtesy of FORD MOTOR CO.

Fig 55: Multifunction Switch Connector End View (C202a)

G07834930

Courtesy of FORD MOTOR CO.

Fig 56: Multifunction Switch Connector End View (C202b)

G07834931

Courtesy of FORD MOTOR CO.

Fig 57: Main Light Switch Connector End View (C205a)

G07834932

Courtesy of FORD MOTOR CO.

Fig 58: Main Light Switch Connector End View (C205b)

G07834933

Courtesy of FORD MOTOR CO.

Fig 59: Luggage Compartment Lid Release Switch Connector End View (C207)

G07834934

Courtesy of FORD MOTOR CO.

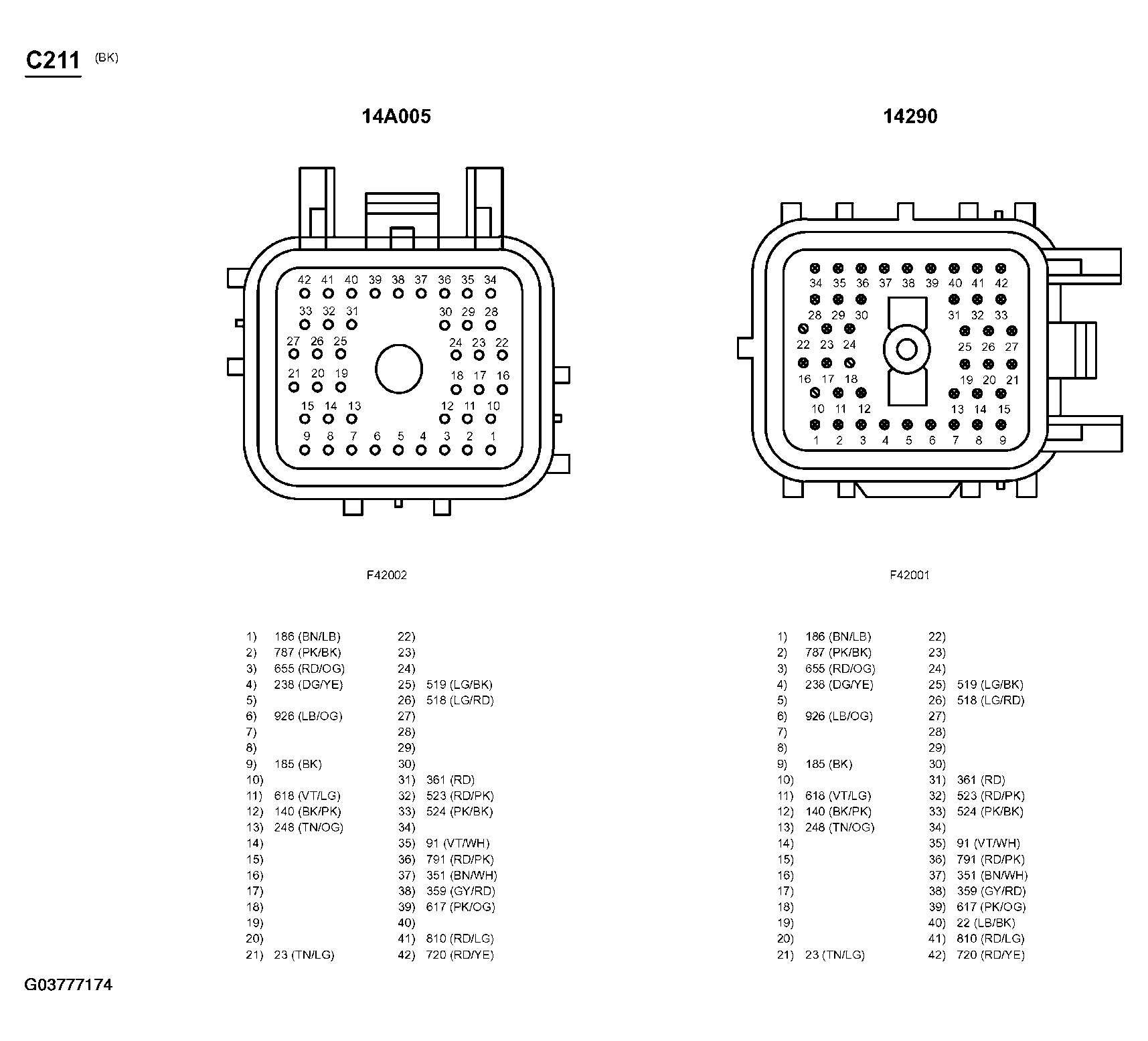

Fig 60: Inline Connector End View (C211)

G03777174

Courtesy of FORD MOTOR CO.

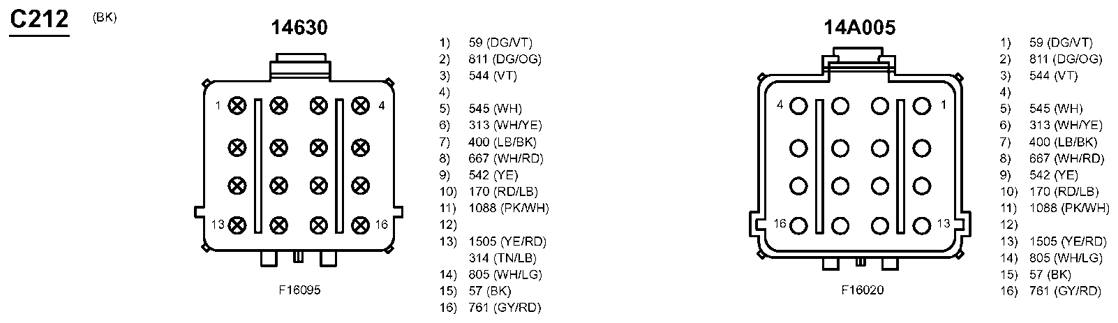

Fig 61: Inline Connector End View (C212)

G07834935

Courtesy of FORD MOTOR CO.

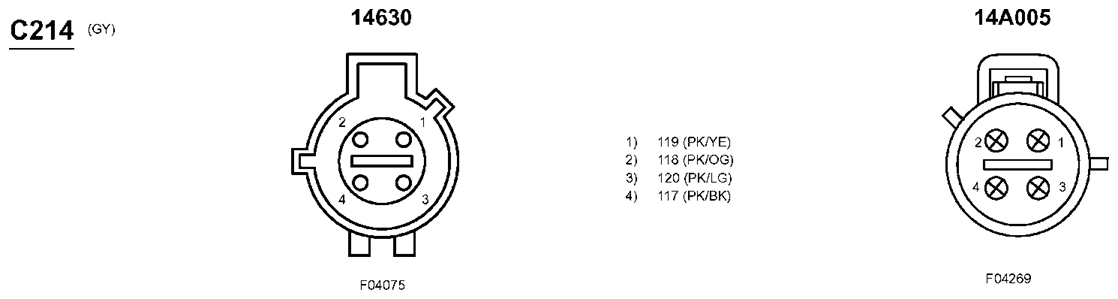

Fig 62: Inline Connector End View (C214)

G07834936

Courtesy of FORD MOTOR CO.

Fig 63: Driver Air Bag Unit Connector End View (C216)

G07834937

Courtesy of FORD MOTOR CO.

Fig 64: Air Bag Sliding Contact Connector End View (C218a)

G07834938

Courtesy of FORD MOTOR CO.

Fig 65: Air Bag Sliding Contact Connector End View (C218b)

G07834939

Courtesy of FORD MOTOR CO.

Fig 66: Inline Connector End View (C219)

G07834940

Courtesy of FORD MOTOR CO.

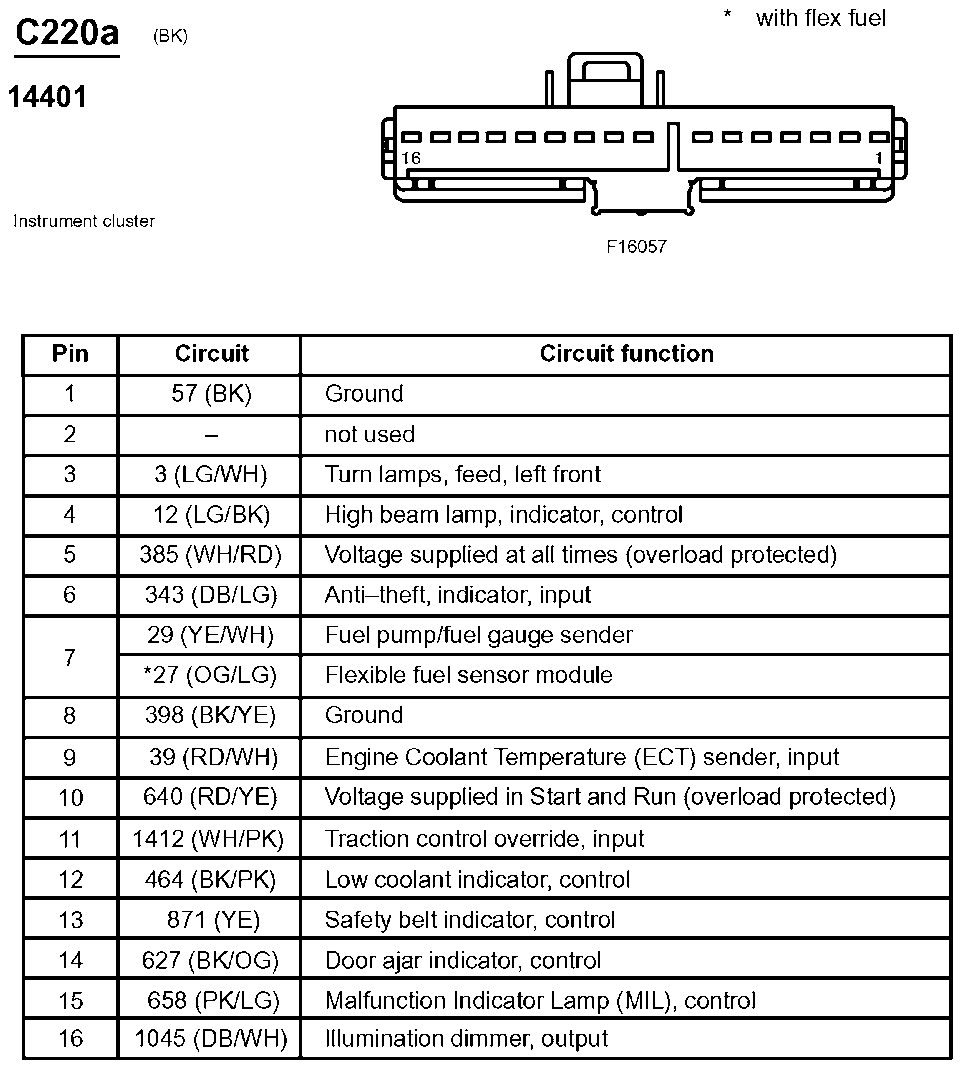

Fig 67: Instrument Cluster Connector End View (C220a)

G07834941

Courtesy of FORD MOTOR CO.

Fig 68: Instrument Cluster Connector End View (C220b)

G07834942

Courtesy of FORD MOTOR CO.

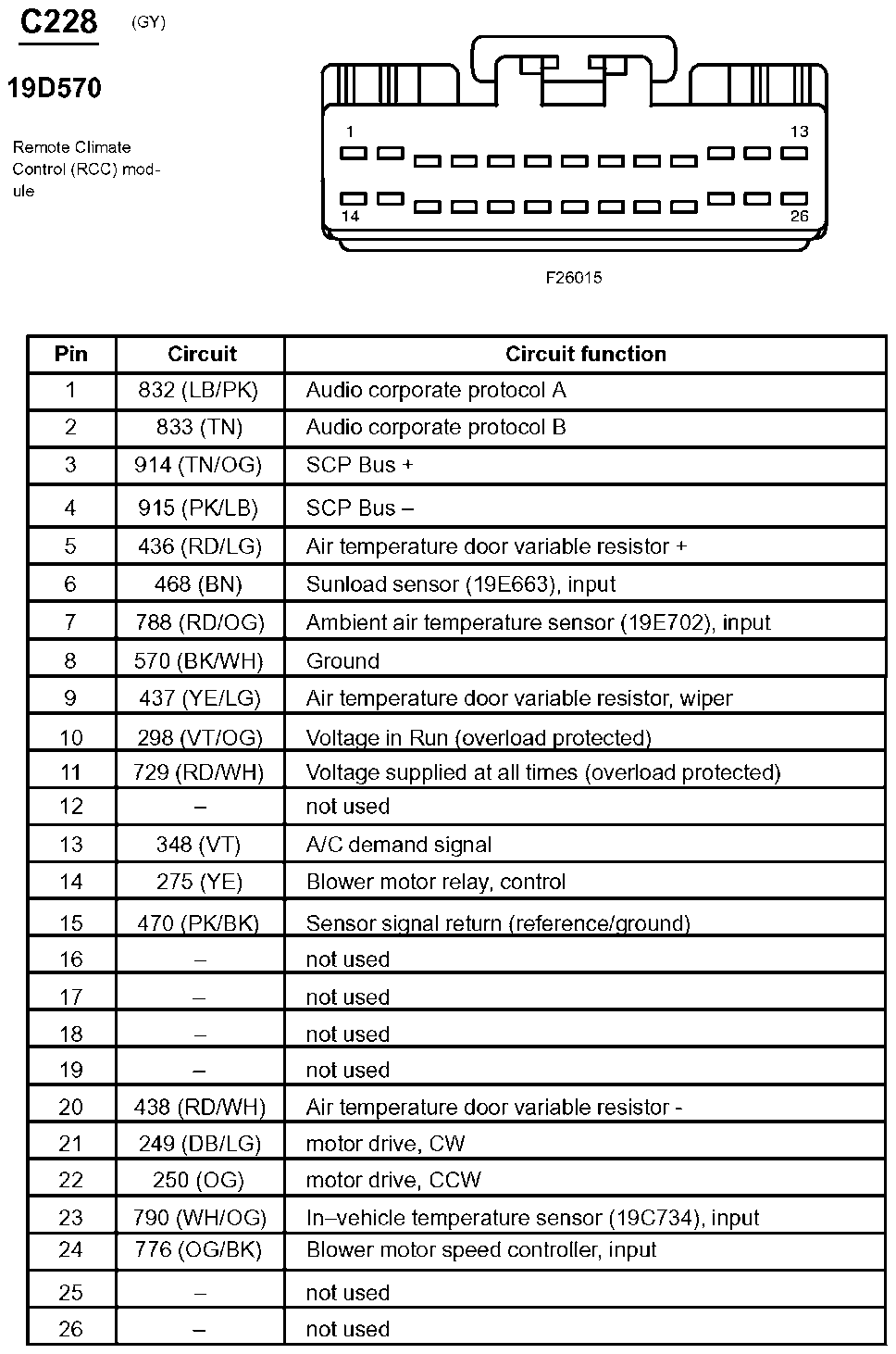

Fig 69: Remote Climate Control (RCC) Module Connector End View (C228)

G07834943

Courtesy of FORD MOTOR CO.

Fig 70: In-Vehicle Temperature Sensor Connector End View (C233)

G07834944

Courtesy of FORD MOTOR CO.

Fig 71: CD Changer Connector End View (C243)

G07834945

Courtesy of FORD MOTOR CO.

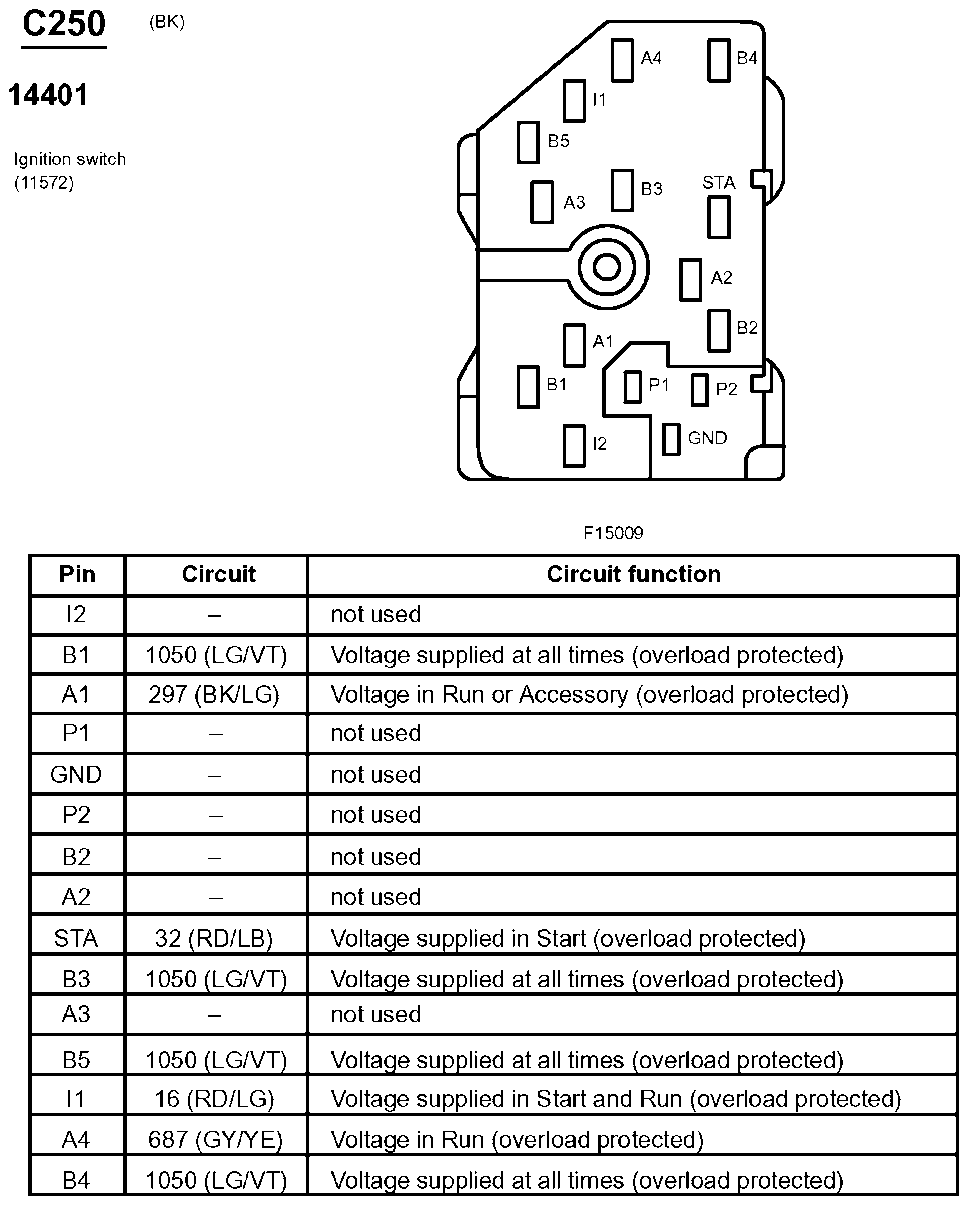

Fig 72: Ignition Switch Connector End View (C250)

G07834946

Courtesy of FORD MOTOR CO.

Fig 73: Data Link Connector (DLC) Connector End View (C251)

G07834947

Courtesy of FORD MOTOR CO.

Fig 74: Passive Anti-Theft Transceiver Module Connector End View (C252)

G07834948

Courtesy of FORD MOTOR CO.

Fig 75: Glove Box Lamp Connector End View (C254)

G07834949

Courtesy of FORD MOTOR CO.

Fig 76: Passenger Air Bag Module Connector End View (C256)

G07834950

Courtesy of FORD MOTOR CO.

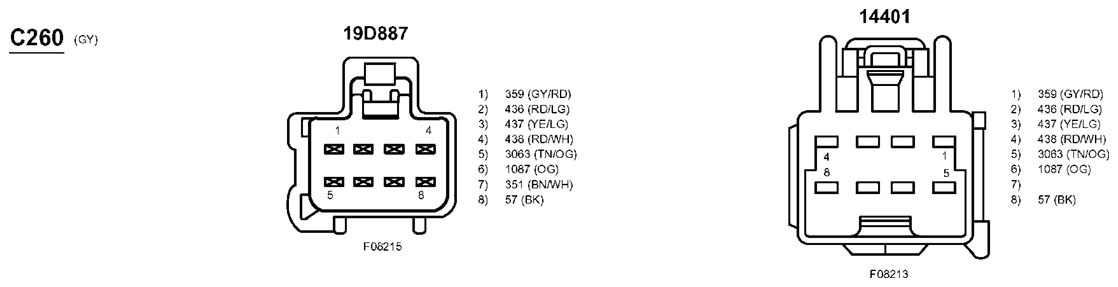

Fig 77: Inline Connector End View (C260)

G07834951

Courtesy of FORD MOTOR CO.

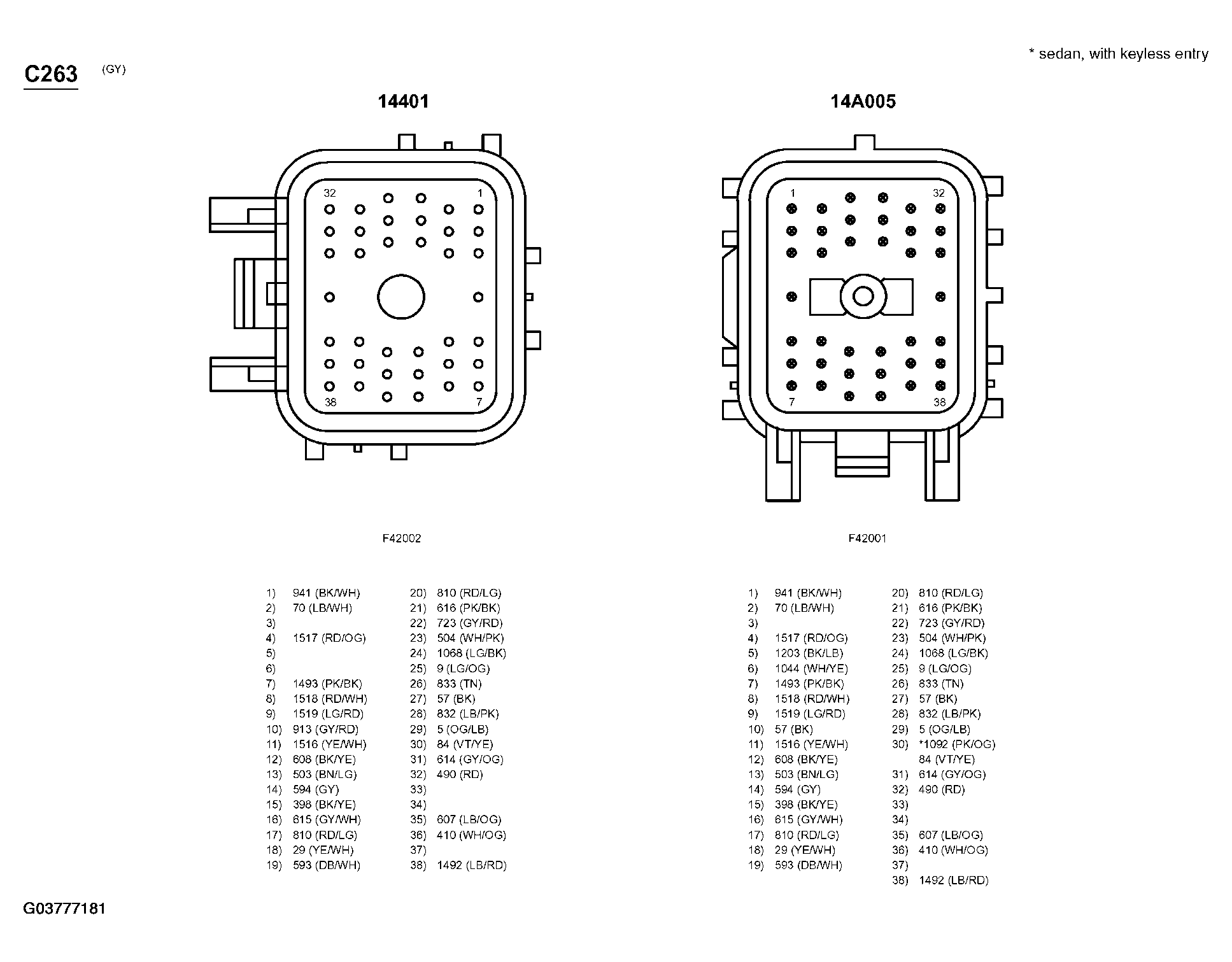

Fig 78: Inline Connector End View (C263)

G03777181

Courtesy of FORD MOTOR CO.

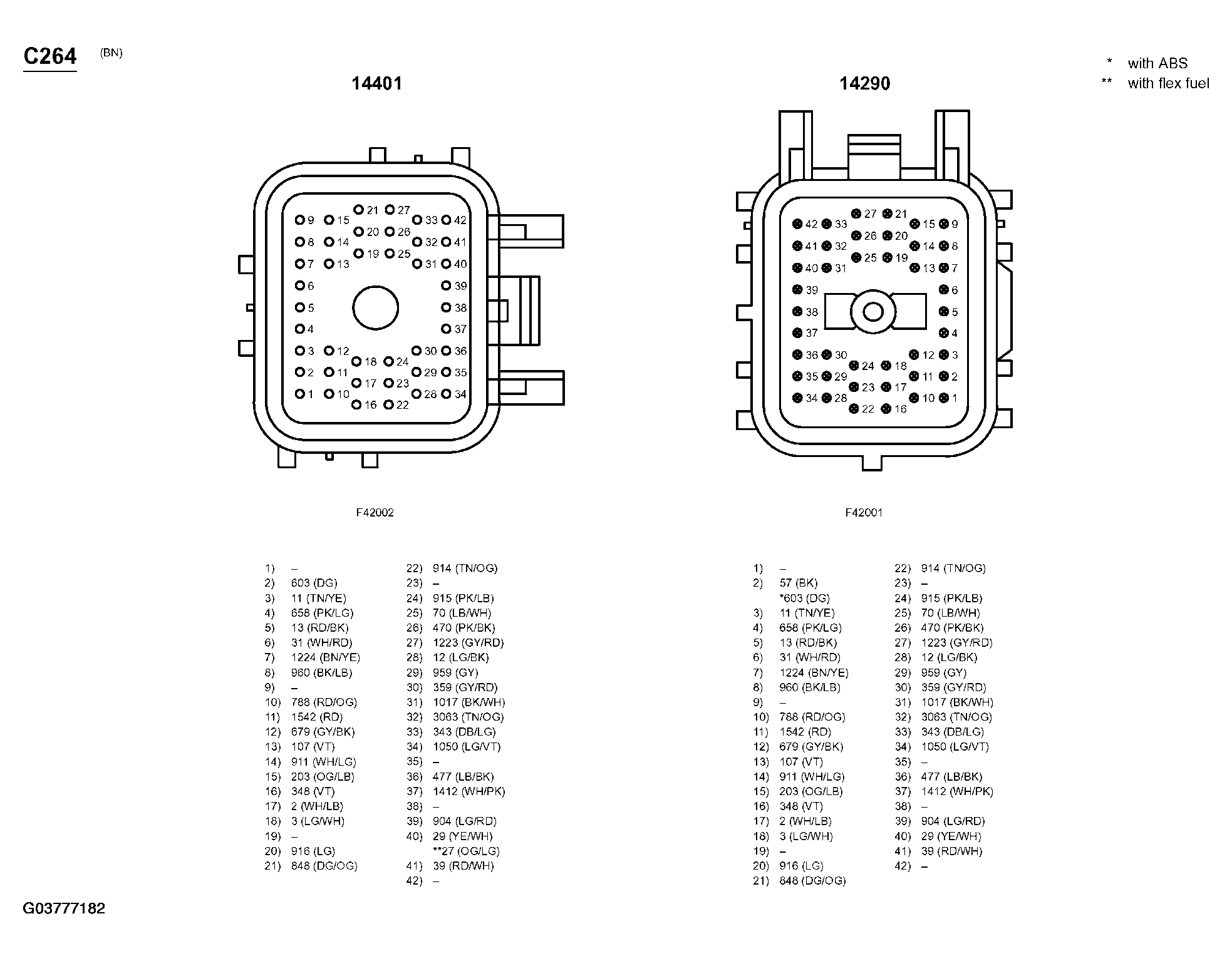

Fig 79: Inline Connector End View (C264)

G03777182

Courtesy of FORD MOTOR CO.

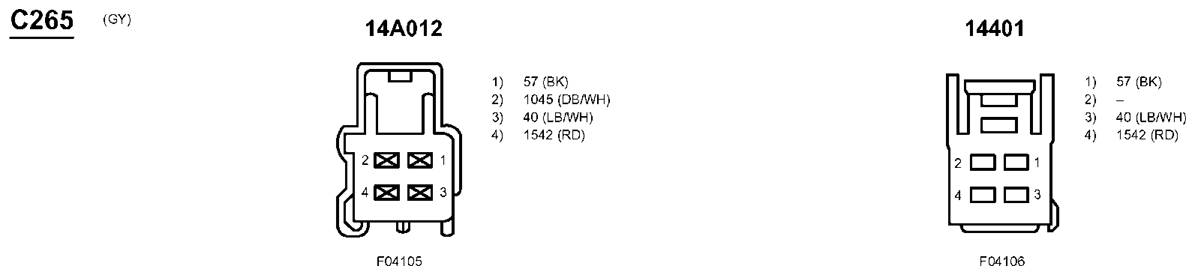

Fig 80: Inline Connector End View (C265)

G03777183

Courtesy of FORD MOTOR CO.

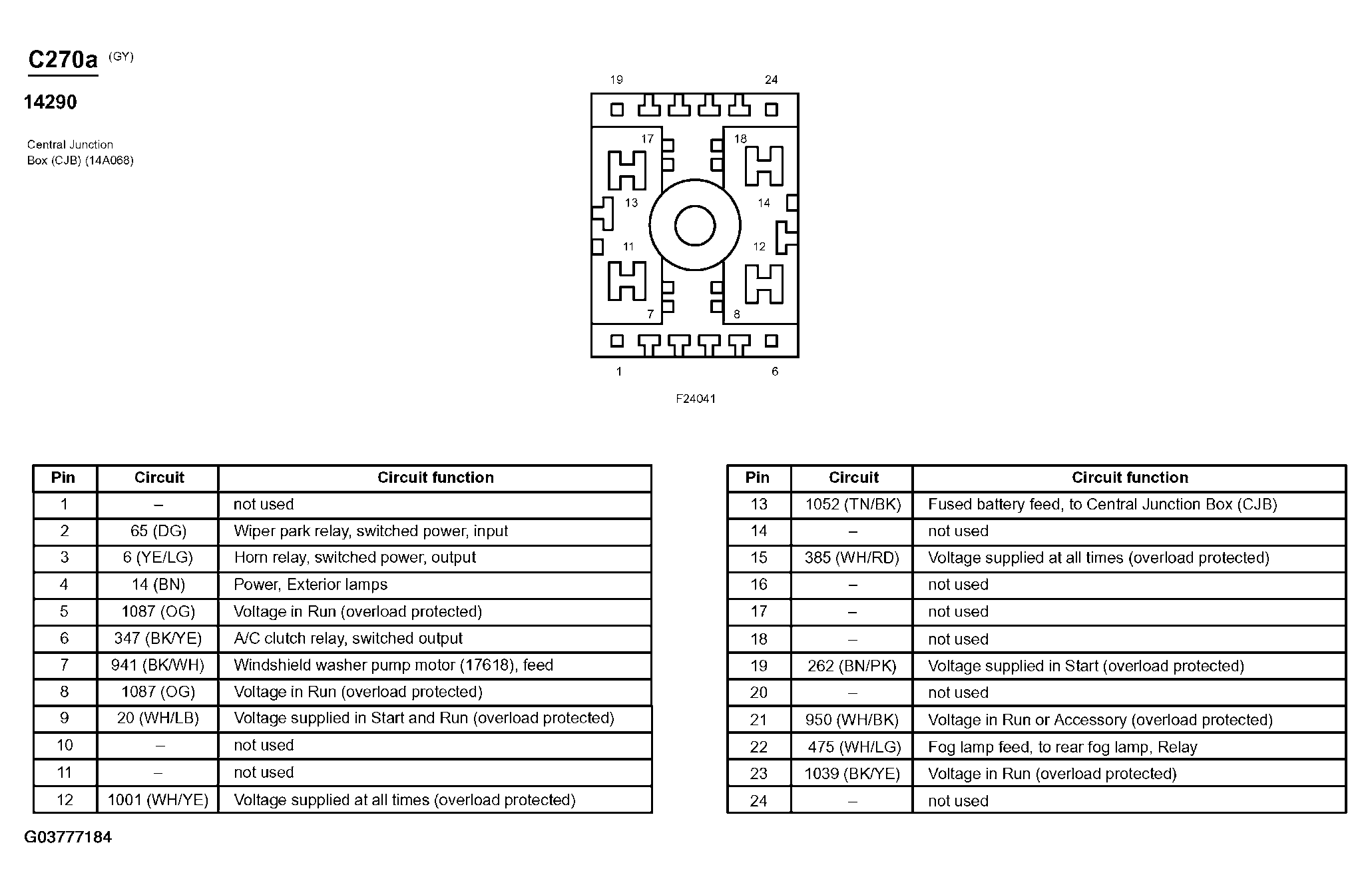

Fig 81: Central Junction Box (CJB) Connector End View (C270a)

G03777184

Courtesy of FORD MOTOR CO.

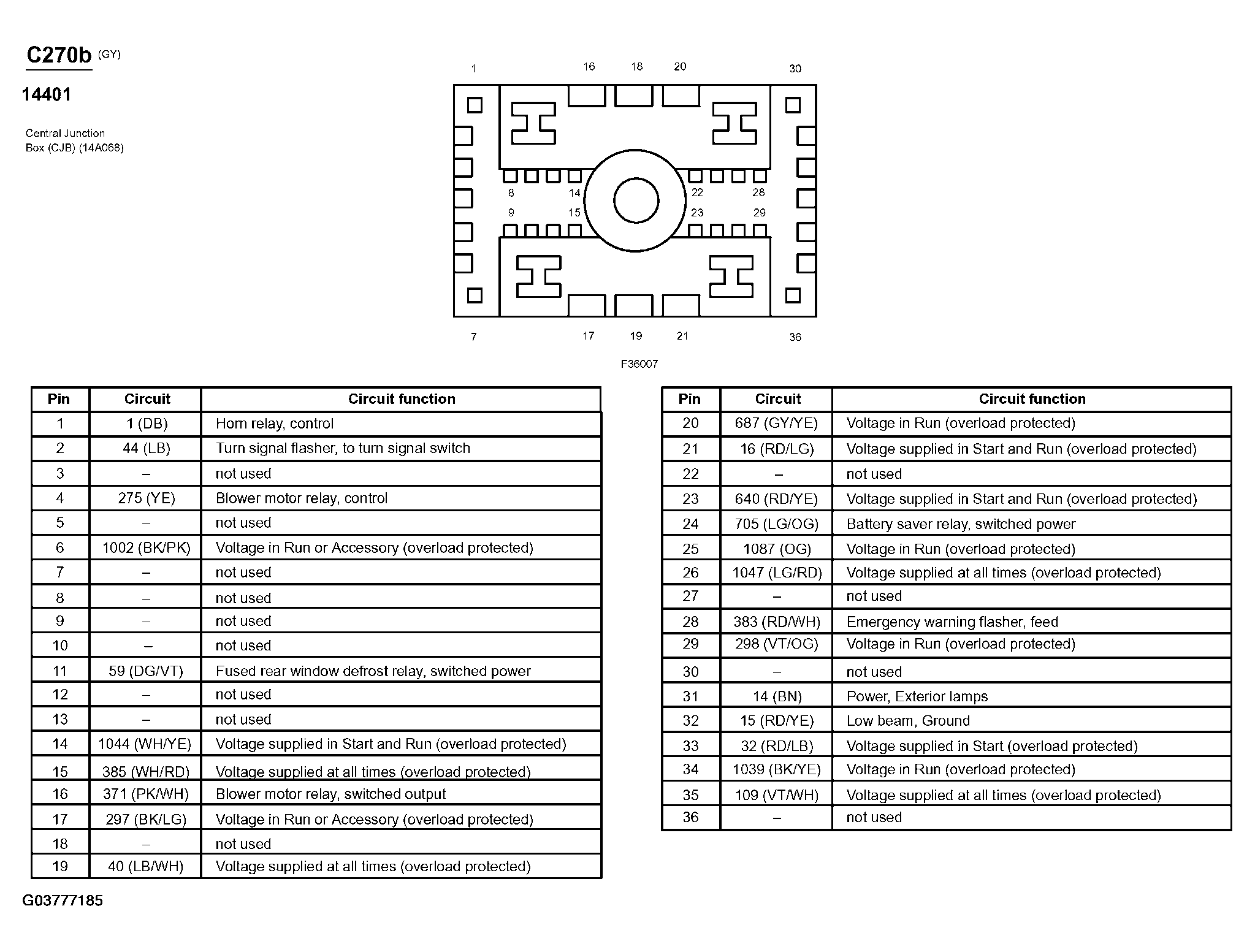

Fig 82: Central Junction Box (CJB) Connector End View (C270b)

G03777185

Courtesy of FORD MOTOR CO.

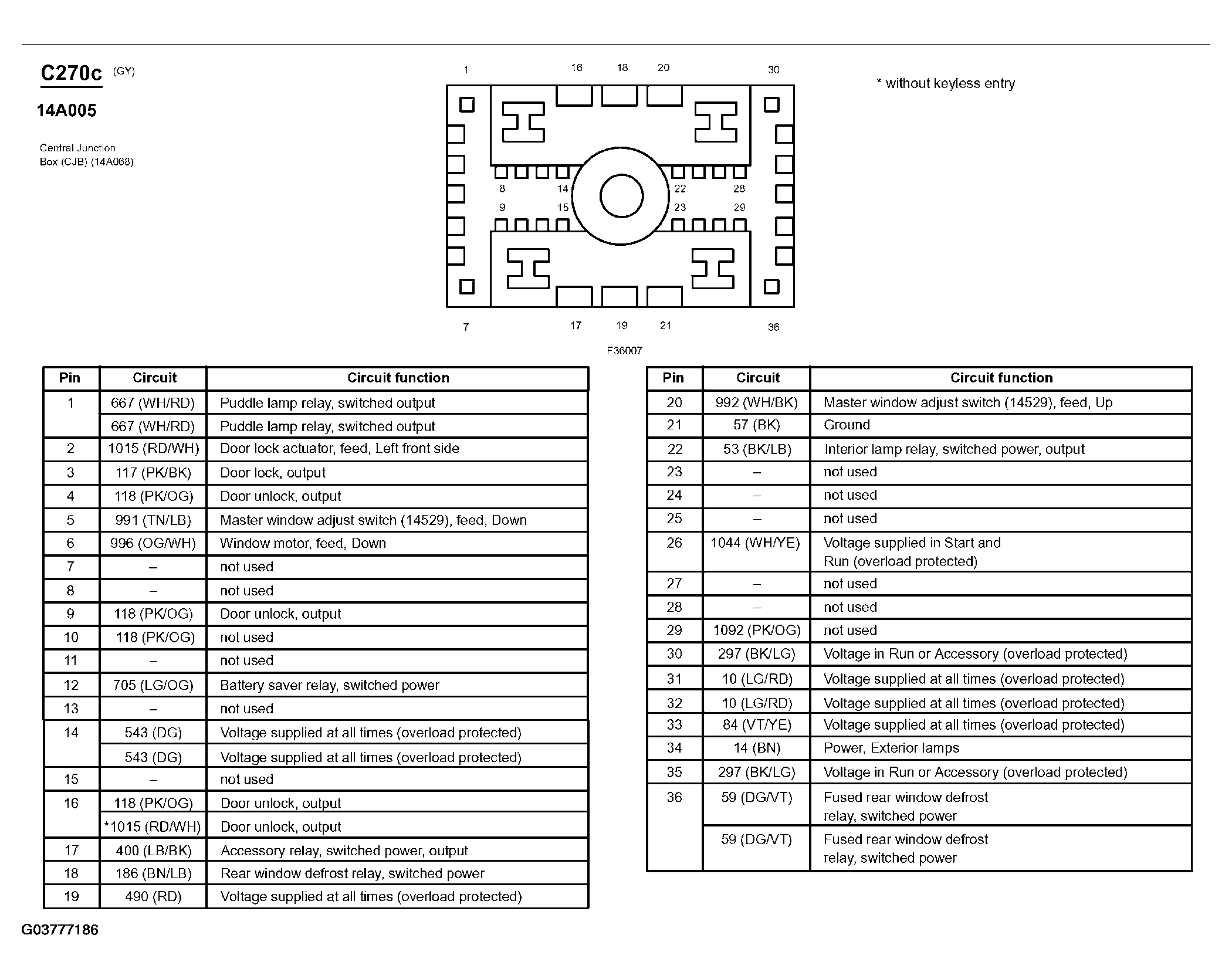

Fig 83: Central Junction Box (CJB) Connector End View (C270c)

G03777186

Courtesy of FORD MOTOR CO.

Fig 84: Front Blower Motor Speed Controller Connector End View (C271a)

G07834952

Courtesy of FORD MOTOR CO.

Fig 85: Front Blower Motor Speed Controller Connector End View (C271b)

G07834953

Courtesy of FORD MOTOR CO.

Fig 86: Deactivator Switch Connector End View (C277)

G07834954

Courtesy of FORD MOTOR CO.

Fig 87: Brake Pedal Position Switch Connector End View (C278)

G07834955

Courtesy of FORD MOTOR CO.

Fig 88: Traction Control Switch Connector End View (C280)

G07834956

Courtesy of FORD MOTOR CO.

Fig 89: Autolamp Sensor Connector End View (C287)

G07834957

Courtesy of FORD MOTOR CO.

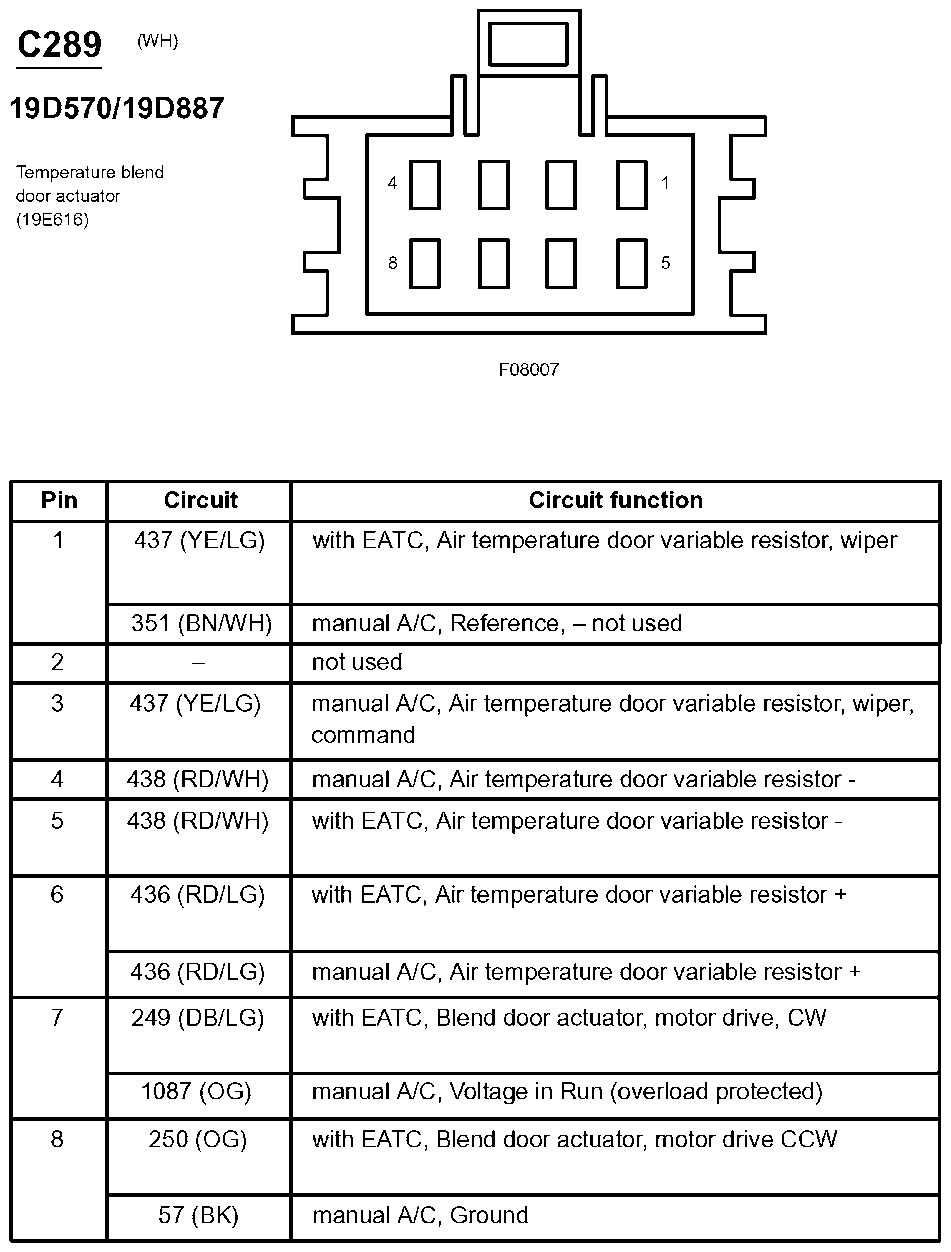

Fig 90: Temperature Blend Door Actuator Connector End View (C289)

G07834958

Courtesy of FORD MOTOR CO.

Fig 91: Inline Connector End View (C291)

G07834959

Courtesy of FORD MOTOR CO.

Fig 92: Front Blower Motor Resistor Assembly Connector End View (C293)

G07834960

Courtesy of FORD MOTOR CO.

Fig 93: Function Selector Switch Assembly Connector End View (C294a)

G07834961

Courtesy of FORD MOTOR CO.

Fig 94: Function Selector Switch Assembly Connector End View (C294b)

G07834962

Courtesy of FORD MOTOR CO.

Fig 95: Function Selector Switch Assembly Connector End View (C294c)

G07834963

Courtesy of FORD MOTOR CO.

Fig 96: Evaporator Discharge Air Temperature Sensor Connector End View (C296)

G07834964

Courtesy of FORD MOTOR CO.

Fig 97: High Mounted Stoplamp Connector End View (C302a)

G07834965

Courtesy of FORD MOTOR CO.

Fig 98: High Mounted Stoplamp Connector End View (C302b)

G07834966

Courtesy of FORD MOTOR CO.

Fig 99: Side Air Bag Sensor, Right Connector End View (C304)

G07834967

Courtesy of FORD MOTOR CO.

Fig 100: Side Air Bag Sensor, Left Connector End View (C305)

G07834968

Courtesy of FORD MOTOR CO.

Fig 101: Parking Brake Switch Connector End View (C306)

G07834969

Courtesy of FORD MOTOR CO.

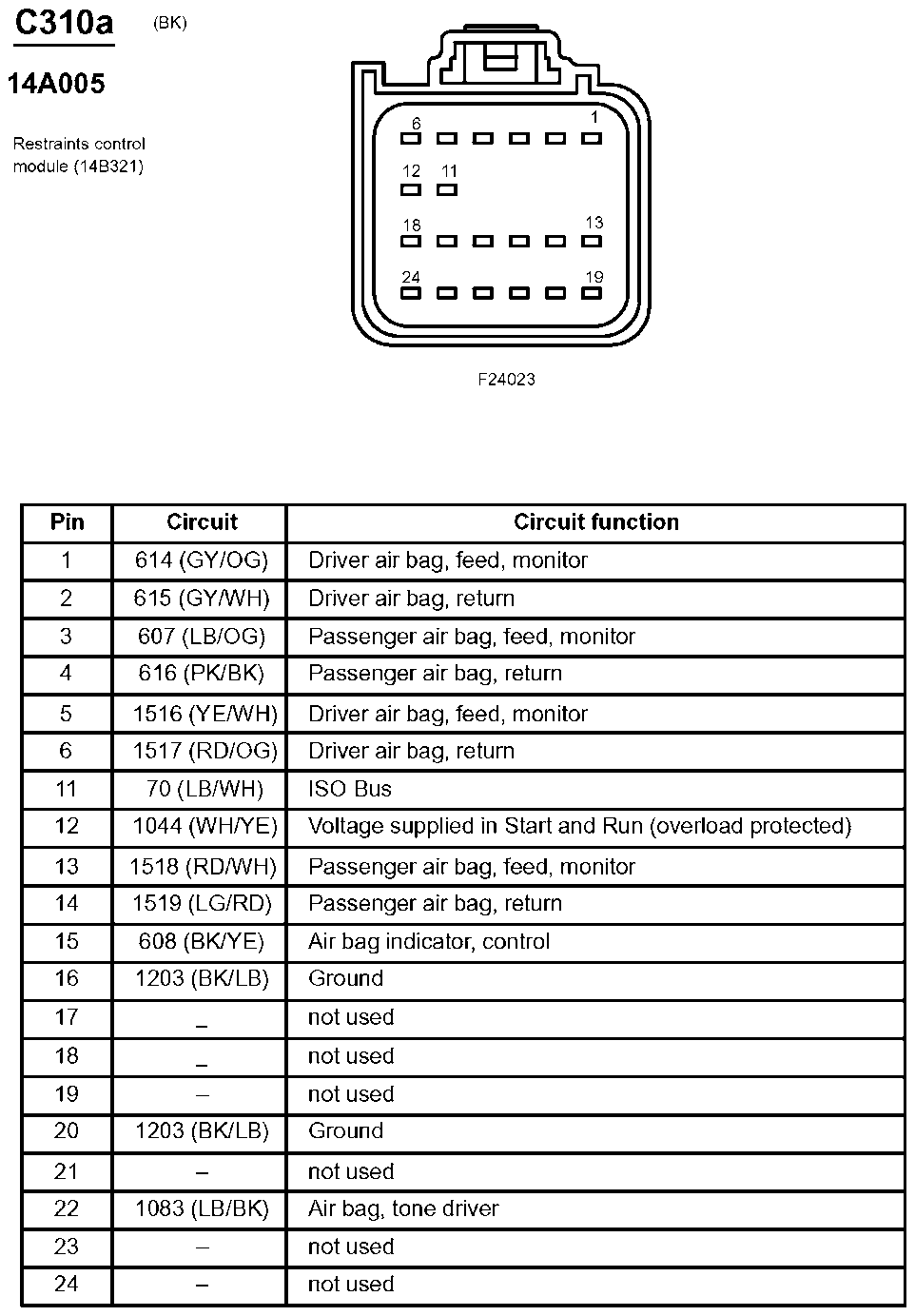

Fig 102: Restraints Control Module Connector End View (C310a)

G03777192

Courtesy of FORD MOTOR CO.

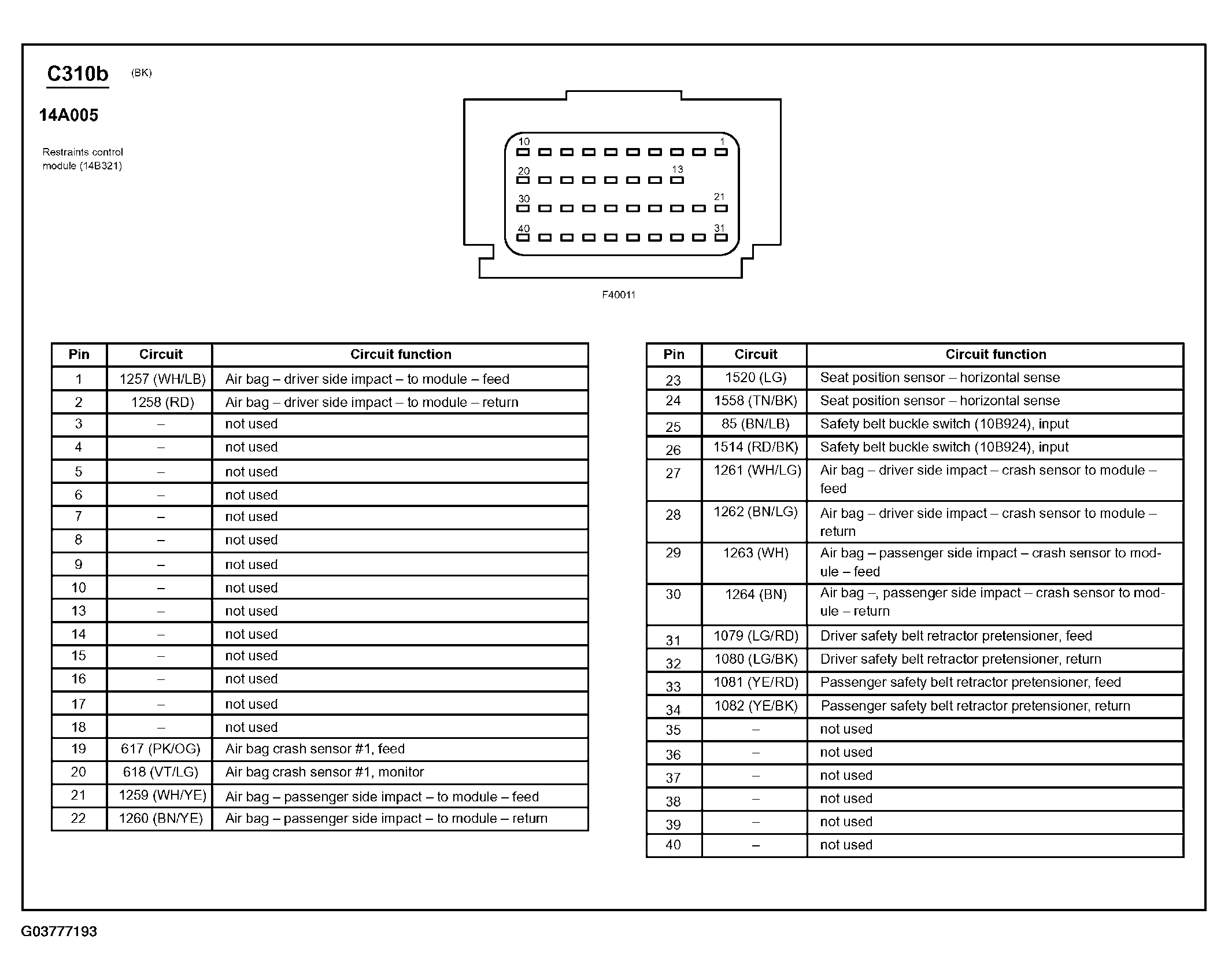

Fig 103: Restraints Control Module Connector End View (C310b)

G03777193

Courtesy of FORD MOTOR CO.

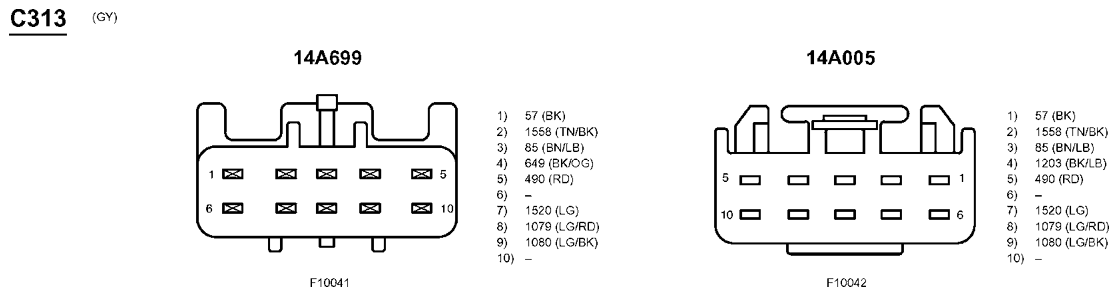

Fig 104: Inline Connector End View (C313)

G07834970

Courtesy of FORD MOTOR CO.

Fig 105: Inline Connector End View (C314)

G07834971

Courtesy of FORD MOTOR CO.

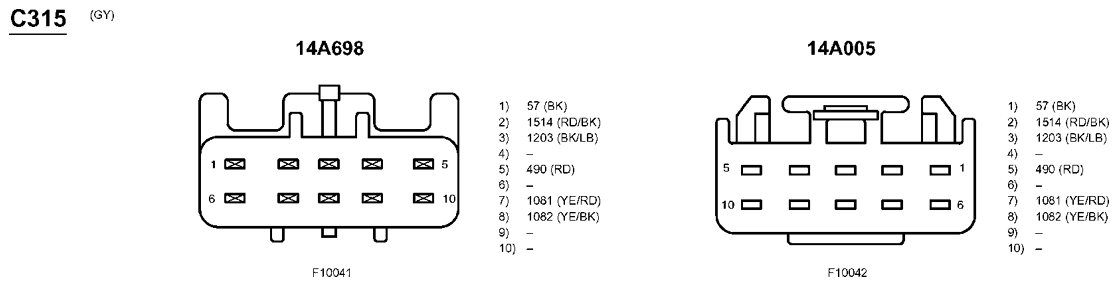

Fig 106: Inline Connector End View (C315)

G07834972

Courtesy of FORD MOTOR CO.

Fig 107: Inline Connector End View (C316)

G07834973

Courtesy of FORD MOTOR CO.

Fig 108: Cigar Lighter, Front Connector End View (C319)

G07834974

Courtesy of FORD MOTOR CO.

Fig 109: Inline Connector End View (C327)

G07834975

Courtesy of FORD MOTOR CO.

Fig 110: Seat Adjust Switch, Driver Side Front Connector End View (C330)

G07834976

Courtesy of FORD MOTOR CO.

Fig 111: Power Seat Motor Assembly, Right Connector End View (C332)

G07834977

Courtesy of FORD MOTOR CO.

Fig 112: Side Air Bag Module, Right Connector End View (C337)

G07834978

Courtesy of FORD MOTOR CO.

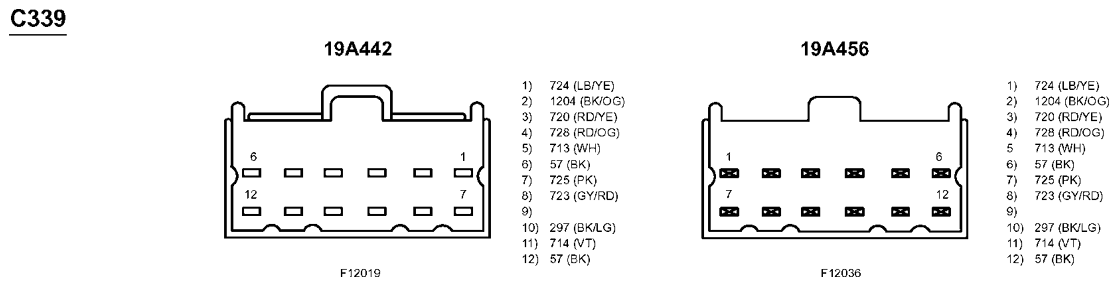

Fig 113: Inline Connector End View (C339)

G07834979

Courtesy of FORD MOTOR CO.

Fig 114: Microphone Connector End View (C340)

G07834980

Courtesy of FORD MOTOR CO.

Fig 115: Seat Track Position Sensor, Left Connector End View (C356)

G07834981

Courtesy of FORD MOTOR CO.

Fig 116: Power Seat Motor Assembly, Left Connector End View (C357)

G07834982

Courtesy of FORD MOTOR CO.

Fig 117: Seat Track Position Sensor, Left Connector End View (C358)

G07834983

Courtesy of FORD MOTOR CO.

Fig 118: Seat Adjust Switch, Driver Side Front Connector End View (C360)

G07834984

Courtesy of FORD MOTOR CO.

Fig 119: Side Air Bag Module, Left Connector End View (C367)

G07834985

Courtesy of FORD MOTOR CO.

Fig 120: Ashtray Illumination Lamp Connector End View (C370)

G07834986

Courtesy of FORD MOTOR CO.

Fig 121: In-Line Fuse Connector End View (C375)

G07834987

Courtesy of FORD MOTOR CO.

Fig 122: Power Point Connector End View (C380)

G07834988

Courtesy of FORD MOTOR CO.

Fig 123: Safety Belt Assembly, Left Connector End View (C381)

G07834989

Courtesy of FORD MOTOR CO.

Fig 124: Power Antenna Module Connector End View (C387)

G07834990

Courtesy of FORD MOTOR CO.

Fig 125: Rear Control Unit Connector End View (C388a)

G07834991

Courtesy of FORD MOTOR CO.

Fig 126: Rear Control Unit (RCU) Connector End View (C388b)

G07834992

Courtesy of FORD MOTOR CO.

Fig 127: Rear Control Unit (RCU) Connector End View (C388c)

G07834993

Courtesy of FORD MOTOR CO.

Fig 128: Safety Belt Assembly, Right Connector End View (C389)

G07834994

Courtesy of FORD MOTOR CO.

Fig 129: Docking Station Connector End View (C390)

G07834995

Courtesy of FORD MOTOR CO.

Fig 130: Inertia Fuel Shutoff (IFS) Switch Connector End View (C392)

G07834996

Courtesy of FORD MOTOR CO.

Fig 131: Rear Window Defrost Grid Connector End View (C402a)

G07834997

Courtesy of FORD MOTOR CO.

Fig 132: Rear Window Defrost Grid Connector End View (C402b)

G07834998

Courtesy of FORD MOTOR CO.

Fig 133: Inline Connector End View (C406)

G07834999

Courtesy of FORD MOTOR CO.

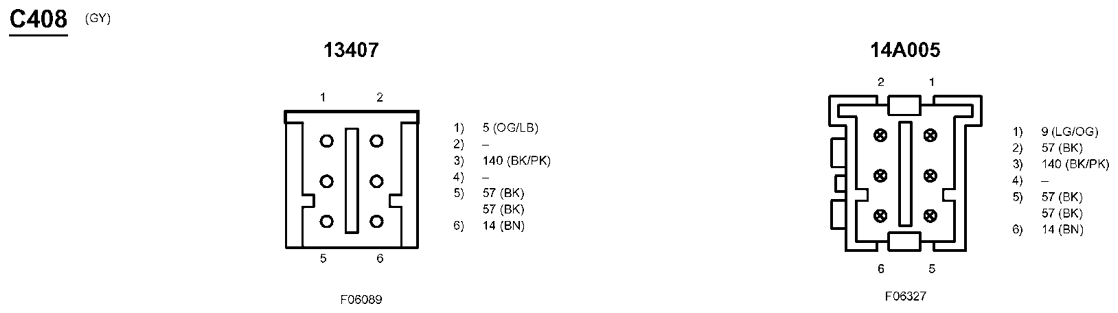

Fig 134: Inline Connector End View (C408)

G07835000

Courtesy of FORD MOTOR CO.

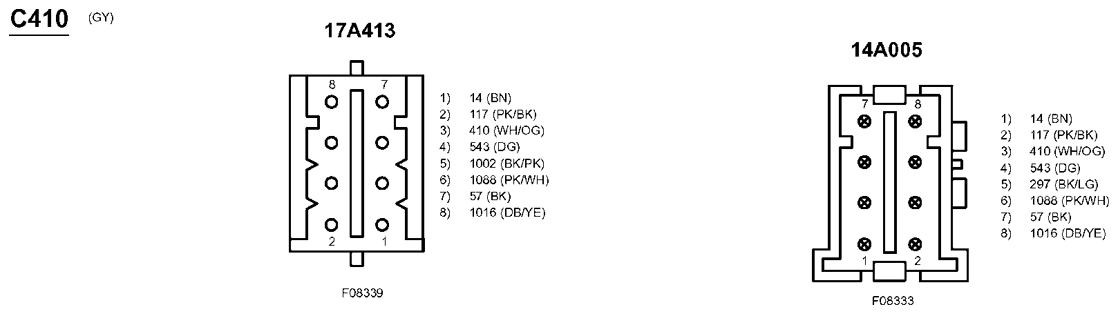

Fig 135: Inline Connector End View (C410)

G07835001

Courtesy of FORD MOTOR CO.

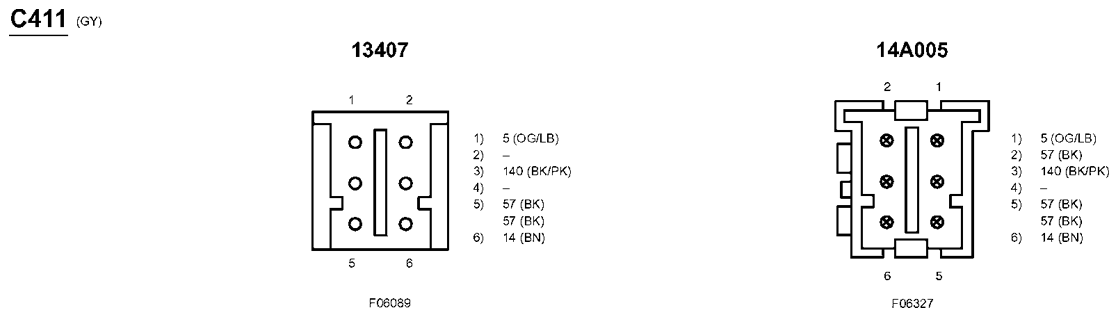

Fig 136: Inline Connector End View (C411)

G07835002

Courtesy of FORD MOTOR CO.

Fig 137: Park/turn Lamp, Left Rear Connector End View (C412)

G07835003

Courtesy of FORD MOTOR CO.

Fig 138: Turn Lamp, Left Rear Connector End View (C413)

G07835004

Courtesy of FORD MOTOR CO.

Fig 139: Park/Turn Lamp, Right Rear Connector End View (C415)

G07835005

Courtesy of FORD MOTOR CO.

Fig 140: Turn Lamp, Right Rear Connector End View (C416)

G07835006

Courtesy of FORD MOTOR CO.

Fig 141: Park/Stop Lamp, Right Rear Connector End View (C418)

G07835007

Courtesy of FORD MOTOR CO.

Fig 142: Park/Stop Lamp. Left Rear Connector End View (C419)

G07835008

Courtesy of FORD MOTOR CO.

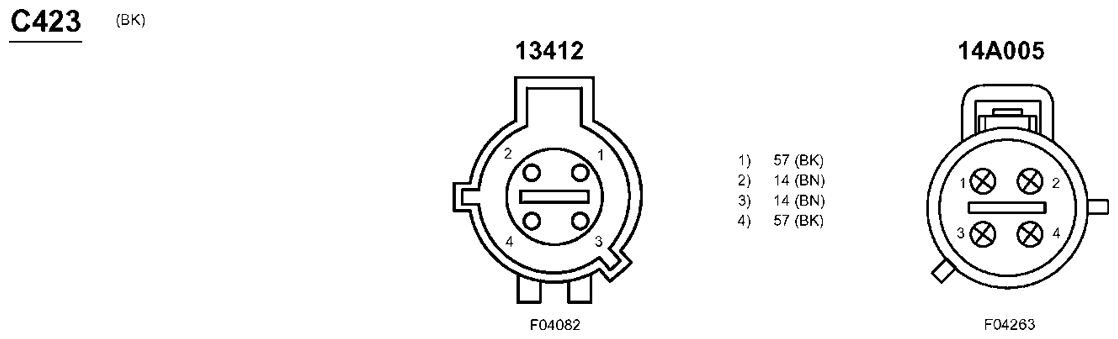

Fig 143: Inline Connector End View (C423)

G07835009

Courtesy of FORD MOTOR CO.

Fig 144: Wheel Speed Sensor, Right Rear Connector End View (C426)

G07835010

Courtesy of FORD MOTOR CO.

Fig 145: Luggage Compartment Lamp Connector End View (C428)

G07835011

Courtesy of FORD MOTOR CO.

Fig 146: Luggage Compartment Lid Release Solenoid Connector End View (C430)

G07835012

Courtesy of FORD MOTOR CO.

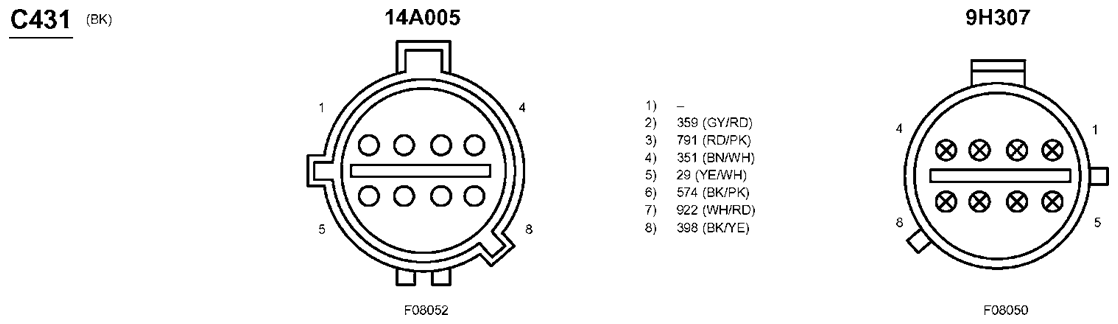

Fig 147: Inline Connector End View (C431)

G07835013

Courtesy of FORD MOTOR CO.

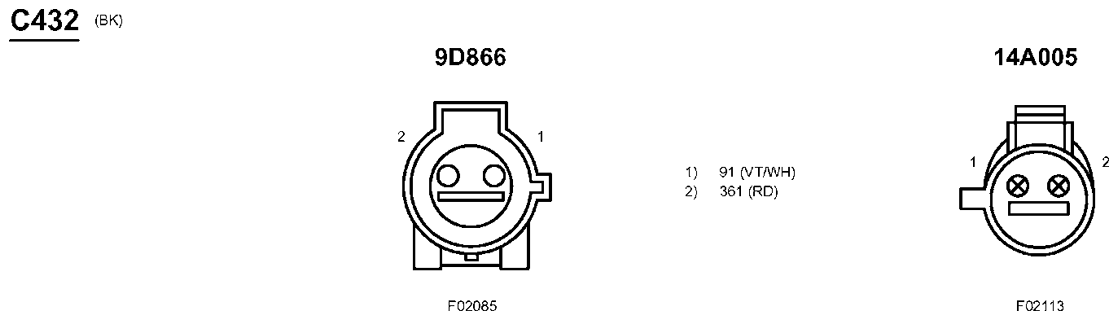

Fig 148: Inline Connector End View (C432)

G07835014

Courtesy of FORD MOTOR CO.

Fig 149: Fuel Pump Driver Module Connector End View (C433)

G07835015

Courtesy of FORD MOTOR CO.

Fig 150: Fuel Tank Pressure Transducer Sensor Connector End View (C435)

G07835016

Courtesy of FORD MOTOR CO.

Fig 151: Inline Connector End View (C438)

G07835017

Courtesy of FORD MOTOR CO.

Fig 152: Wheel Speed Sensor, Left Rear Connector End View (C440)

G07835018

Courtesy of FORD MOTOR CO.

Fig 153: Evaporative Emission (EVAP) Canister Vent Valve Connector End View (C450)

G07835019

Courtesy of FORD MOTOR CO.

Fig 154: Reversing Lamp, Left Connector End View (C451)

G07835020

Courtesy of FORD MOTOR CO.

Fig 155: License Plate Lamp, Left Connector End View (C452)

G07835021

Courtesy of FORD MOTOR CO.

Fig 156: Reversing Lamp, Right Connector End View (C461)

G07835022

Courtesy of FORD MOTOR CO.

Fig 157: License Plate Lamp, Right Connector End View (C462)

G07835023

Courtesy of FORD MOTOR CO.

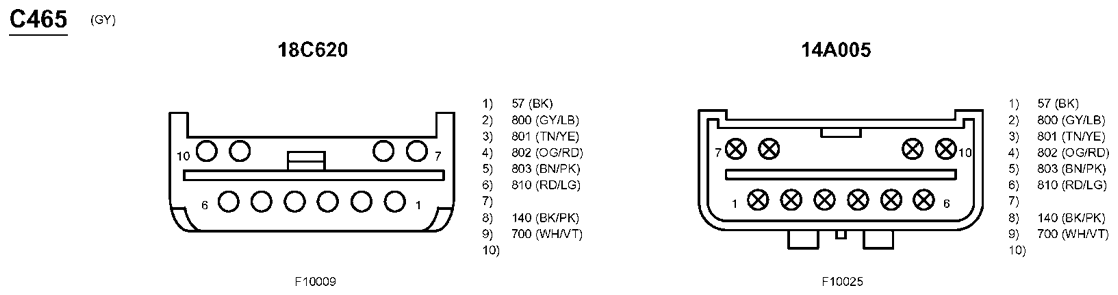

Fig 158: Inline Connector End View (C465)

G07835024

Courtesy of FORD MOTOR CO.

Fig 159: High Mounted Stoplamp Connector End View (C475)

G07835025

Courtesy of FORD MOTOR CO.

Fig 160: Rear Wiper Motor Assembly Connector End View (C476)

G07835026

Courtesy of FORD MOTOR CO.

Fig 161: Rear Window Washer Pump Motor Connector End View (C477)

G07835027

Courtesy of FORD MOTOR CO.

Fig 162: Liftgate Glass Ajar Switch Connector End View (C478)

G07835028

Courtesy of FORD MOTOR CO.

Fig 163: Liftgate Ajar Switch Connector End View (C479)

G07835029

Courtesy of FORD MOTOR CO.

Fig 164: Liftgate Lock Actuator Connector End View (C480)

G07835030

Courtesy of FORD MOTOR CO.

Fig 165: Side Lamp, Left Rear Connector End View (C481)

G07835031

Courtesy of FORD MOTOR CO.

Fig 166: Side Lamp, Right Rear Connector End View (C482)

G07835032

Courtesy of FORD MOTOR CO.

Fig 167: Anti-Theft Luggage Compartment Switch Connector End View (C483)

G07835033

Courtesy of FORD MOTOR CO.

Fig 168: Speaker, Left Rear Connector End View (C484)

G07835034

Courtesy of FORD MOTOR CO.

Fig 169: Speaker, Right Rear Connector End View (C485)

G07835035

Courtesy of FORD MOTOR CO.

Fig 170: Reversing Lamp, Left Connector End View (C487)

G07835036

Courtesy of FORD MOTOR CO.

Fig 171: Reversing Lamp, Right Connector End View (C488)

G07835037

Courtesy of FORD MOTOR CO.

Fig 172: Cargo Space Lamp Connector End View (C489)

G07835038

Courtesy of FORD MOTOR CO.

Fig 173: License Lamps Connector End View (C490)

G07835039

Courtesy of FORD MOTOR CO.

Fig 174: Pulse Stretcher Module Connector End View (C491)

G07835040

Courtesy of FORD MOTOR CO.

Fig 175: Key Pad Switch Assembly Connector End View (C500)

G07835041

Courtesy of FORD MOTOR CO.

Fig 176: Lock Cylinder Switch, Left Connector End View (C502)

G07835042

Courtesy of FORD MOTOR CO.

Fig 177: Master Window Adjust Switch Connector End View (C504a)

G07835043

Courtesy of FORD MOTOR CO.

Fig 178: Master Window Adjust Switch Connector End View (C504b)

G07835044

Courtesy of FORD MOTOR CO.

Fig 179: Door, Lock Switch Driver Side Connector End View (C505)

G07835045

Courtesy of FORD MOTOR CO.

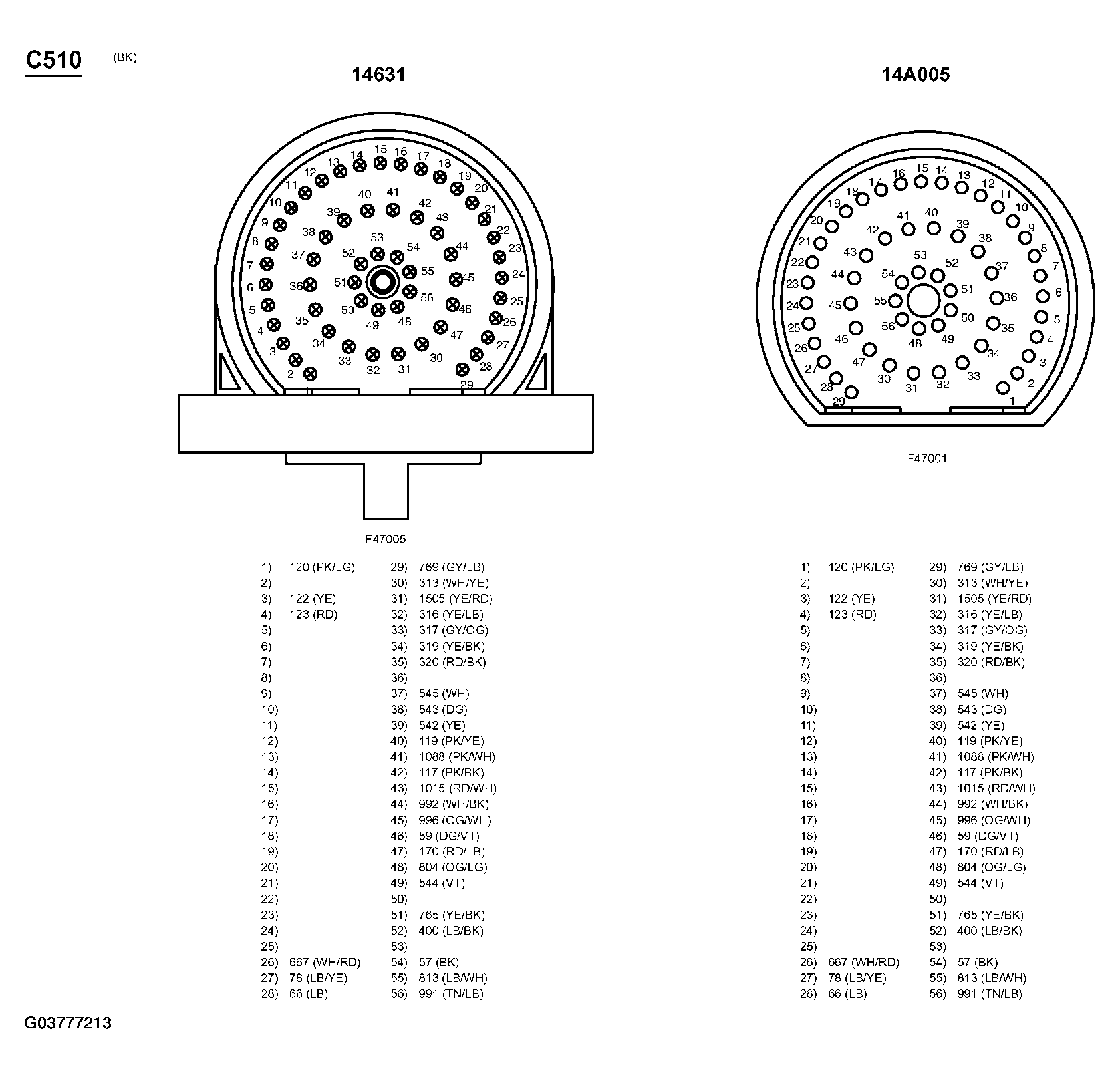

Fig 180: Inline Connector End View (C510)

G03777213

Courtesy of FORD MOTOR CO.

Fig 181: Tweeter, Left Front Connector End View (C513)

G07835046

Courtesy of FORD MOTOR CO.

Fig 182: Exterior Rear View Mirror, Driver Side Connector End View (C520)

G07835047

Courtesy of FORD MOTOR CO.

Fig 183: Speaker, Left Front Connector End View (C523)

G07835048

Courtesy of FORD MOTOR CO.

Fig 184: Power Window Motor, Driver Side Front Connector End View (C524)

G07835049

Courtesy of FORD MOTOR CO.

Fig 185: Door Lock Actuator, Left Front Connector End View (C525)

G07835050

Courtesy of FORD MOTOR CO.

Fig 186: Door Ajar Switch, Left Front Connector End View (C526)

G07835051

Courtesy of FORD MOTOR CO.

Fig 187: Exterior Rear View Mirror Switch Connector End View (C527)

G07835052

Courtesy of FORD MOTOR CO.

Fig 188: Exterior Rear View Mirror, Passenger Side Connector End View (C601)

G07835053

Courtesy of FORD MOTOR CO.

Fig 189: Door Ajar Switch, Right Front Connector End View (C602)

G07835054

Courtesy of FORD MOTOR CO.

Fig 190: Door Lock Actuator, Right Front Connector End View (C603)

G07835055

Courtesy of FORD MOTOR CO.

Fig 191: Window Adjust Switch, Passenger Side Connector End View (C604)

G07835056

Courtesy of FORD MOTOR CO.

Fig 192: Door Lock Switch, Passenger Side Connector End View (C605)

G07835057

Courtesy of FORD MOTOR CO.

Fig 193: Lock Cylinder Switch, Right Connector End View (C607)

G07835058

Courtesy of FORD MOTOR CO.

Fig 194: Power Window Motor, Passenger Side Front Connector End View (C608)

G07835059

Courtesy of FORD MOTOR CO.

Fig 195: Speaker, Right Front Connector End View (C612)

G07835060

Courtesy of FORD MOTOR CO.

Fig 196: Tweeter, Right Front Connector End View (C613)

G07835061

Courtesy of FORD MOTOR CO.

Fig 197: Window Adjust Switch, Left Rear Connector End View (C701)

G07835062

Courtesy of FORD MOTOR CO.

Fig 198: Power Window Motor, Left Rear Connector End View (C703)

G07835063

Courtesy of FORD MOTOR CO.

Fig 199: Door Lock Actuator, Left Rear Connector End View (C704)

G07835064

Courtesy of FORD MOTOR CO.

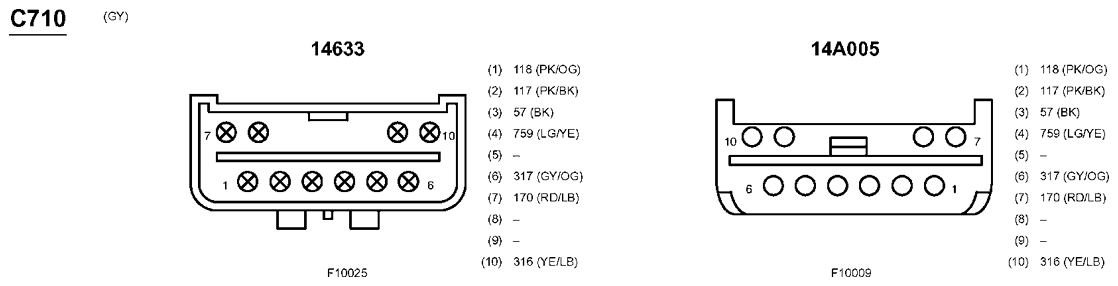

Fig 200: Inline Connector End View (C710)

G07835065

Courtesy of FORD MOTOR CO.

Fig 201: Door Ajar Switch, Left Rear Connector End View (C715)

G07835066

Courtesy of FORD MOTOR CO.

Fig 202: Window Adjust Switch, Right Rear Connector End View (C801)

G07835067

Courtesy of FORD MOTOR CO.

Fig 203: Power Window Motor, Right Rear Connector End View (C803)

G07835068

Courtesy of FORD MOTOR CO.

Fig 204: Door Lock Actuator, Right Rear Connector End View (C804)

G07835069

Courtesy of FORD MOTOR CO.

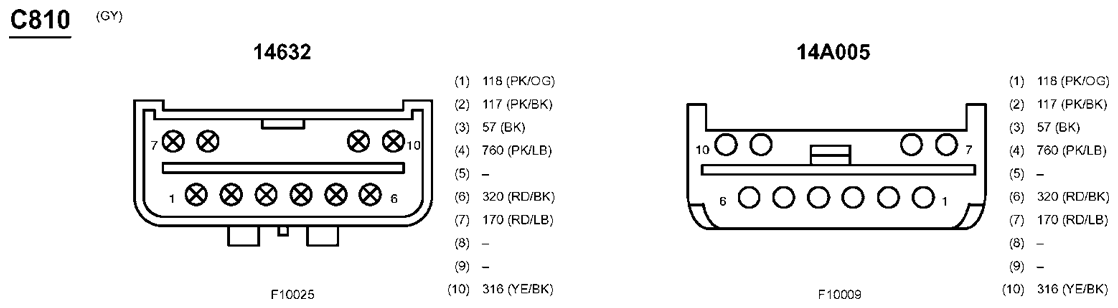

Fig 205: Inline Connector End View (C810)

G07835070

Courtesy of FORD MOTOR CO.

Fig 206: Door Ajar Switch, Right Rear Connector End View (C820)

G07835071

Courtesy of FORD MOTOR CO.

Fig 207: Map Reading Lamps Connector End View (C901)

G07835072

Courtesy of FORD MOTOR CO.

Fig 208: Vanity Mirror Lamp, Right Connector End View (C906)

G07835073

Courtesy of FORD MOTOR CO.

Fig 209: Vanity Mirror Lamp, Left Connector End View (C907)

G07835074

Courtesy of FORD MOTOR CO.

Fig 210: Electrochromatic Inside Mirror Unit Connector End View (C911)

G07835075

Courtesy of FORD MOTOR CO.

Fig 211: Roof Opening Panel Switch Connector End View (C912)

G07835076

Courtesy of FORD MOTOR CO.

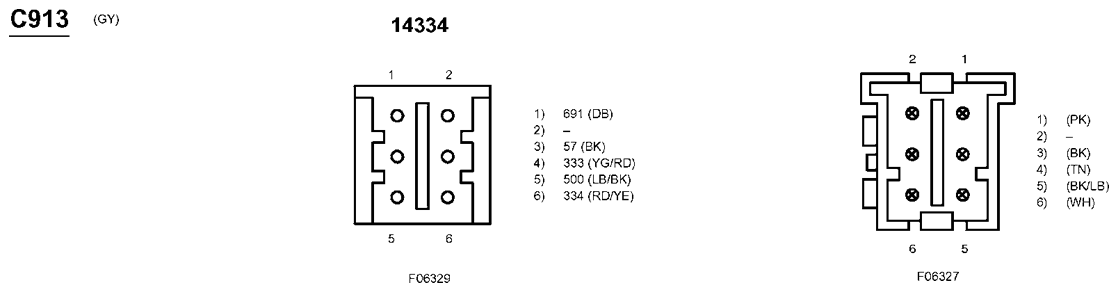

Fig 212: Inline Connector End View (C913)

G07835077

Courtesy of FORD MOTOR CO.

Fig 213: Interior Lamps, Front Connector End View (C918)

G07835078

Courtesy of FORD MOTOR CO.

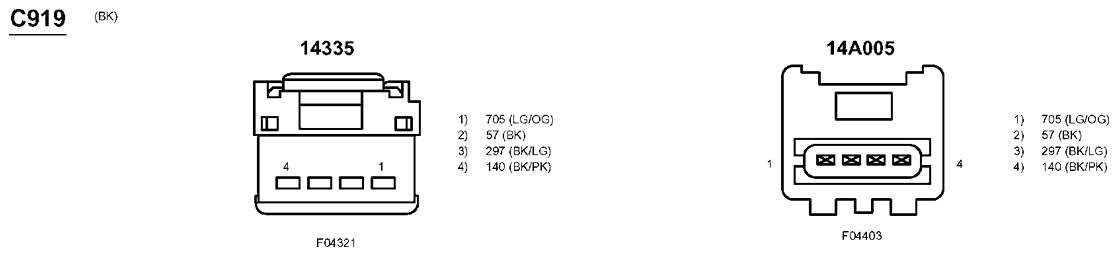

Fig 214: Inline Connector End View (C919)

G07835079

Courtesy of FORD MOTOR CO.

Fig 215: Roof Opening Panel Motor Assembly Connector End View (C920a)

G07835080

Courtesy of FORD MOTOR CO.

Fig 216: Roof Opening Panel Motor Assembly Connector End View (C920b)

G07835081

Courtesy of FORD MOTOR CO.

Fig 217: Roof Opening Panel Module Connector End View (C921a)

G07835082

Courtesy of FORD MOTOR CO.

Fig 218: Roof Opening Panel Module Connector End View (C921b)

G07835083

Courtesy of FORD MOTOR CO.

Fig 219: Inline Connector End View (C922)

G07835084

Courtesy of FORD MOTOR CO.

Fig 220: Daytime Running Lamps (DRL) Relay Connector End View (C1000)

G07835085

Courtesy of FORD MOTOR CO.

Fig 221: Wiper High/Low Relay Connector End View (C1001)

G07835086

Courtesy of FORD MOTOR CO.

Fig 222: Wiper Run/Park Relay Connector End View (C1002)

G07835087

Courtesy of FORD MOTOR CO.

Fig 223: Fog Lamp Relay Connector End View (C1007)

G07835088

Courtesy of FORD MOTOR CO.

Fig 224: A/C Clutch Relay Connector End View (C1008)

G07835089

Courtesy of FORD MOTOR CO.

Fig 225: PCM Power Relay Connector End View (C1016)

G07835090

Courtesy of FORD MOTOR CO.

Fig 226: Starter Relay Connector End View (C1017)

G07835091

Courtesy of FORD MOTOR CO.

Fig 227: Headlamp, Left Connector End View (C1021)

G07835092

Courtesy of FORD MOTOR CO.

Fig 228: Park/Turn Lamp, Left Front Connector End View (C1023)

G07835093

Courtesy of FORD MOTOR CO.

Fig 229: Engine Cooling Fan Resistor Connector End View (C1027)

G07835094

Courtesy of FORD MOTOR CO.

Fig 230: Engine Cooling Fan Brake Relay Connector End View (C1028)

G07835095

Courtesy of FORD MOTOR CO.

Fig 231: Battery Junction Box (BJB) Connector End View (C1035a)

G07835096

Courtesy of FORD MOTOR CO.

Fig 232: Battery Junction Box (BJB) Connector End View (C1035b)

G07835097

Courtesy of FORD MOTOR CO.

Fig 233: Headlamp, Right Connector End View (C1041)

G07835098

Courtesy of FORD MOTOR CO.

Fig 234: Park/Turn Lamp, Right Front Connector End View (C1043)

G07835099

Courtesy of FORD MOTOR CO.

Fig 235: Fuel Pump Relay Connector End View (C1051)

G07835100

Courtesy of FORD MOTOR CO.

Fig 236: Engine Cooling Fan Relay Connector End View (C1055)

G07835101

Courtesy of FORD MOTOR CO.

Fig 237: High Speed Fan Control Relay Connector End View (C1056)

G07835102

Courtesy of FORD MOTOR CO.

Fig 238: Low Speed Fan Control Relay Connector End View (C1058)

G07835103

Courtesy of FORD MOTOR CO.

Fig 239: Engine Coolant Temperature (ECT) Sender Connector End View (C1061)

G07835104

Courtesy of FORD MOTOR CO.

Fig 240: Dual Pressure Switch Connector End View (C1062)

G07835105

Courtesy of FORD MOTOR CO.

Fig 241: Engine Coolant Temperature (ECT) Sensor Connector End View (C1064)

G07835106

Courtesy of FORD MOTOR CO.

Fig 242: Ignition Coil Connector End View (C1065)

G07835107

Courtesy of FORD MOTOR CO.

Fig 243: Idle Air Control (IAC) Valve Connector End View (C1066)

G07835108

Courtesy of FORD MOTOR CO.

Fig 244: Differential Pressure Feedback EGR (DPFE) Sensor Connector End View (C1068)

G07835109

Courtesy of FORD MOTOR CO.

Fig 245: Low Coolant Level Switch Connector End View (C1069)

G07835110

Courtesy of FORD MOTOR CO.

Fig 246: EGR Vacuum Regulator Solenoid Connector End View (C1072)

G07835111

Courtesy of FORD MOTOR CO.

Fig 247: Injector Pressure Sensor Connector End View (C1073)

G07835112

Courtesy of FORD MOTOR CO.

Fig 248: Engine Cooling Fan Motor 1 Connector End View (C1074)

G07835113

Courtesy of FORD MOTOR CO.

Fig 249: Engine Cooling Fan Motor 2 Connector End View (C1077)

G07835114

Courtesy of FORD MOTOR CO.

Fig 250: Rear Window Defrost Relay 2 Connector End View (C1099)

G07835115

Courtesy of FORD MOTOR CO.

Fig 251: Battery Connector End View (C1100a)

G07835116

Courtesy of FORD MOTOR CO.

Fig 252: Battery Connector End View (C1100b)

G07835117

Courtesy of FORD MOTOR CO.

Fig 253: Generator Connector End View (C1104)

G07835118

Courtesy of FORD MOTOR CO.

Fig 254: Rear Window Wiper/Washer Switch Connector End View (C2000)

G07835119

Courtesy of FORD MOTOR CO.

Fig 255: PRNDL Illumination Lamp Connector End View (C2002)

G07835120

Courtesy of FORD MOTOR CO.

Fig 256: Adjustable Pedal Motor Connector End View (C2003)

G07835121

Courtesy of FORD MOTOR CO.

Fig 257: Front Blower Motor Connector End View (C2004)

G07835122

Courtesy of FORD MOTOR CO.

Fig 258: Flexible Fuel Sensor Module Connector End View (C2005)

G07835123

Courtesy of FORD MOTOR CO.

Fig 259: Front Blower Motor Connector End View (C2006)

G07835124

Courtesy of FORD MOTOR CO.

Fig 260: Brake Shift Interlock Connector End View (C2008)

G07835125

Courtesy of FORD MOTOR CO.

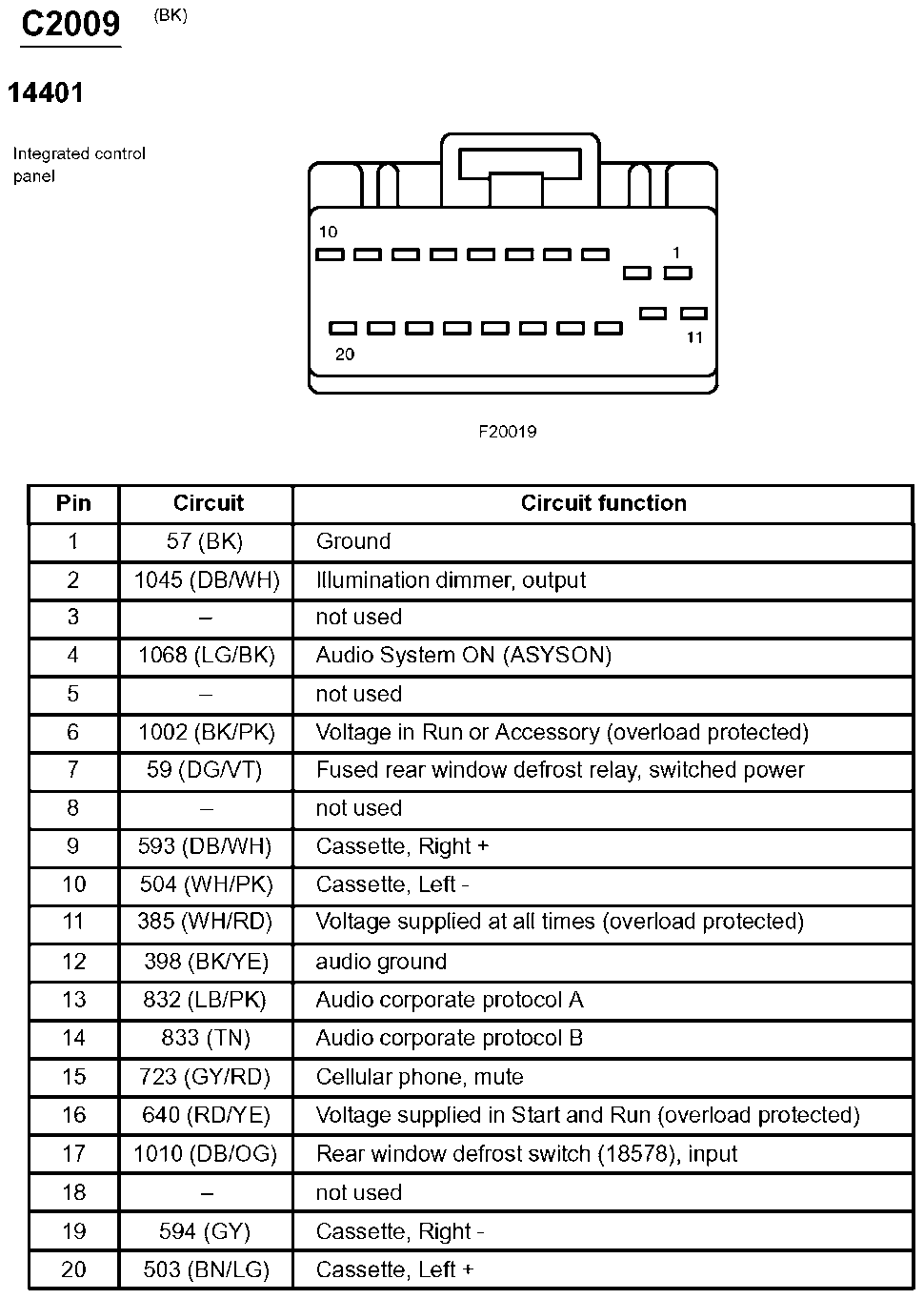

Fig 261: Integrated Control Panel Connector End View (C2009)

G07835126

Courtesy of FORD MOTOR CO.

Fig 262: Blower Motor Relay Connector End View (C2017)

G07835127

Courtesy of FORD MOTOR CO.

Fig 263: Rear Window Defrost Relay 1 Connector End View (C2021)

G07835128

Courtesy of FORD MOTOR CO.

Fig 264: Electronic Flasher Module Connector End View (C2027)

G07835129

Courtesy of FORD MOTOR CO.

Fig 265: Accessory Relay Connector End View (C2050)

G07835130

Courtesy of FORD MOTOR CO.

Fig 266: One-Touch Window Relay Connector End View (C2051)

G07835131

Courtesy of FORD MOTOR CO.

Fig 267: Liftgate Unlock Relay Connector End View (C2052)

G07835132

Courtesy of FORD MOTOR CO.

Fig 268: Luggage Compartment Lid Release Relay Connector End View (C2053)

G07835133

Courtesy of FORD MOTOR CO.

Fig 269: In-Line Fuse Connector End View (C3171)

G07835134

Courtesy of FORD MOTOR CO.

Fig 270: Adjustable Pedal Switch Connector End View (C2089)

G07835135

Courtesy of FORD MOTOR CO.

Fig 271: High Mounted Stoplamp Connector End View (C3175)

G03777238

Courtesy of FORD MOTOR CO.
